NexusDrive Core 12 – 12 Nm Direct Drive Wheel Base, 21-Bit Encoder, Carbon-Wrapped Rotor, iRacing 360 Hz
Delivery expect 4-8 business days.
NexusDrive Core 12: overview
The NexusDrive Core 12 is a 12 Nm direct drive wheel base that hits the sweet spot between detail and strength for serious sim racing.
A 21-bit magnetic encoder and a fast processor read every movement, while a slanted-pole servo motor with a carbon-fibre-wrapped rotor stays smooth and cool. The latest force feedback algorithm and iRacing 360 Hz support give crisp, responsive feel.
Intelligent temperature control keeps output stable through long races, and ports for pedals, dash, shifter, handbrake and E-stop keep the setup tidy.
Who the nexusDrive Core 12 is for
Drivers who want proper direct drive:
- Beginners and experienced racers alike
- GT, rally and formula
- Desk or rig setups
Features in detail
12 Nm
Strong, detailed feedback.
21-bit encoder
2,097,152 PPR.
Carbon-wrapped rotor
Better cooling.
iRacing 360 Hz
Responsive FFB.

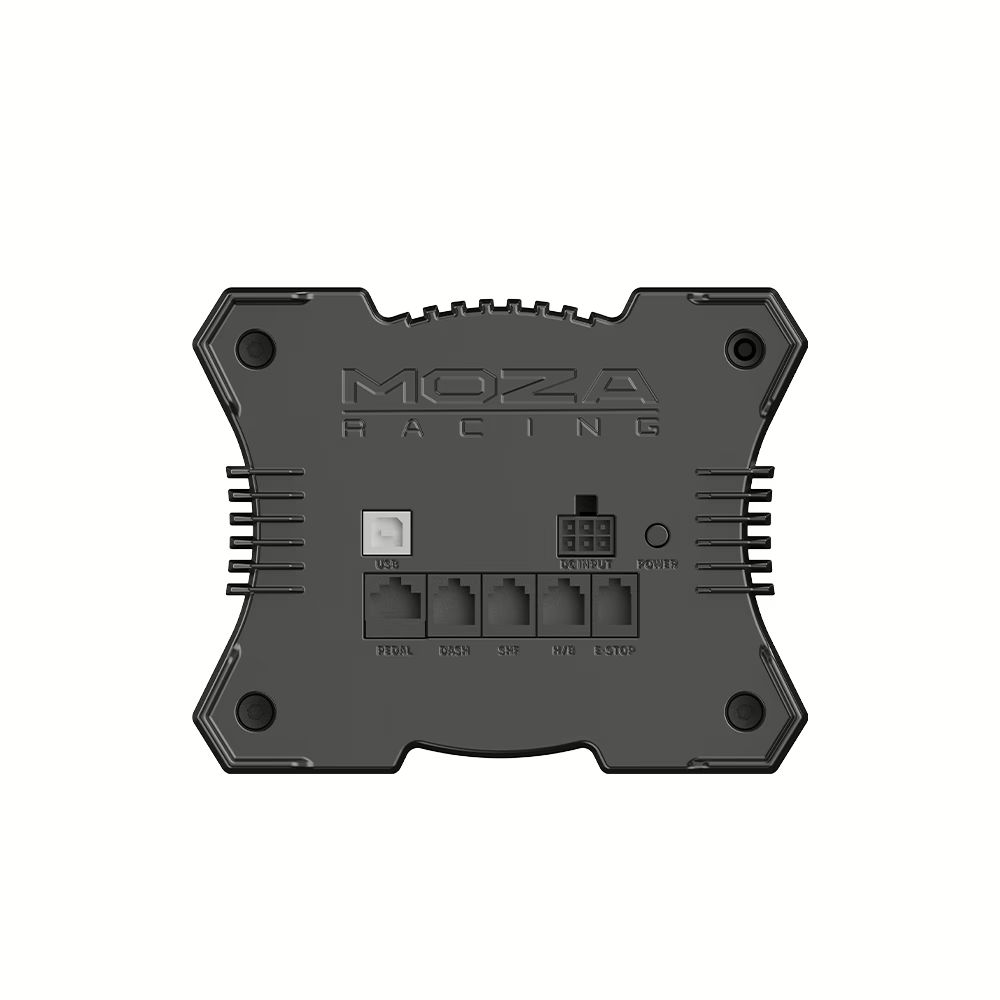

Ecosystem ports
Pedals, dash, shifter, handbrake, E-stop.
Compatibility
Platform: PC. Titles include iRacing, Assetto Corsa, Assetto Corsa Competizione, Le Mans Ultimate, the F1 series, Forza Motorsport, DiRT Rally 2.0 and EA SPORTS WRC.
Wheels: the NexusWheel range on the Core quick release.
Mounting: 4-hole bottom mount; optional table clamp and side mounting.
Building a sim racing or flight setup
Base, rim and pedals. In a modular setup the wheel base holds the force feedback motor, the rim clips on with a quick release and the pedals connect to the base or by USB. Rims and pedals must suit your base, and the base decides which platforms are supported.
Direct drive. Direct drive bases attach the rim straight to the motor for the most detailed and strongest feedback. They need a rigid cockpit or a strong desk mount.
Load cell pedals. A load cell brake measures pressure, not travel, like a real car. It is the single upgrade that improves lap-time consistency the most.
Setup and use
- Bolt the base to a rig or fit the table clamp.
- Fit a NexusWheel.
- Connect power, pedals and USB.
- Tune force feedback in the configuration software for PC and the mobile app.
Care and maintenance
Keep the vents clear; update the firmware regularly.
Specifications
| Torque | 12 Nm peak |
| Encoder | 21-bit magnetic |
| Rotation | 90–2700° |
| Peak power | 216 W |
| USB rate | 1000 Hz |
| Weight | 7.5 kg |
| Size | 225.9 x 156.7 x 124 mm |
| Housing | Aviation-grade aluminium |
What's in the box
- NexusDrive Core 12 wheel base
- Power adapter
- USB cable
- Toolkit
- User manual
Shipping, returns and warranty
Shipping
Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.
Returns
You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.
Warranty
Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.
Frequently asked questions
Is it good for beginners?
Yes, set the strength to taste.
Can I mount it on a desk?
Yes, with the optional table clamp.
Is a steering wheel included?
No, the base only; see our NexusDrive bundles.
How long does delivery take?
Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.
Can I return it if it is not right for me?
Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.
Is it covered by a warranty?
Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
See all our direct drive wheel bases or the 9 Nm Core 9 or the 16 Nm Core 16 Max, or browse the complete sim racing range to build your rig.
