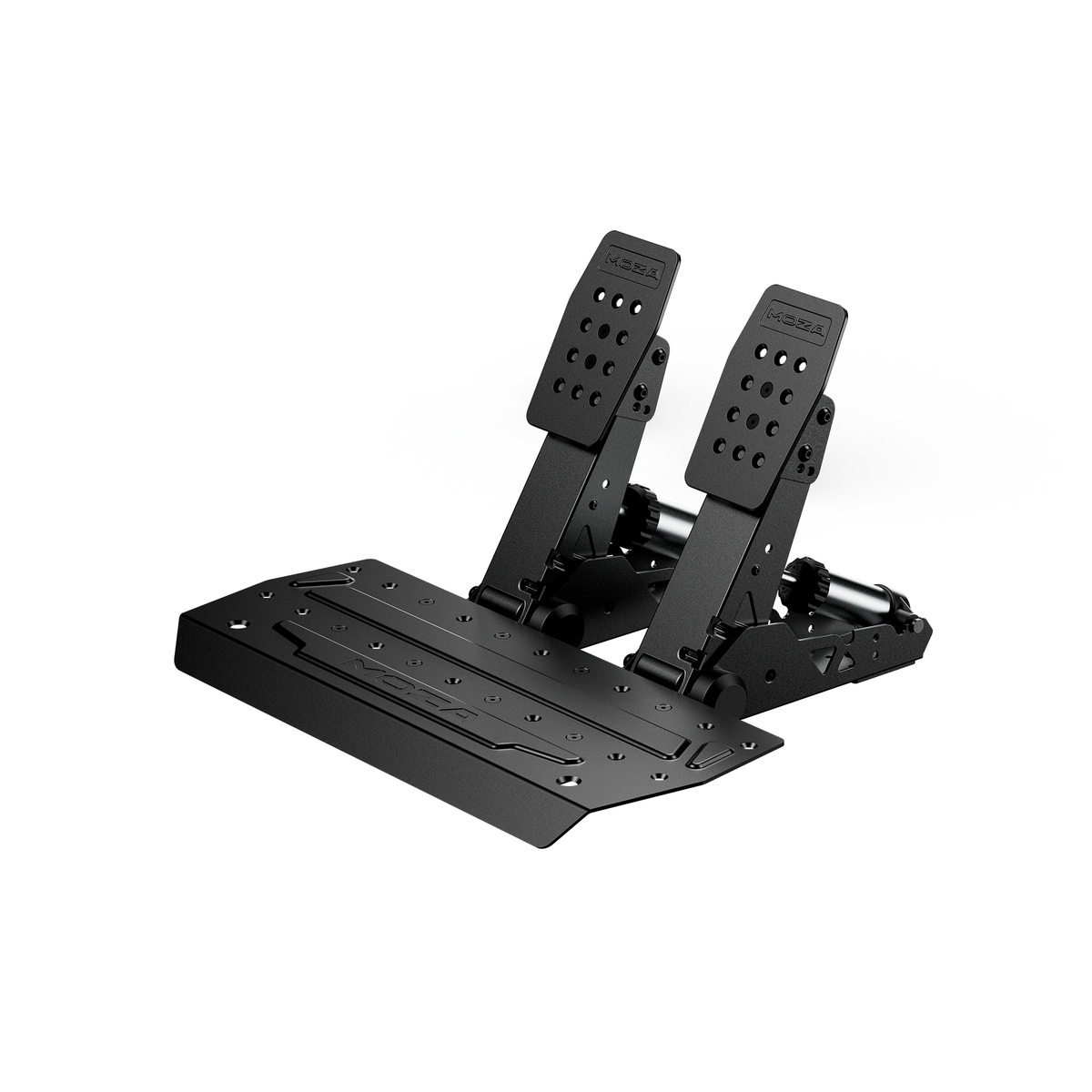

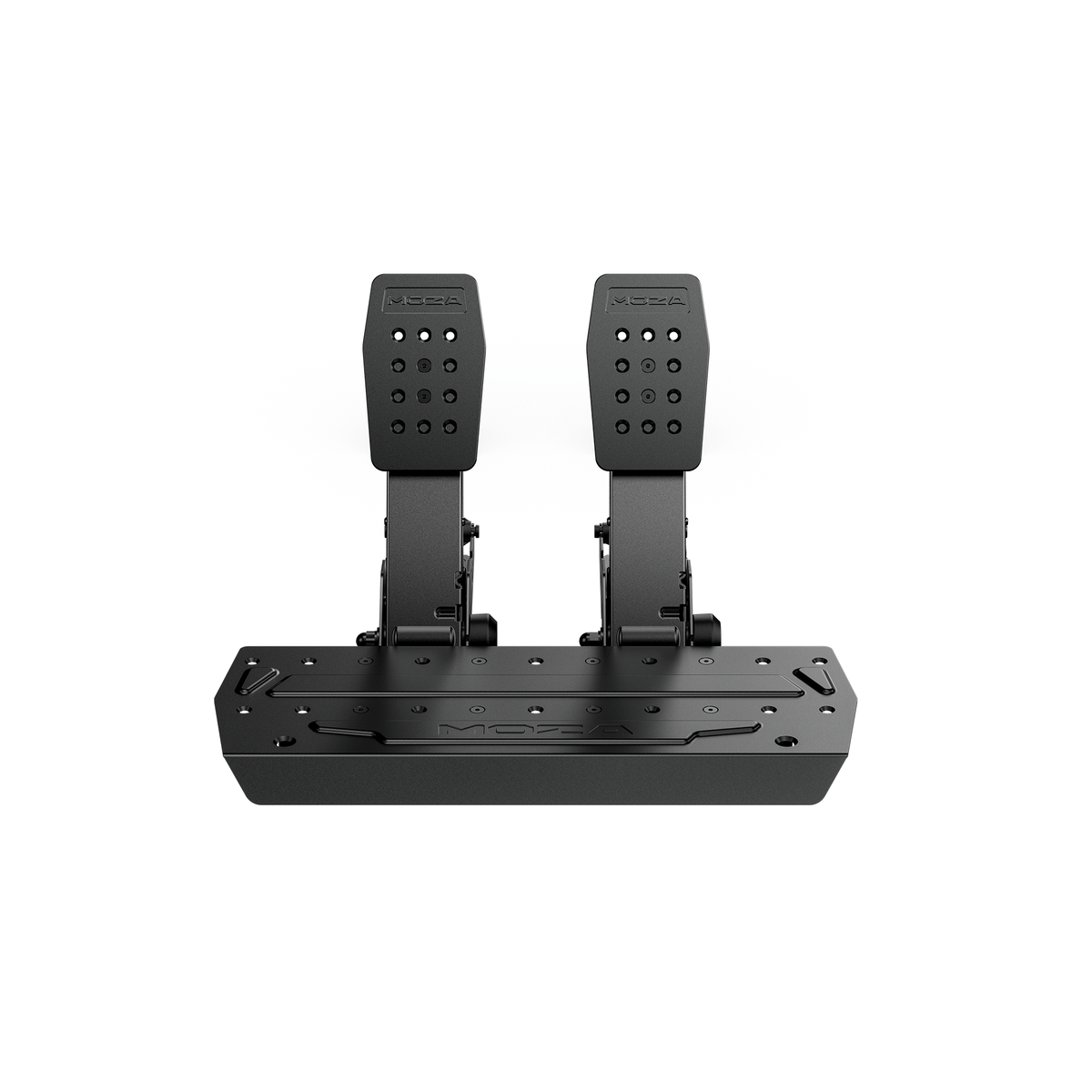

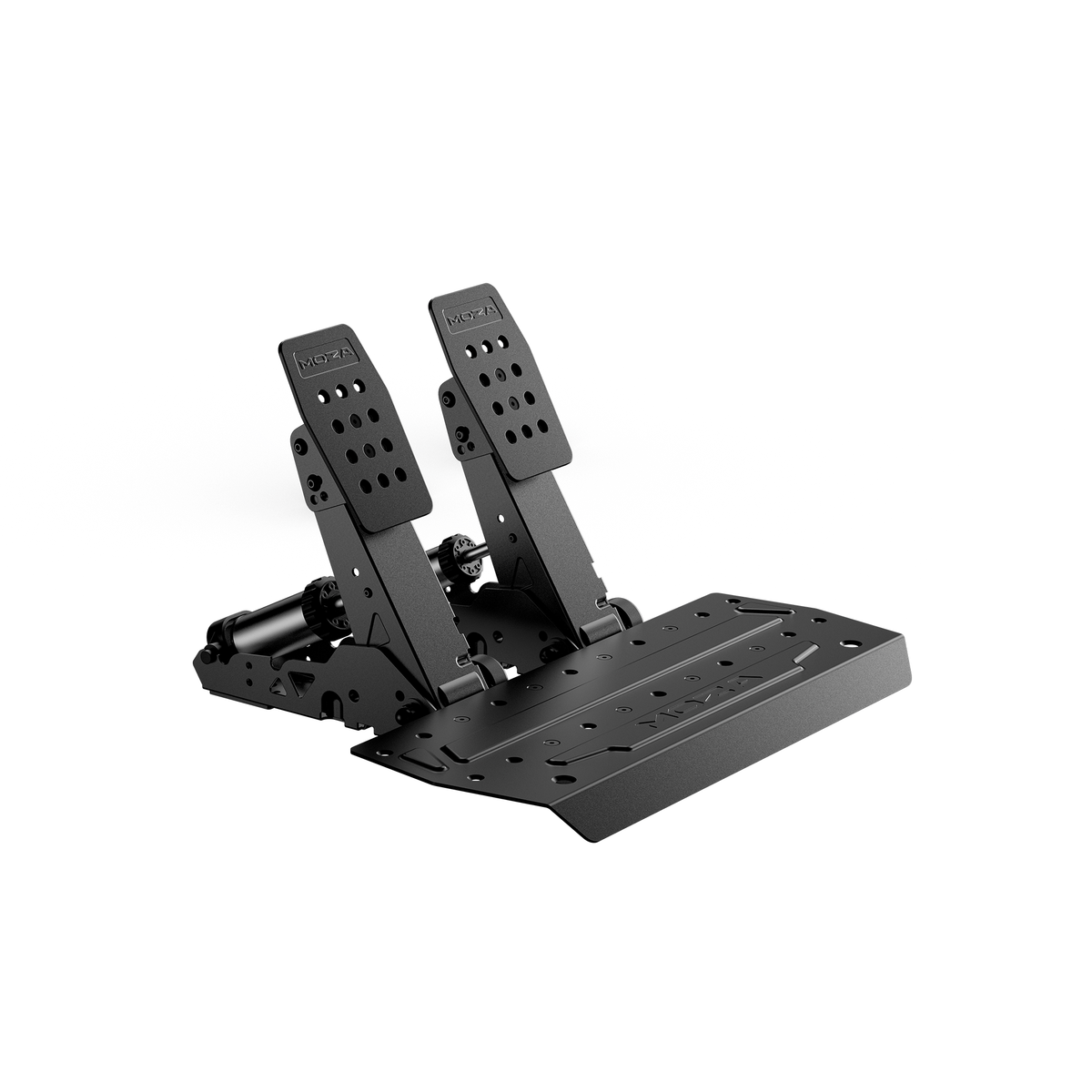

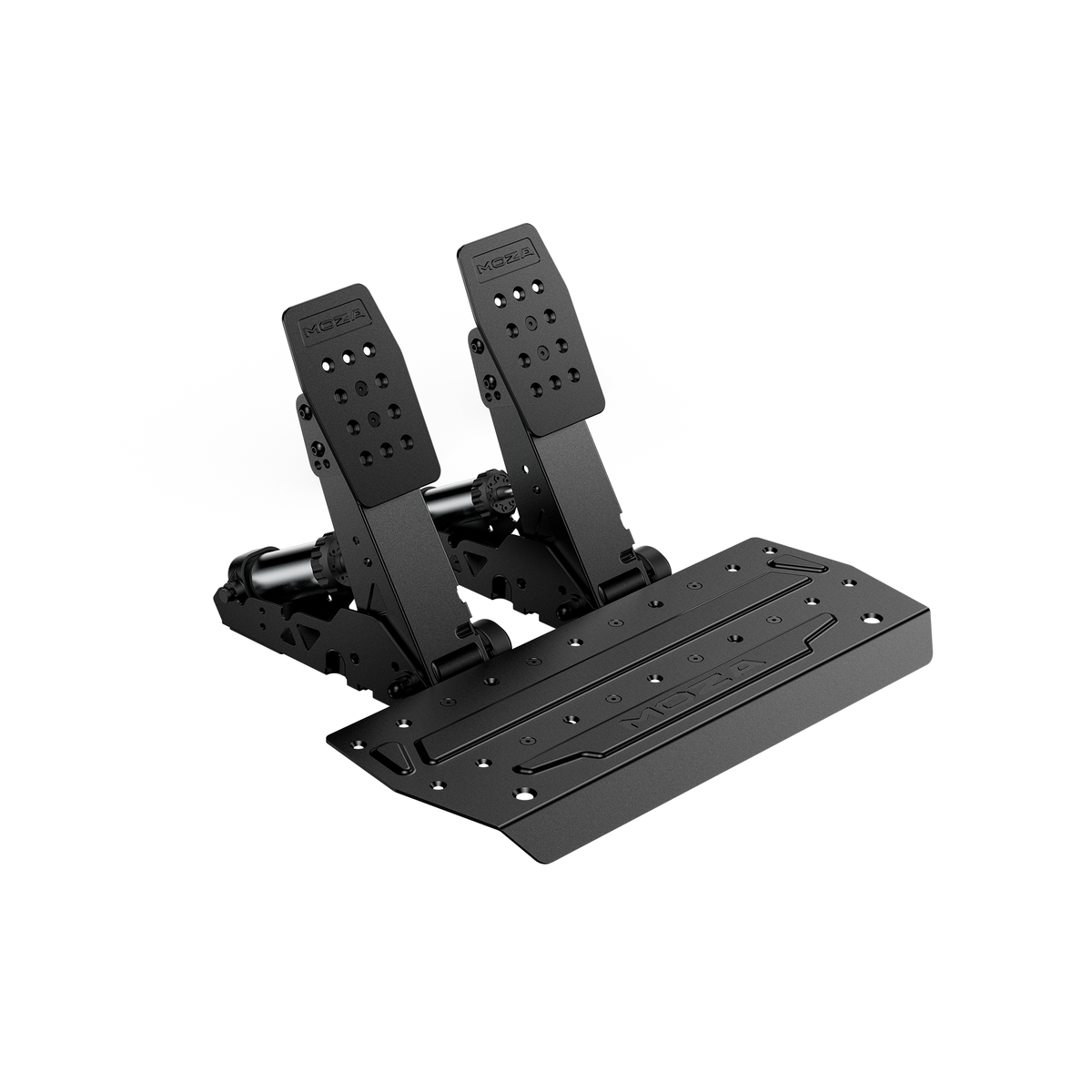

NexusPedal Core 2 – 100 kg Load Cell Brake & Throttle Pedals with Angle Sensor Fusion, Aluminium & Steel

NexusPedal Core 2: overview

NexusPedal Core 2 is a load cell pedal set (throttle and brake) built for competitive sim racing from CNC aerospace-grade aluminium and high-strength steel.

The brake combines a 100 kg load cell with a 15-bit angle sensor: the angle sensor handles the first part of the travel and the load cell the rest, for braking that is both controllable and consistent. Elastomers and springs give 25 brake-feel setups out of the box, and over 1,000 with the brake performance kit.

Face angle (10°/25°), spacing (±15 mm) and height (36 mm) adjust, brake feel changes by hand without tools, and sleeved steel shafts run smooth and quiet. It connects by USB and works with any brand of wheel base.

Who the nexusPedal Core 2 is for

Drivers moving to load cell:

• Competitive league racers
• Owners of any wheel base brand
• Desk and rig setups

Features in detail

100 kg load cell

Pressure-based braking.

Angle sensor fusion

Controllable and consistent.

25+ brake setups

1,000+ with the kit.

Aluminium and steel

Rigid and light.

Tool-free adjustment

Change feel by hand.

USB

Works with any brand.

Compatibility

Platform: PC by USB; works with any wheel base brand, and with NexusDrive Core bases.

Add-ons: NexusPedal Core 2 clutch, rear support bracket, brake performance kit, NexusPulse haptics.

Building a sim racing or flight setup

Base, rim and pedals. In a modular setup the wheel base holds the force feedback motor, the rim clips on with a quick release and the pedals connect to the base or by USB. Rims and pedals must suit your base, and the base decides which platforms are supported.

Direct drive. Direct drive bases attach the rim straight to the motor for the most detailed and strongest feedback. They need a rigid cockpit or a strong desk mount.

Load cell pedals. A load cell brake measures pressure, not travel, like a real car. It is the single upgrade that improves lap-time consistency the most.

Setup and use

1. Mount on a rig, a stand or the floor (anti-slip pads).
2. Connect by USB.
3. Set brake feel with the elastomers.
4. Tune curves and the brake engagement point in the configuration software for PC and the mobile app.

Care and maintenance

Keep the shafts clean; check bolts occasionally.

Specifications

What's in the box

• NexusPedal Core 2 (throttle + brake)
• Toolkit

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Does it work with other wheel bases?

Yes, it connects to the PC by USB.

Do I need a cockpit?

No, it can sit on the floor; add the rear bracket for stability.

Is a clutch included?

No, add the Core 2 clutch.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
