NexusMount Gen 2 Pedal Mount with Aluminium Profile Deck & Heel Rest – Above or Below Chassis, Tool-Free Angle

NexusMount Gen 2 pedal mount with profile deck: overview

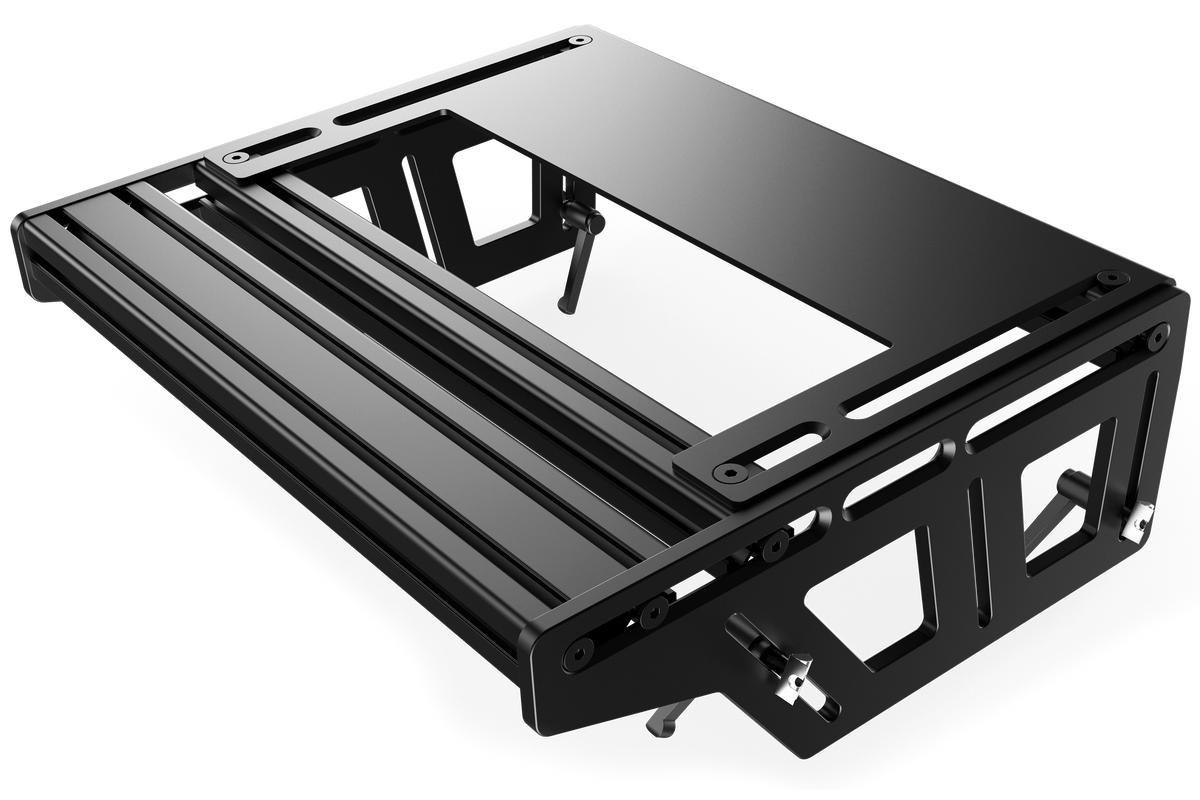

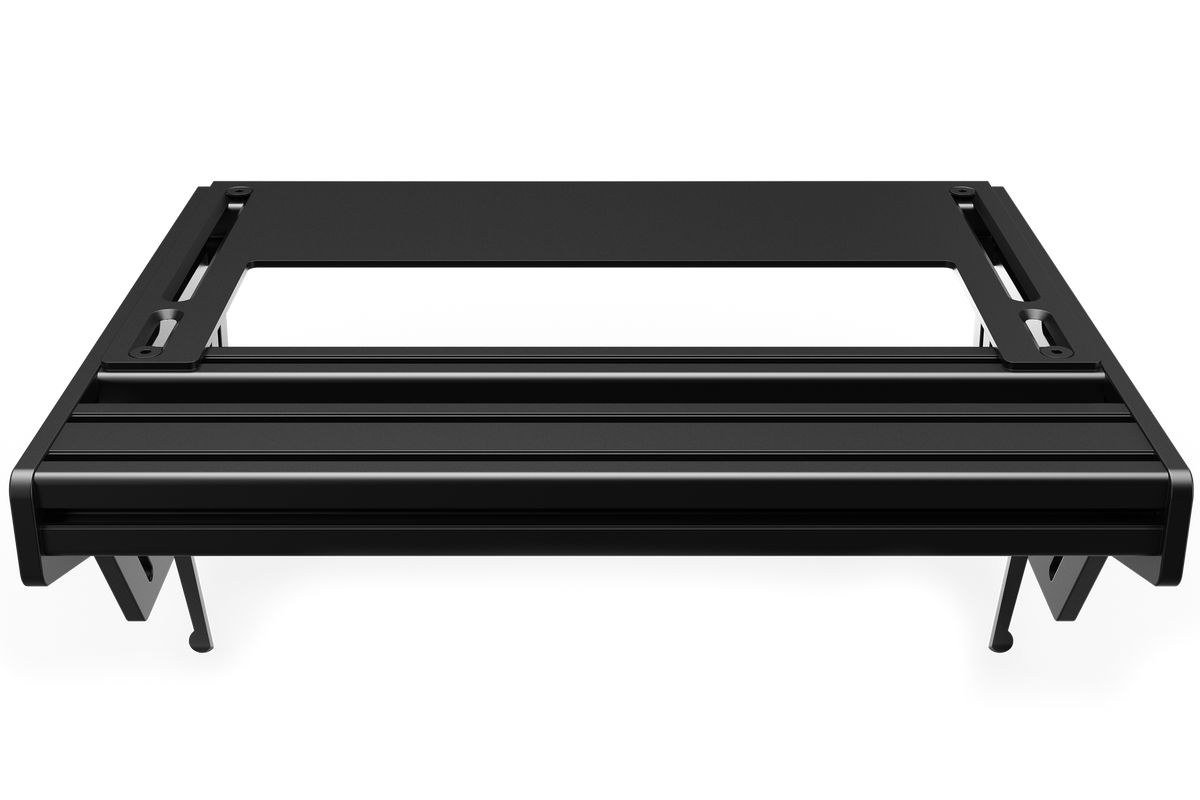

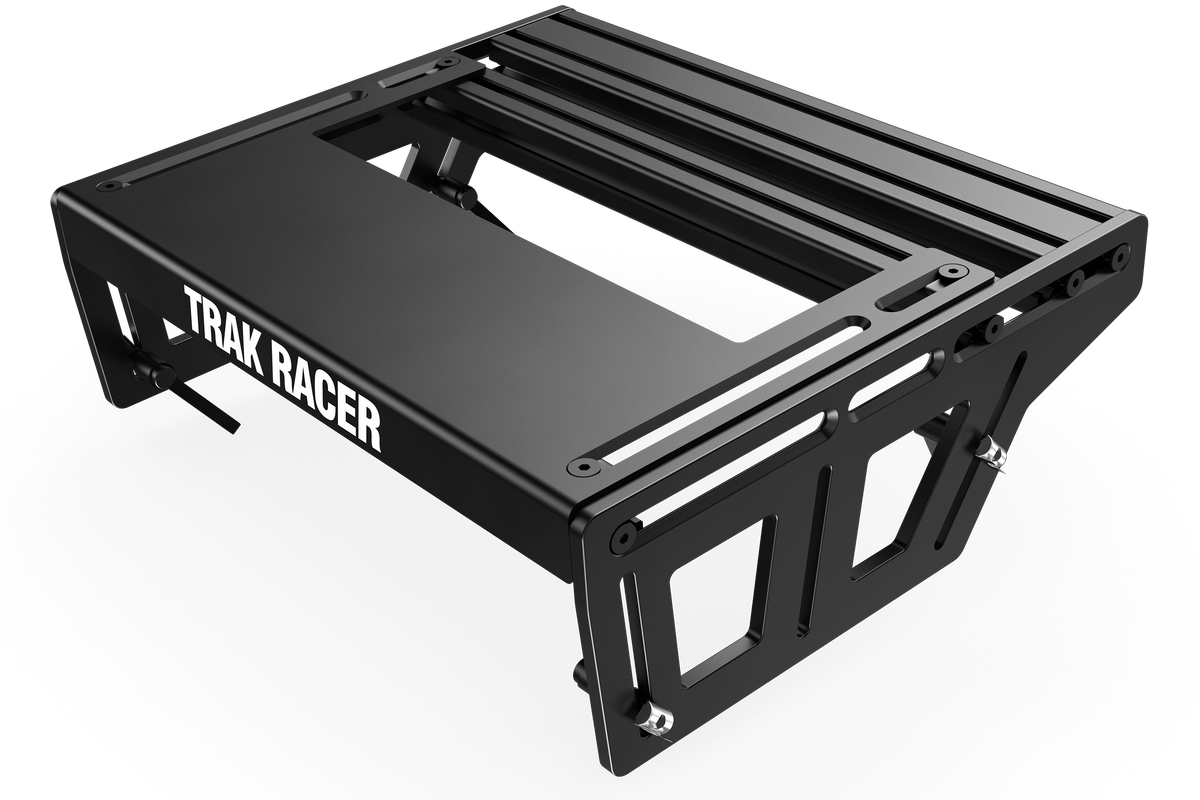

The NexusMount Gen 2 pedal mount holds your pedals on a modular aluminium profile deck, with infinite adjustment so high-end pedal sets sit exactly where you want them.

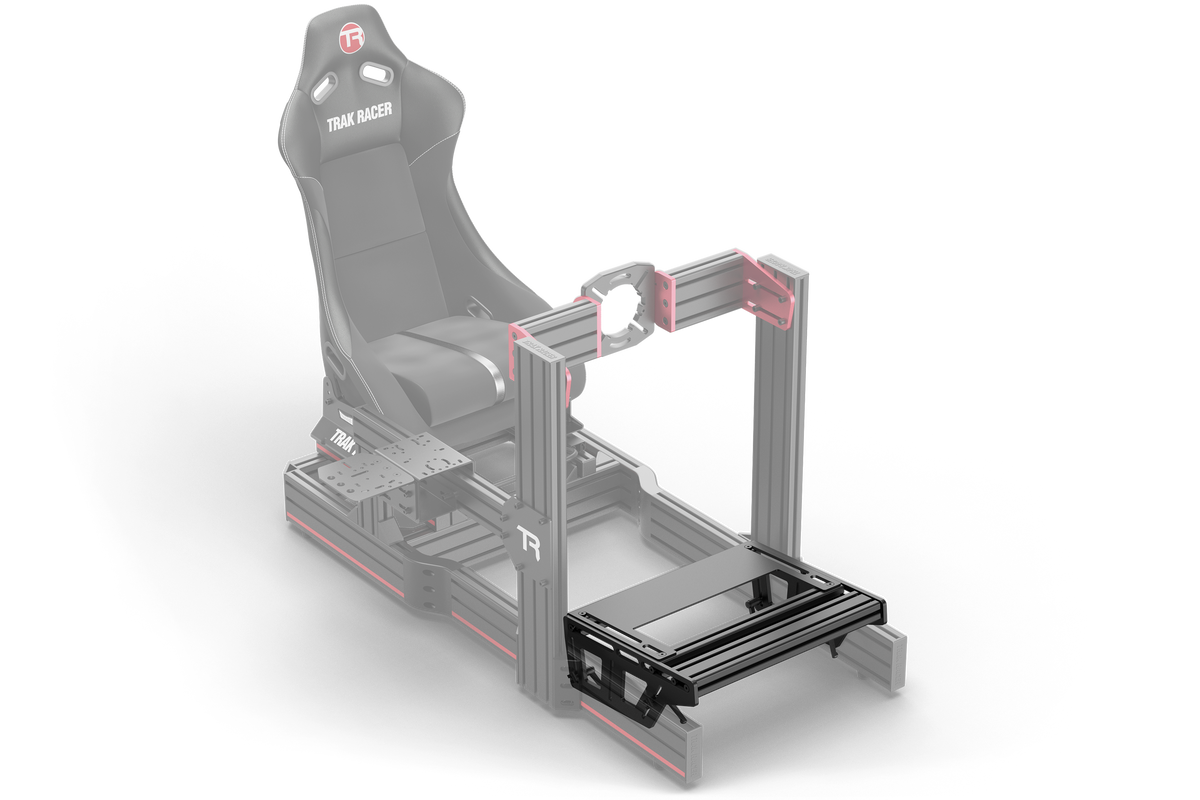

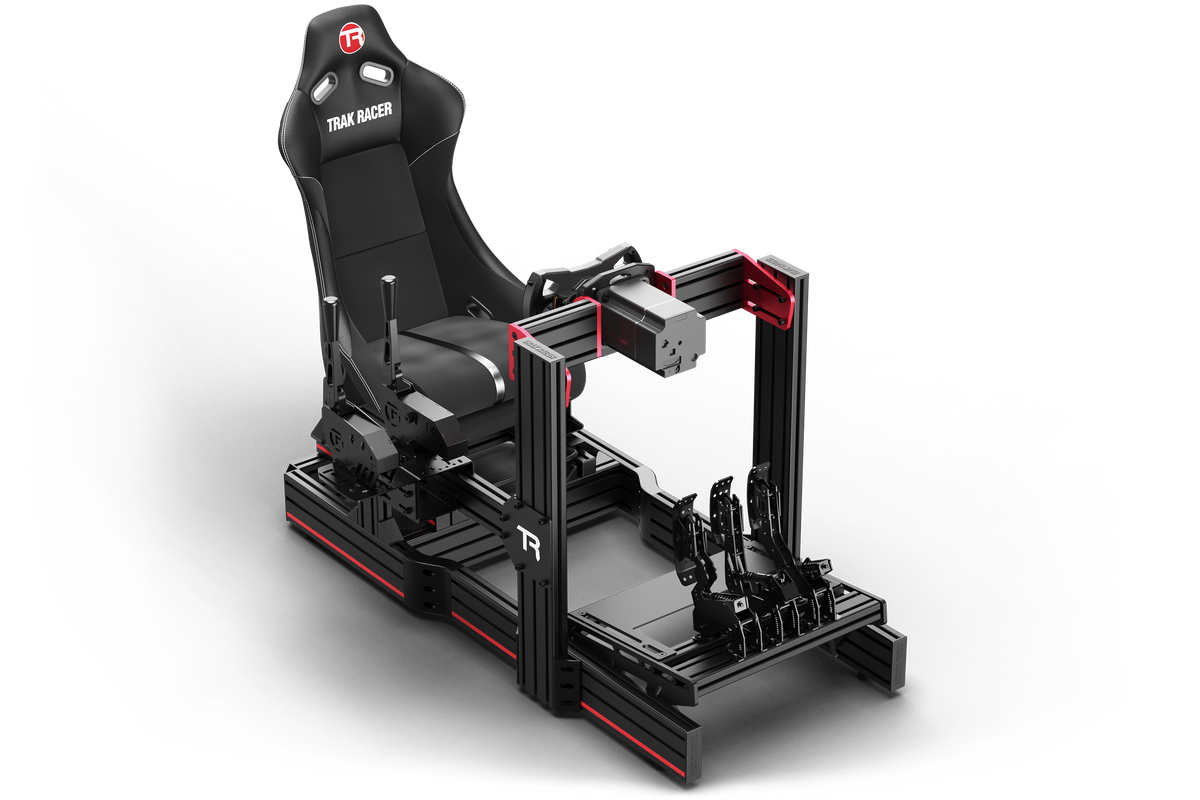

Mount it inside the chassis for a low, ground-level position or outside for an above-chassis position. The angle adjusts with a tool-free screw, and height, slide, deck profiles and the included heel rest all move.

Thick aluminium side plates keep brake and throttle feel consistent under hard use. Choose this version for maximum positioning freedom; the pre-drilled plate version suits drivers who want fixed holes.

Who the nexusMount Gen 2 pedal mount with profile deck is for

Owners of high-end pedals:

• Drivers who want a low or raised pedal position
• Load cell and hydraulic pedal users
• Flight simmers with rudder pedals

Features in detail

Above or below chassis

Low or raised pedal position.

Tool-free angle

Adjust with one screw.

Infinite adjustment

Angle, height, slide, deck and heel rest.

Aluminium side plates

No flex.

Heel rest included

Adjustable position.

Compatibility

Rigs: NexusRig Fortress, Titan and Vanguard (160 mm high chassis) and other aluminium profile rigs (check the dimensions).

Pedals: Fanatec CSL, CSL Elite, ClubSport V1–V3 and Podium; Asetek Initium, La Prima, Forte and Invicta; BJ Sim Racing / BJ Steel; Cammus LC100; Conspit CPP.Lite and CPP-EVO; Cube Controls SP01/SP02; Heusinkveld Ultimate, Ultimate+, Sprint and One; Logitech G25–G923, G Pro and RS; Meca; NexusPedal Core LC, Core 2, Core Lite and Booster Active; Simagic P500, P700, P1000, P1000i and P2000; Sim-Lab XP1; Simforge; Simgrade; SimJack; Simnet; Simsonn; Simtrecs; Simucube ActivePedal and Co-Pedal; Thrustmaster T-LCM, T3PA, T3PM and T3PGT; Turtle Beach VelocityOne; Venym Atrax; VNM V1 and Lite; VRS DirectForce Pro; plus our NexusPedal range.

Flight: Logitech rudder pedals, Thrustmaster TPR and T.Flight Rudder, Virpil ACE, RUDDO+.

Mounting on aluminium profile rigs

The 8 mm slot standard. Most modern sim rigs use 40 mm-based aluminium extrusion (40x40, 40x80, 40x160) with 8 mm slots. Mounts fix with M8 bolts and T-nuts that slide into the slot, so they can be moved and re-angled at any time.

Rigidity and access. Mount heavy or high-force devices (handbrakes, shifters, wheel bases) as close to a vertical upright or cross member as possible. Leave room to get in and out of the seat.

Tools. A set of hex keys (mainly 6 mm for M8) covers nearly every mount. Snug every bolt, test, then do a final tightening once the position is right.

Setup and use

1. Choose inside (low) or outside (raised) mounting.
2. Fit the side plates to the chassis.
3. Assemble the profile deck and heel rest.
4. Mount your pedals and set angle, height and slide.

Care and maintenance

Recheck bolts after the first sessions of hard braking.

Specifications

What's in the box

• 2 side plates
• 2 x 40x40 profiles
• 1 x 80x40 profile
• Heel rest
• Mounting hardware

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Which version should I choose?

This profile deck for maximum flexibility; the pre-drilled plate for fixed holes.

Will my pedals fit?

Most leading pedal sets fit; see the list.

Does it fit tube rigs?

No, aluminium profile rigs.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
