NexusMount Gen 2 Pedal Mount with Pre-Drilled Carbon Steel Pedal Plate – Above or Below Chassis, Tool-Free Angle

NexusMount Gen 2 pedal mount with pre-drilled plate: overview

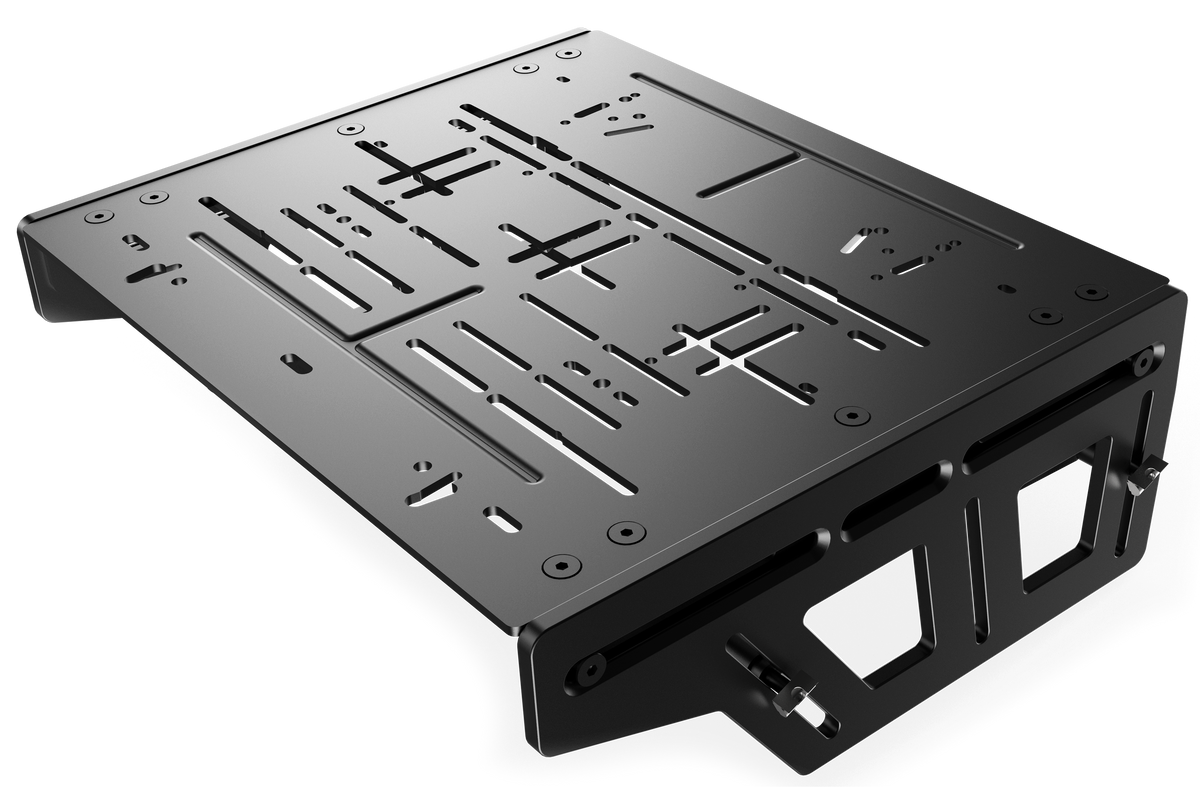

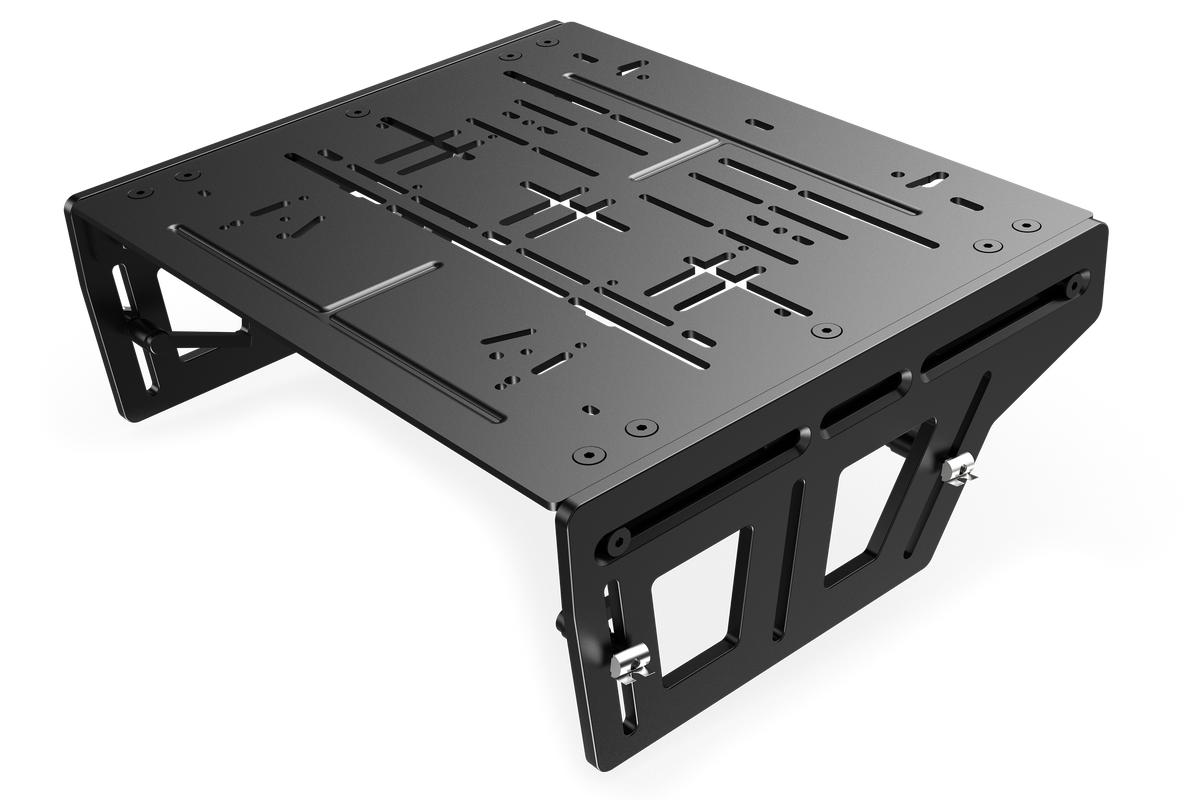

The NexusMount Gen 2 pedal mount comes with a thick carbon steel pedal plate that is pre-drilled for all major pedal brands, so you do not need a separate baseplate.

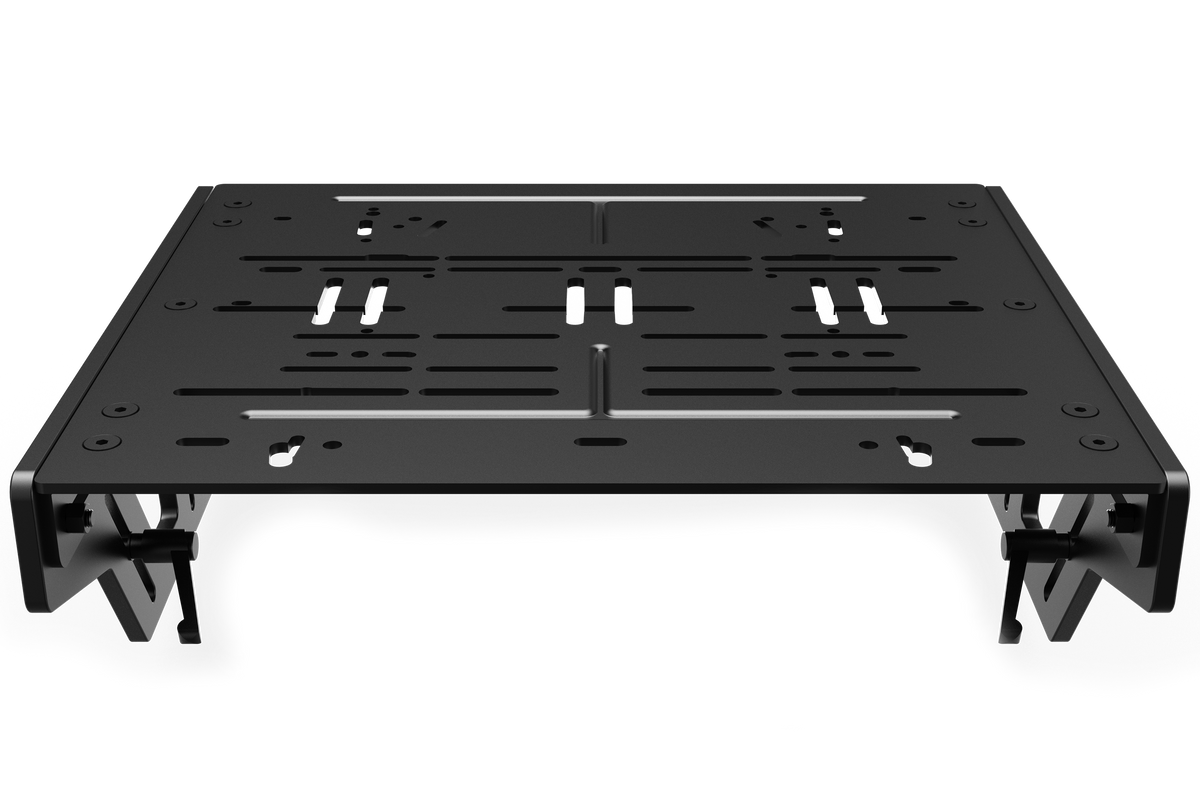

Slots allow left and right adjustment for pedals that need it, and the plate angles with a locking lever and slides forward and back.

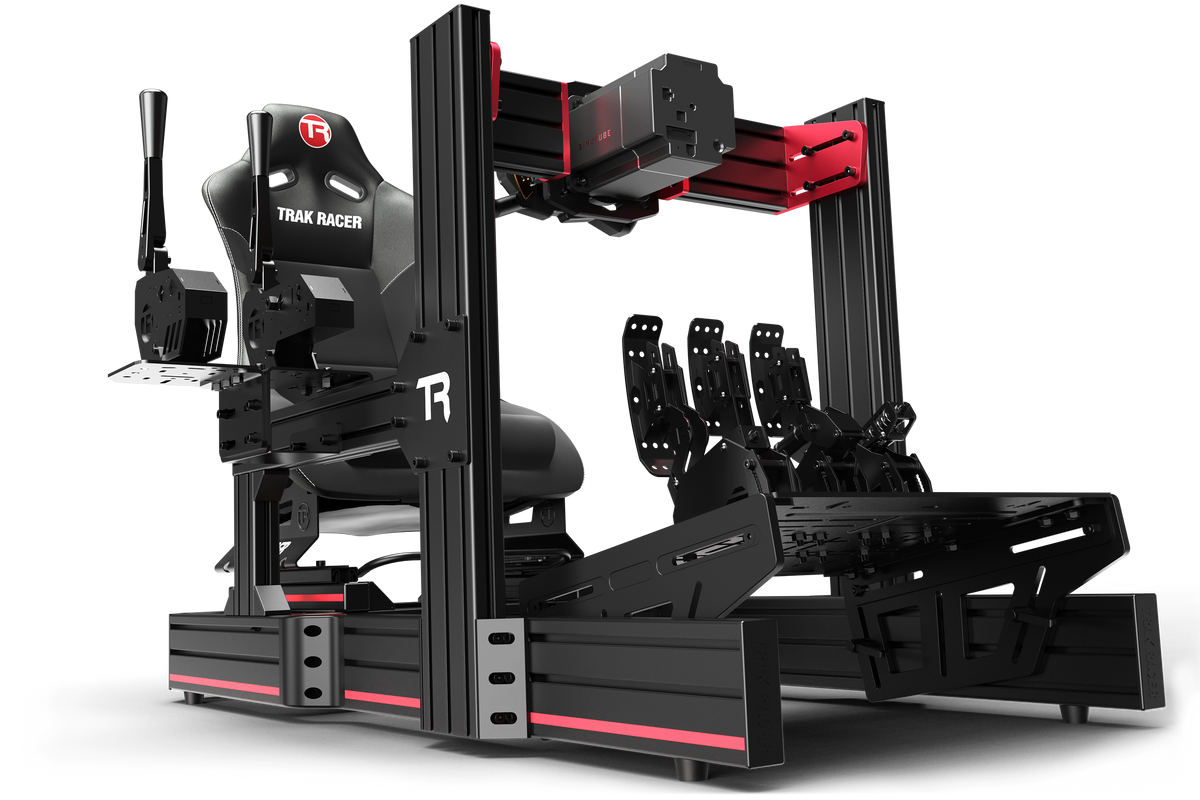

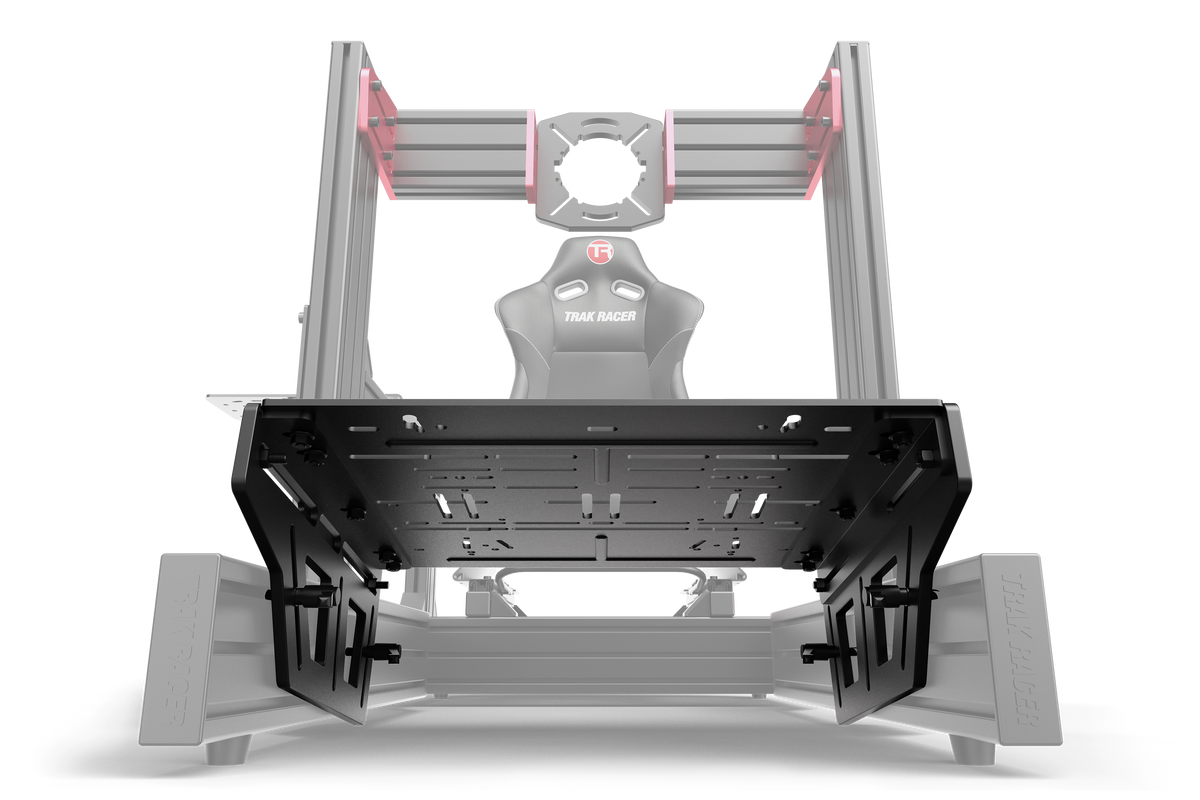

Mount it inside a 160 mm chassis for a ground-level position or outside for an above-chassis position. Tool-free angle adjustment makes changes quick.

Who the nexusMount Gen 2 pedal mount with pre-drilled plate is for

Drivers who want a rigid plug-and-play plate:

• Load cell and hydraulic pedal owners
• Shared rigs that change position often
• Flight simmers with rudder pedals

Features in detail

Pre-drilled plate

All major pedal brands; no baseplate needed.

Thick carbon steel

No flex.

Above or below chassis

Low or raised position.

Tool-free angle

Locking lever.

Slide adjustment

Forward and back.

Compatibility

Rigs: NexusRig Fortress, Titan and Vanguard (160 mm high chassis) and other aluminium profile rigs (check the dimensions).

Pedals: Fanatec CSL, CSL Elite, ClubSport V1–V3 and Podium; Asetek Initium, La Prima, Forte and Invicta; BJ Sim Racing / BJ Steel; Cammus LC100; Conspit CPP.Lite and CPP-EVO; Cube Controls SP01/SP02; Heusinkveld Ultimate, Ultimate+, Sprint and One; Logitech G25–G923, G Pro and RS; Meca; NexusPedal Core LC, Core 2, Core Lite and Booster Active; Simagic P500, P700, P1000, P1000i and P2000; Sim-Lab XP1; Simforge; Simgrade; SimJack; Simnet; Simsonn; Simtrecs; Simucube ActivePedal and Co-Pedal; Thrustmaster T-LCM, T3PA, T3PM and T3PGT; Turtle Beach VelocityOne; Venym Atrax; VNM V1 and Lite; VRS DirectForce Pro; plus our NexusPedal range.

Flight: Logitech rudder pedals, Thrustmaster TPR and T.Flight Rudder, Virpil ACE, RUDDO+.

Mounting on aluminium profile rigs

The 8 mm slot standard. Most modern sim rigs use 40 mm-based aluminium extrusion (40x40, 40x80, 40x160) with 8 mm slots. Mounts fix with M8 bolts and T-nuts that slide into the slot, so they can be moved and re-angled at any time.

Rigidity and access. Mount heavy or high-force devices (handbrakes, shifters, wheel bases) as close to a vertical upright or cross member as possible. Leave room to get in and out of the seat.

Tools. A set of hex keys (mainly 6 mm for M8) covers nearly every mount. Snug every bolt, test, then do a final tightening once the position is right.

Setup and use

1. Choose inside (low) or outside (raised) mounting.
2. Fit the side plates to the chassis.
3. Bolt your pedals to the pre-drilled plate.
4. Set the angle with the lever and slide to your reach.

Care and maintenance

Recheck bolts after the first sessions of hard braking.

Specifications

What's in the box

• 2 side plates
• Pre-drilled pedal plate
• Mounting hardware

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Do I need a baseplate?

No, the plate replaces it.

Is it drilled for my pedals?

Yes, for all major brands, with slots for left/right adjustment.

Does it fit tube rigs?

No, aluminium profile rigs.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
