NexusDrive Elite Sport – 17 Nm Direct Drive Wheel Base, 22-Bit Encoder, Wireless Wheel Support

NexusDrive Elite Sport: overview

The NexusDrive Elite Sport is a 17 Nm direct drive wheel base with some of the most detailed, realistic force feedback available, from a brushless motor tuned for ultra-low torque ripple.

Ultra-low latency lets you feel a slide and catch it sooner, while a 22-bit absolute encoder, torque reconstruction and natural damping, inertia and friction filters keep the feel clean and precise.

Efficient electronics mean no noisy fan, a wireless receiver is built in for wireless wheels, and the precision quick release makes wheel changes easy. It works with all major PC racing titles, including iRacing, Assetto Corsa Competizione, Le Mans Ultimate, rFactor 2 and Automobilista 2.

Who the nexusDrive Elite Sport is for

Serious sim racers:

• Drivers moving up to direct drive
• GT, formula and rally on PC
• Rigs that need a quiet base

Features in detail

17 Nm

Strong, continuous torque.

22-bit encoder

Robotics-grade precision.

Ultra-low latency

Feel slides sooner.

Fanless

Quiet operation.

Wireless support

Built-in receiver.

Full metal case

CNC machined.

Compatibility

Platform: PC.

Mounting: front flange, 4 x M8 threaded holes on a 145 mm circle, 110 mm centring; fits our NexusMount front mounts and most direct drive front mounts.

Wheels: NexusWheel range and rims fitted with the Elite wheel-side quick release.

Building a sim racing or flight setup

Base, rim and pedals. In a modular setup the wheel base holds the force feedback motor, the rim clips on with a quick release and the pedals connect to the base or by USB. Rims and pedals must suit your base, and the base decides which platforms are supported.

Direct drive. Direct drive bases attach the rim straight to the motor for the most detailed and strongest feedback. They need a rigid cockpit or a strong desk mount.

Load cell pedals. A load cell brake measures pressure, not travel, like a real car. It is the single upgrade that improves lap-time consistency the most.

Setup and use

1. Front-mount the base to your rig.
2. Fit a wheel with the wheel-side quick release.
3. Connect power, the stop button and USB.
4. Install the configuration software and pick a game profile.

Care and maintenance

Keep the vents clear and the quick release clean; update the firmware from time to time.

Specifications

What's in the box

• NexusDrive Elite Sport wheel base
• Power supply and cables
• External stop button

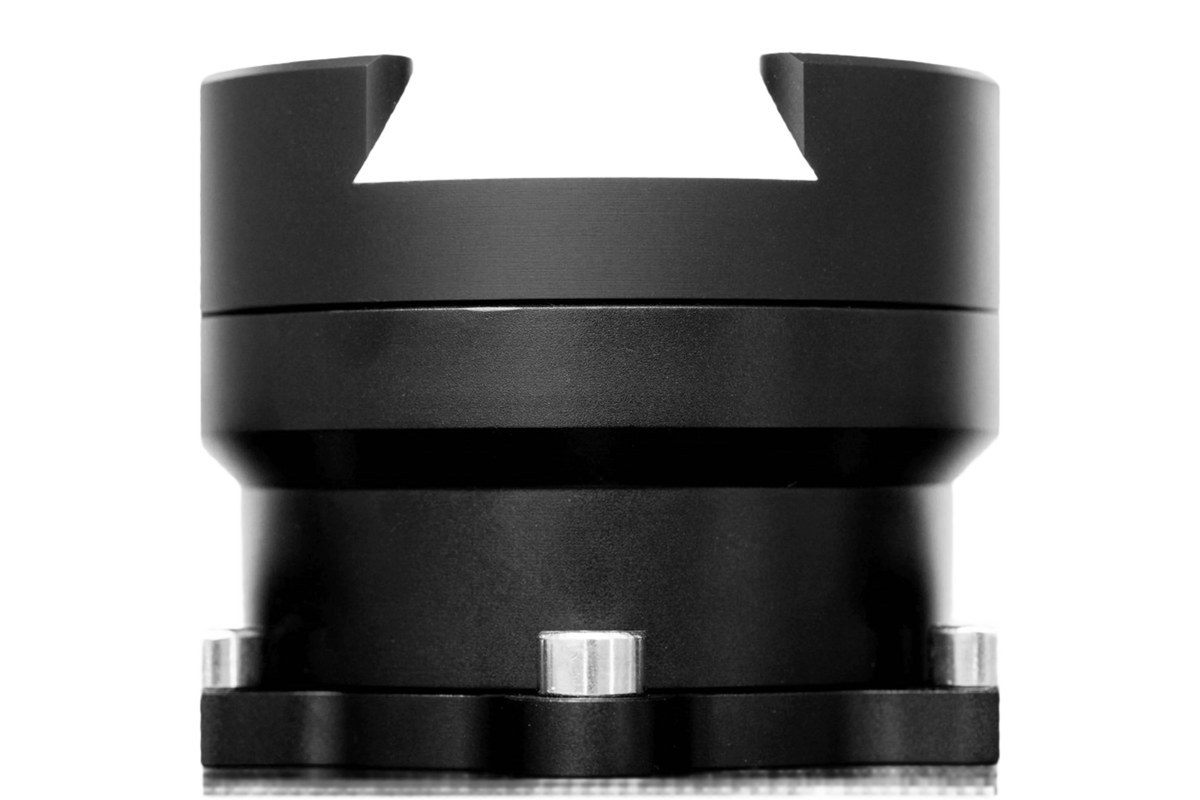

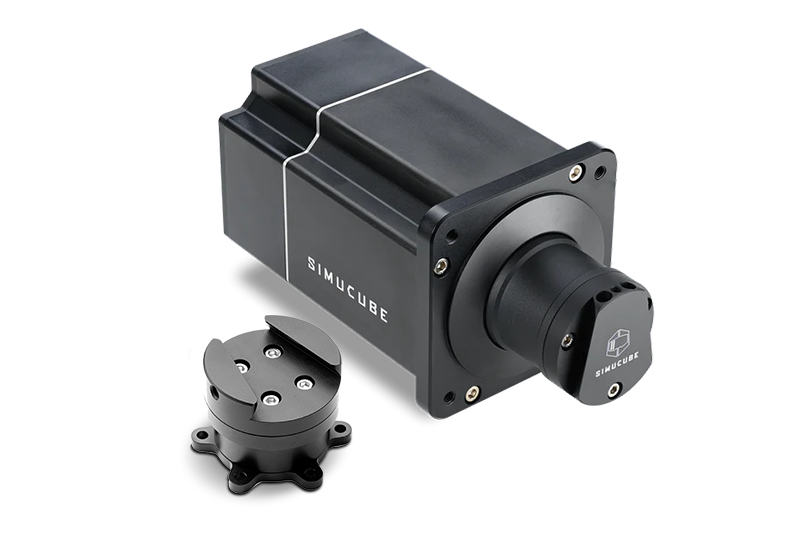

• Wheel-side quick release (with QR variant)

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

How strong is 17 Nm?

Plenty for GT and formula; most drivers run well below maximum.

Is a steering wheel included?

No, the base only.

Is the wheel-side quick release included?

Choose the variant with the wheel-side quick release, or buy the kit separately.

Does it support wireless wheels?

Yes, the wireless receiver is built in.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
