NexusRig Velocity Carbon – Full Carbon Fibre Formula & GT Sim Racing Cockpit

NexusRig Velocity Carbon: overview

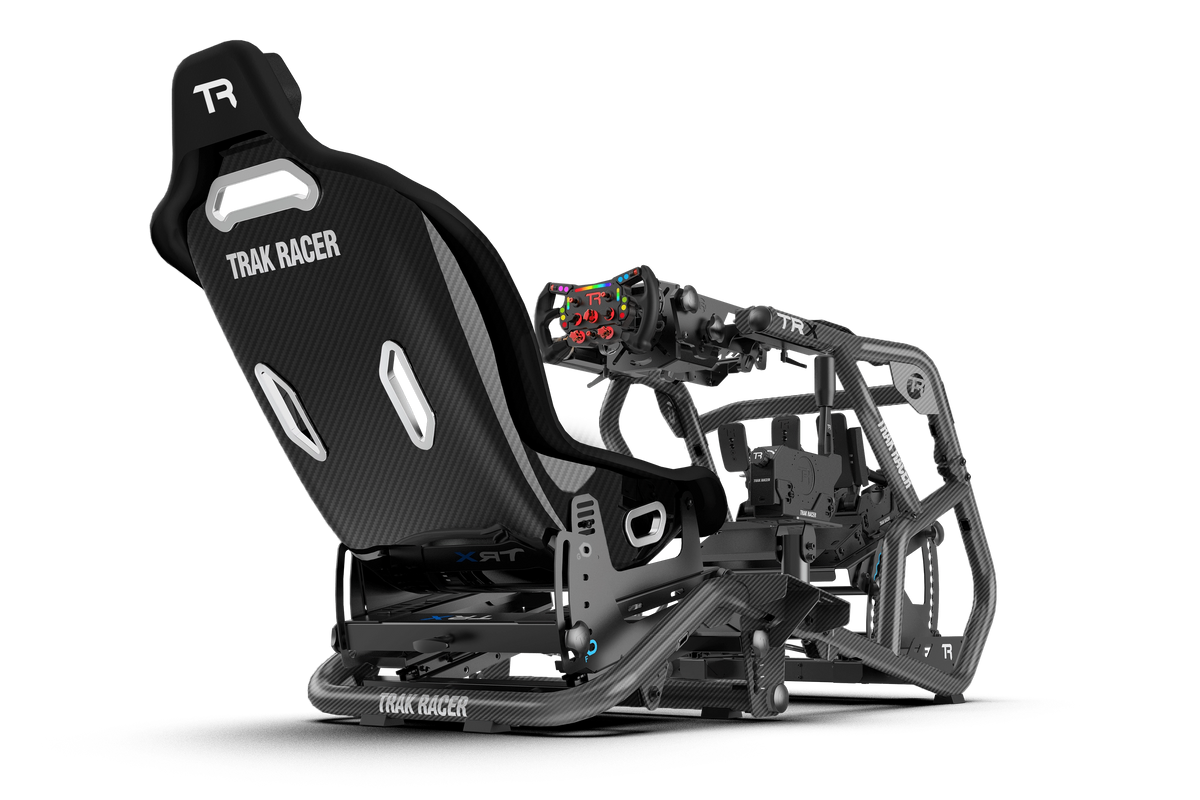

The NexusRig Velocity Carbon is the flagship of the Velocity family: a carbon fibre sim rig whose chassis is crafted from carbon fibre with precision-laid weave patterns and high-temperature resin curing. It is ultra-light, ultra-rigid and looks every bit like a professional race car structure.

Every joint and plate is reinforced with structural carbon laminate, creating a zero-flex mounting system for direct drive wheel bases and load cell pedals – no vibration, no flex, no drift – and sharper tactile feedback on every turn.

It keeps the Velocity's hybrid geometry and tool-free adjustment, so you can switch between formula and GT positions in minutes.

Who the nexusRig Velocity Carbon is for

Drivers who race formula and GT:

• Drivers who switch between single-seaters and GT cars
• Direct drive owners up to 30 Nm
• Load cell and hydraulic pedal users (180 kg braking without flex)
• Esports drivers and training centres
• Homes where the rig is a design piece

Features in detail

Full carbon fibre chassis

Precision-laid weave and high-temperature resin curing for an ultra-light, ultra-rigid, race-ready structure.

Zero-flex mounting

Joints and plates reinforced with structural carbon laminate for absolute consistency with direct drive and load cell pedals.

Enhanced feedback

The stiff structure transmits detail cleanly, so you feel more of every turn.

Formula to GT, tool-free

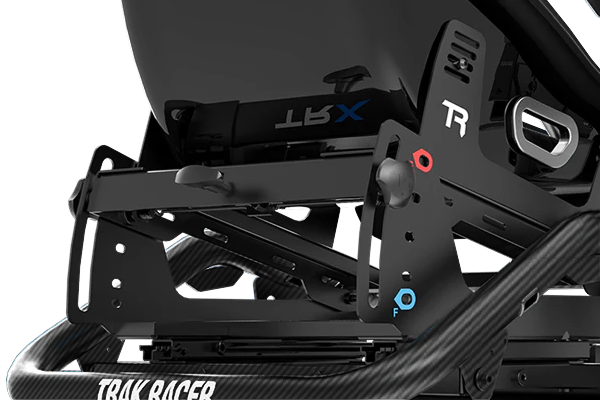

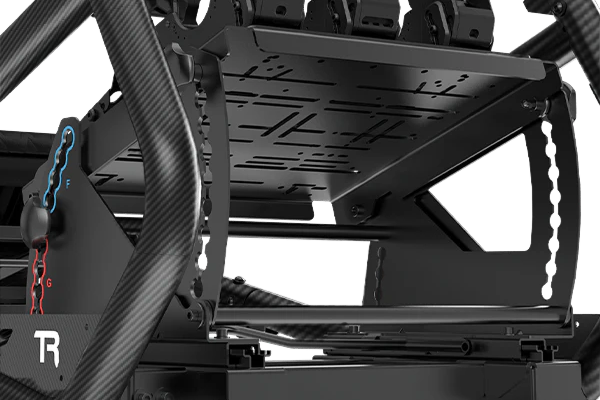

The Velocity's tool-free seat, wheel deck and pedal tray let you change position in minutes.

Motorsport aesthetics

Mirrors the look and feel of professional racing cars.

Compatibility

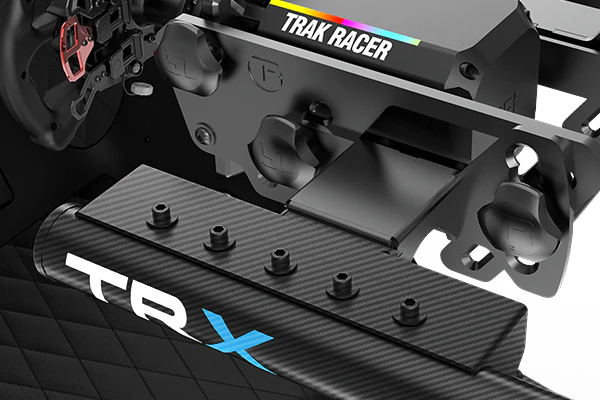

Wheel torque: up to 30 Nm. Three wheel mounting options cover most bases: a wheel plate, a front mount and a side mount.

Front mount: Simucube SC1/SC2/SC3 (Sport, Pro, Ultimate), Simagic Alpha, Alpha Mini and Ultimate, VRS DirectForce Pro (15/20 Nm), Fanatec Podium DD (without front plate), AccuForce V1/V2, Immsource ET3/ET5, Leo Bodnar / Kollmorgen AKM 52–54, Bodnar 53 series, Lenze MCS12, MiGe 130ST and Ricmotech Mini-Mite. Asetek Invicta, Forte and La Prima use the dedicated Asetek front mount.

Wheel deck: Asetek (with adaptor), AccuForce, Conspit Ares, Fanatec CSL Elite/ClubSport/ClubSport DD and DD+/Podium/CSL DD/GT DD Pro, Logitech G25 to G923, G PRO and RS50, MOZA R3 to R21, R21 Ultra and R25 Ultra, Nacon Revosim RS Pure, PXN, Simagic Alpha series (Alpha EVO with its side-mount kit), Thermaltake G6, Turtle Beach Velocity One Race, Thrustmaster T150 to T818 (with adaptor), VNM Elite, Supreme and Xtreme. Fanatec DD bases can also use the side mount with spacer plates.

Pedals: pre-drilled for the major brands – Asetek, Cammus, Conspit CPP, Cube Controls, Fanatec CSL Elite and ClubSport (incl. inverted), Heusinkveld Sprint/Ultimate/Pro, Logitech, Meca, MOZA CRP/SRP, Simagic P500/P1000/P2000, Simucube Co-Pedal and ActivePedal, SimJack, Sim-Lab, Simtrecs, Thrustmaster T-LCM/T3PA, Venym, VRS, VNM and more.

Shifters, handbrakes and flight controls: with optional mounts – Fanatec, Heusinkveld, MOZA, Simagic, Thrustmaster, VNM, Asetek, BDH, Logitech, Pro-Sim, Venym, Conspit; rudders and yokes from Thrustmaster, Logitech, Virpil, Honeycomb and Turtle Beach.

Choosing and building a sim rig

Rigidity first. A cockpit exists so the force your wheel base produces goes into your hands, not into a flexing frame. Direct drive bases need a stiff front mount; aluminium profile rigs (40 mm and 80 mm extrusion with 8 mm slots) are the stiffest and most adjustable, while steel tube rigs are lighter and quicker to assemble.

Driving position. GT position puts you upright with the pedals low; formula position reclines the seat and raises the pedals. Check whether the cockpit, seat bracket and pedal mount allow the position you want.

Plan the extras. Monitor stands, shifter and handbrake mounts, keyboard trays and PC shelves bolt onto most profile rigs. Planning them up front avoids drilling or re-assembling later.

Setup and use

1. Assemble the carbon chassis following the guide.
2. Fit your seat, pedals and wheel base.
3. Set formula or GT using the tool-free seat, pedal tray and wheel deck.
4. Tighten all fixings to the recommended torque – carbon structures should not be over-tightened.

Care and maintenance

Clean carbon surfaces with a soft damp cloth; avoid solvents and abrasive pads. Do not over-tighten bolts on carbon parts. Check fixings monthly.

Specifications

What's in the box

• NexusRig Velocity Carbon chassis with wheel mount, seat assembly and pedal mount
• Mounting hardware
• Seat, wheel, pedals and electronics not included

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

How is it different from the steel Velocity?

The chassis is full carbon fibre with carbon laminate reinforcement – lighter and even stiffer – while keeping the same hybrid adjustments.

Is it compatible with my wheel base?

Yes, it uses the Velocity mounting options; see the compatibility section.

Is a seat included?

No, choose one from our sim racing seats.

Is it suitable for direct drive?

Yes, the zero-flex mounting system is built for direct drive and load cell pedals.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.

See all our sim racing cockpits or the steel NexusRig Velocity, or browse the complete sim racing range to build your rig.
