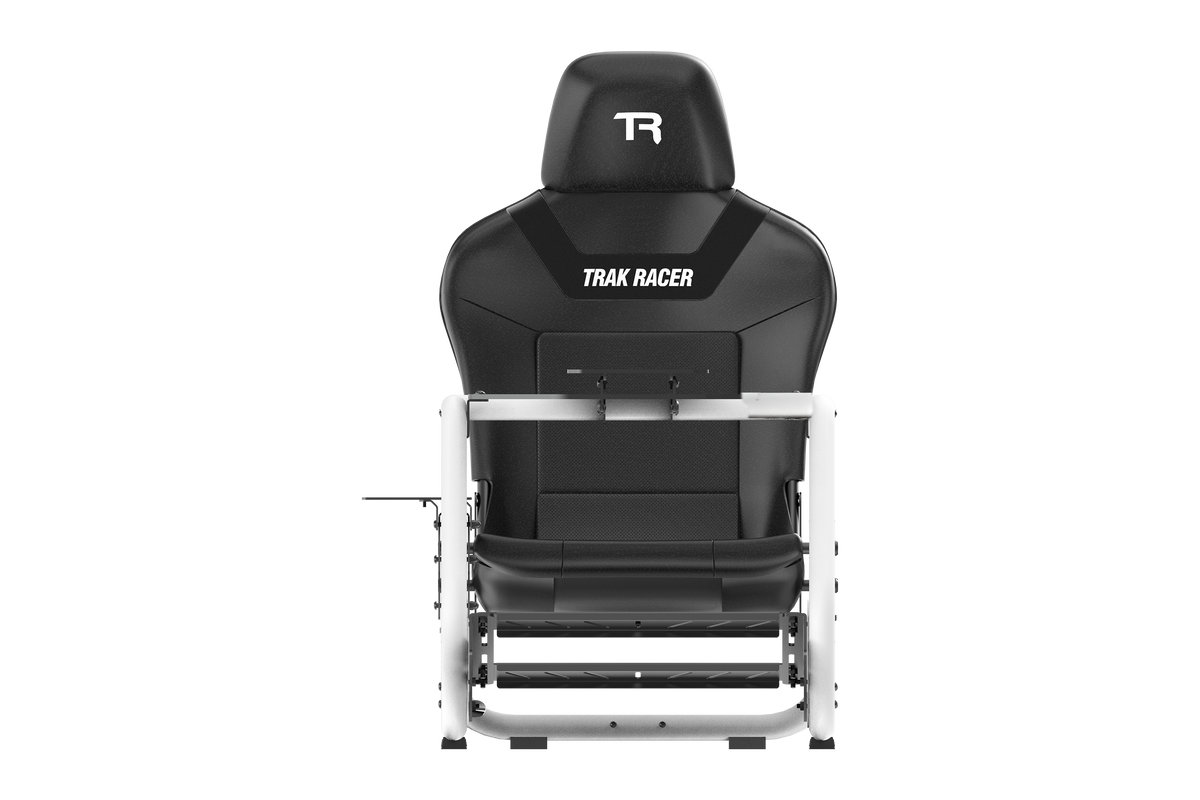

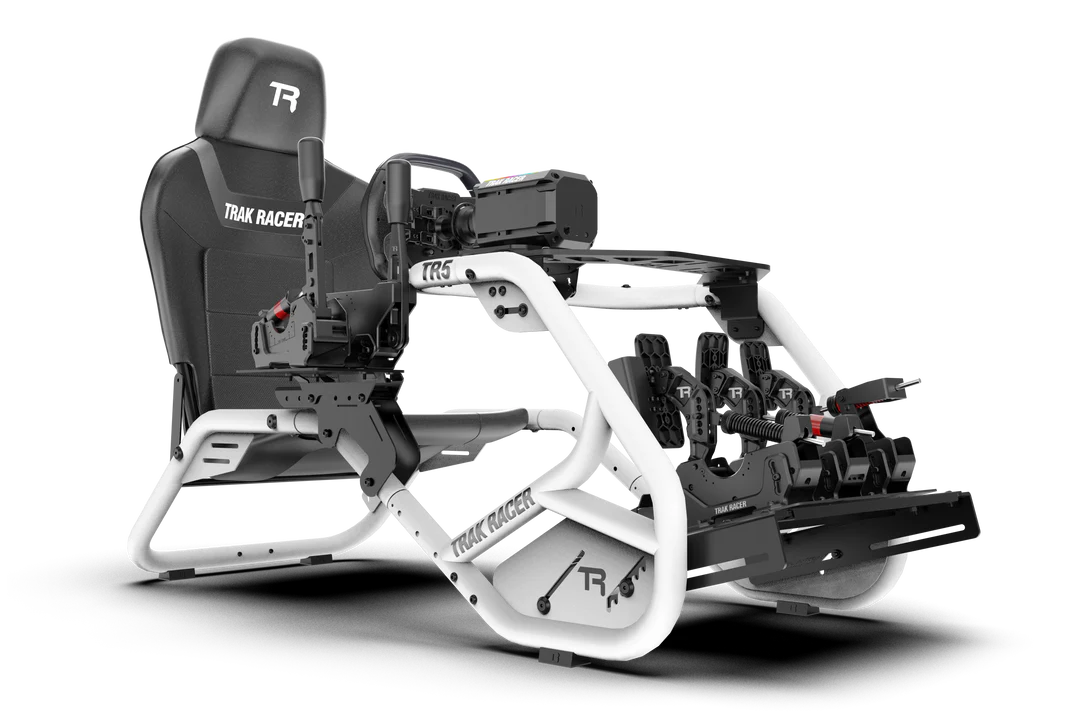

NexusRig Compact – Steel Sim Racing Cockpit with Seat, Reclined & Upright, Up to 25 Nm

NexusRig Compact: overview

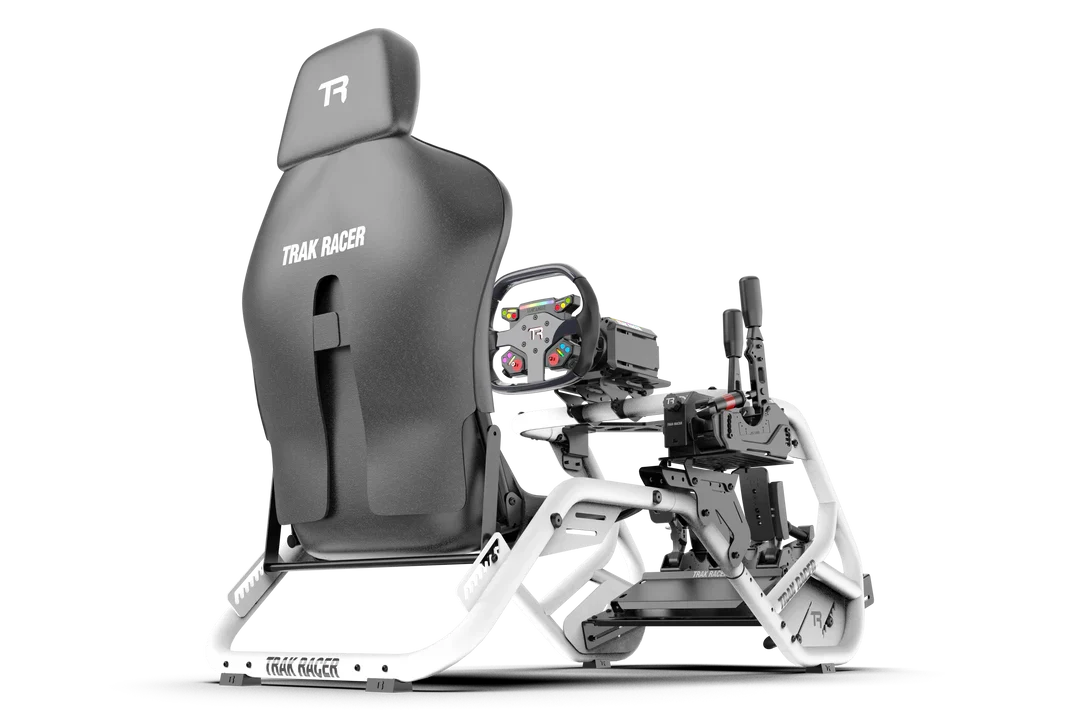

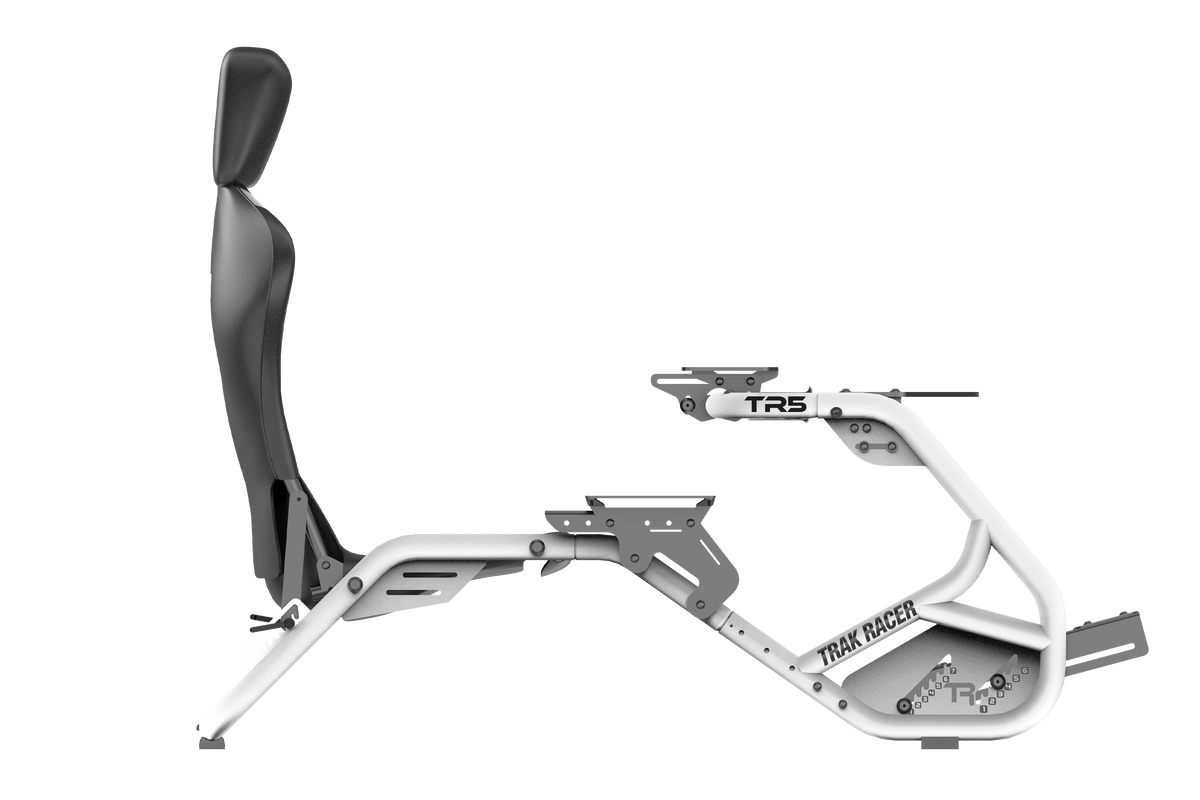

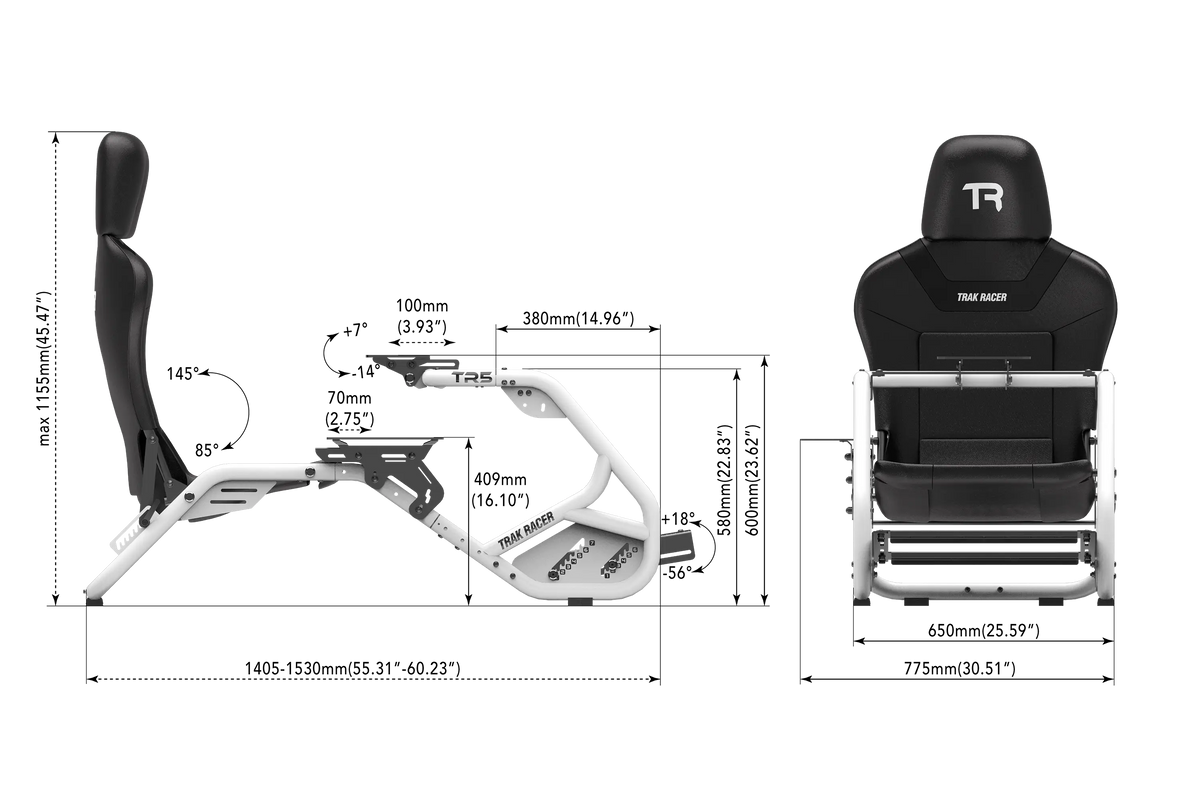

The NexusRig Compact is a sim racing cockpit with seat built from rigid carbon steel tubing, made for drivers who want a direct-drive-ready rig in a small footprint. Seat, wheel deck and pedal plate all adjust, and the frame extends to fit drivers from 140 cm up to 200 cm, so the whole family can use it.

It switches between a reclined and an upright position, so you can drive single-seaters one evening and GT or road cars the next. The frame is tested for direct drive wheel bases up to 25 Nm and has been fatigue-tested with a 150 kg static load over 16,000 cycles.

It works with wheels and pedals from all the major sim racing brands (see the compatibility list) on PC, PlayStation and Xbox, and grows with optional mounts for a monitor, flight controls, bass shakers and more.

Who the nexusRig Compact is for

Drivers who want a complete, compact cockpit:

• First-time cockpit buyers moving off a desk
• Families with drivers of different heights (140–200 cm)
• Direct drive owners up to 25 Nm
• Small rooms where a full aluminium rig is too big
• PC, PlayStation and Xbox players

Features in detail

Reclined and upright positions

The backrest reclines from 85° to 145°, so you can sit low like in a single-seater or upright like in a road car.

Fits 140–200 cm drivers

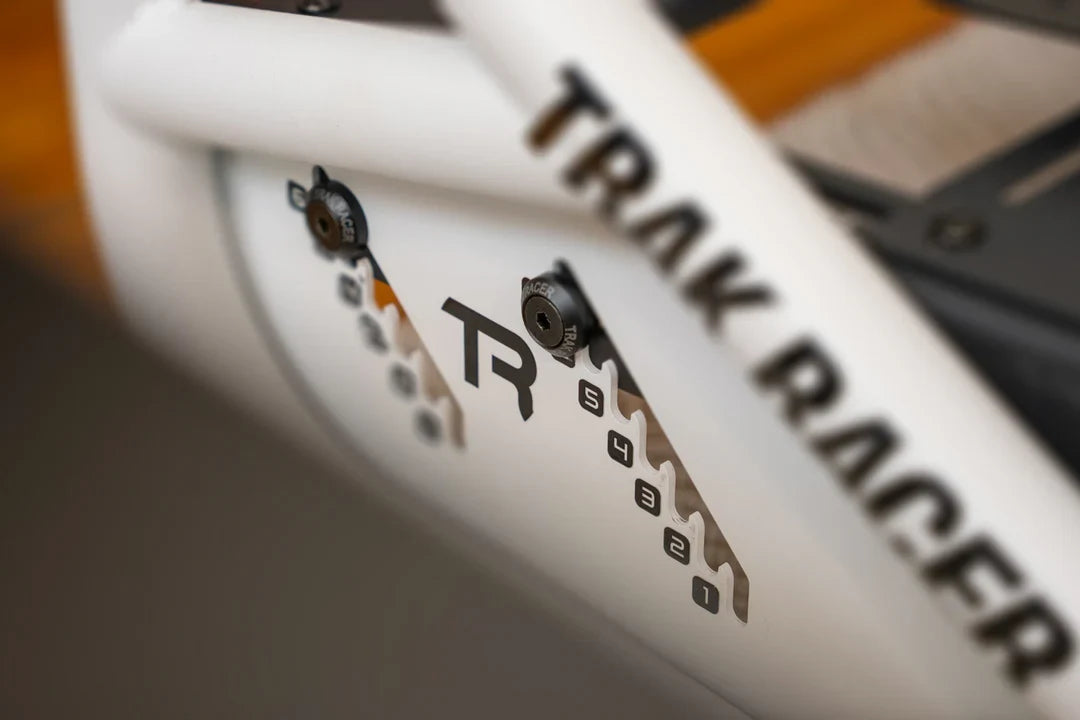

The expandable frame adjusts in length (1405–1530 mm overall) to fit young drivers and tall adults.

Direct drive ready to 25 Nm

Carbon steel tubing is tested with direct drive bases up to 25 Nm for stable, precise feedback.

Adjustable wheel deck

Wheel deck height, tilt (+7° / -14°) and 100 mm of horizontal slide put the wheel exactly where you want it.

Single-plate pedal adjustment

The pedal plate adjusts for distance (580–600 mm), height and angle (+18° / -56°).

Shifter and handbrake mount included

Angle and distance adjust so your shifter or handbrake stays comfortable whatever the frame setting.

Seat included

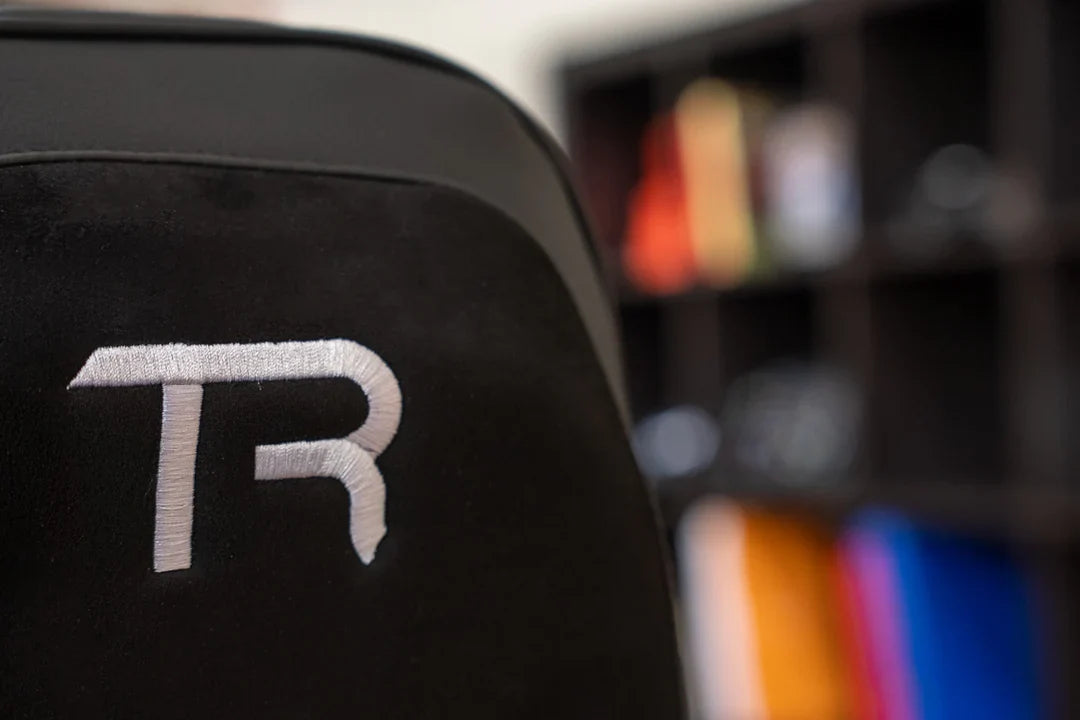

Faux leather and micro suede seat, so the rig is complete out of the box.

Expandable

Optional mounts for a single monitor (up to 50 in), dash display, keyboard and mouse, bass shaker, speakers, flight controls, and an accessory kit with castors, drink holder and headphone hook.

Compatibility

Platforms: PC, PlayStation and Xbox. Wheel torque: up to 25 Nm.

Wheel bases (deck mount): Asetek La Prima, Forte, Invicta and Initium (with adaptor); AccuForce V1/V2; Conspit Ares 12 Nm and Ares Platinum 20 Nm; Fanatec CSL Elite, ClubSport, ClubSport DD and DD+, Podium DD/DD1/DD2, CSL DD and GT DD Pro; Logitech G25, G27, G29, G920, G923, G PRO and RS50; NexusDrive Core 4, 5, 9, 12, 16 Max, 21 Max and 25 Max; Nacon Revosim RS Pure; PXN VD4, VD6, VD10, V12 and V12 Pro; Simagic Alpha Mini, Alpha and Alpha Ultimate (Alpha EVO with its side-mount kit); Thermaltake G6; Turtle Beach Velocity One Race; Thrustmaster T150, T248, T300, T500, T598, T818, TX, TS-XW, TMX, T80, T-GT and T-GT II (with adaptor); VNM Elite, Supreme and Xtreme.

Front mount (optional bracket): Simucube SC1/SC2/SC3, Simagic Alpha series, VRS DirectForce Pro, Fanatec Podium DD, Immsource ET3/ET5, MiGe 130ST, Leo Bodnar / Kollmorgen AKM 52-54, Bodnar 53 series, Lenze MCS12 and Ricmotech Mini-Mite.

Pedals and shifters: the pedal plate and the shifter/handbrake mount take the major brands' pedals and shifters.

Choosing and building a sim rig

Rigidity first. A cockpit exists so the force your wheel base produces goes into your hands, not into a flexing frame. Direct drive bases need a stiff front mount; aluminium profile rigs (40 mm and 80 mm extrusion with 8 mm slots) are the stiffest and most adjustable, while steel tube rigs are lighter and quicker to assemble.

Driving position. GT position puts you upright with the pedals low; formula position reclines the seat and raises the pedals. Check whether the cockpit, seat bracket and pedal mount allow the position you want.

Plan the extras. Monitor stands, shifter and handbrake mounts, keyboard trays and PC shelves bolt onto most profile rigs. Planning them up front avoids drilling or re-assembling later.

Setup and use

1. Assemble the frame using the quick-start guide (tools and cable ties are included).
2. Set the frame length for the main driver's height.
3. Mount the wheel base on the deck and the pedals on the plate.
4. Choose reclined or upright and set the backrest angle.
5. Adjust wheel height, tilt and reach, then pedal distance and angle, and tighten everything.

Care and maintenance

Check the frame bolts after the first week and then monthly, especially with a high-torque base. Wipe the steel with a damp cloth; clean faux leather with mild soap and brush the micro suede. Keep cables tidy with the included ties.

Specifications

What's in the box

• NexusRig Compact frame
• Faux leather and suede seat
• Shifter / handbrake mount
• Cable management ties
• Quick-start guide

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Is the seat included?

Yes, a faux leather and micro suede seat is included.

Can it handle a direct drive wheel base?

Yes, it is tested with direct drive bases up to 25 Nm.

How tall can the driver be?

From 140 cm to 200 cm, with a maximum driver weight of 150 kg.

Does it fold away?

No, it is not foldable, but its footprint is compact.

Can I add a monitor?

Yes, an optional integrated single monitor stand supports displays up to 50 inches.

Is it compatible with PlayStation and Xbox wheels?

Yes. Platform compatibility depends on your wheel; the cockpit works with PC, PlayStation and Xbox setups.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
