NexusPedal Ultimate+ 3-Pedal Set – 140 kg Load Cell Brake, Hydraulic Damping, Throttle & Clutch

NexusPedal Ultimate+ 3-pedal set: overview

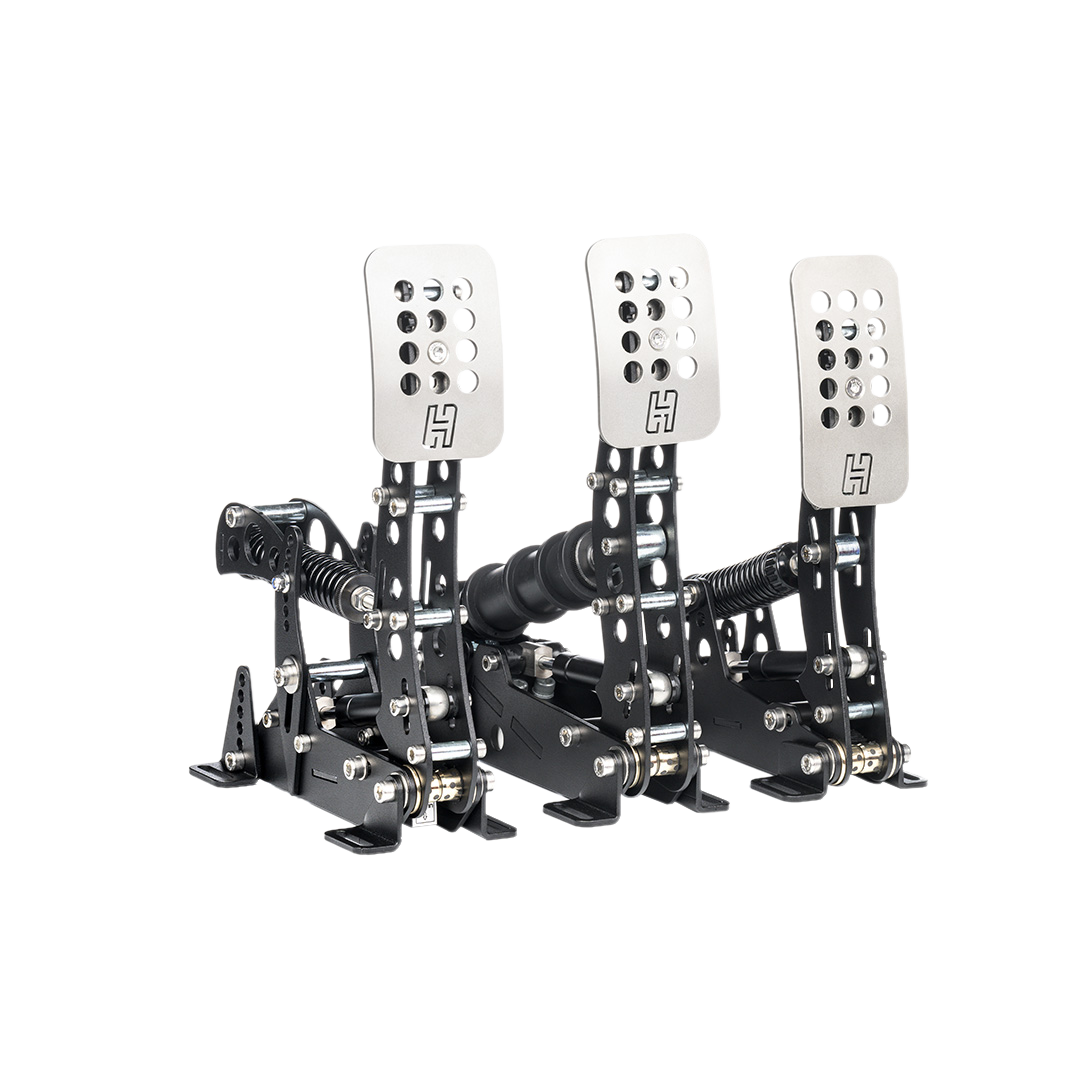

The NexusPedal Ultimate+ is our top-tier 3-pedal set – throttle, brake and clutch – for drivers who want the closest feel to a real race car.

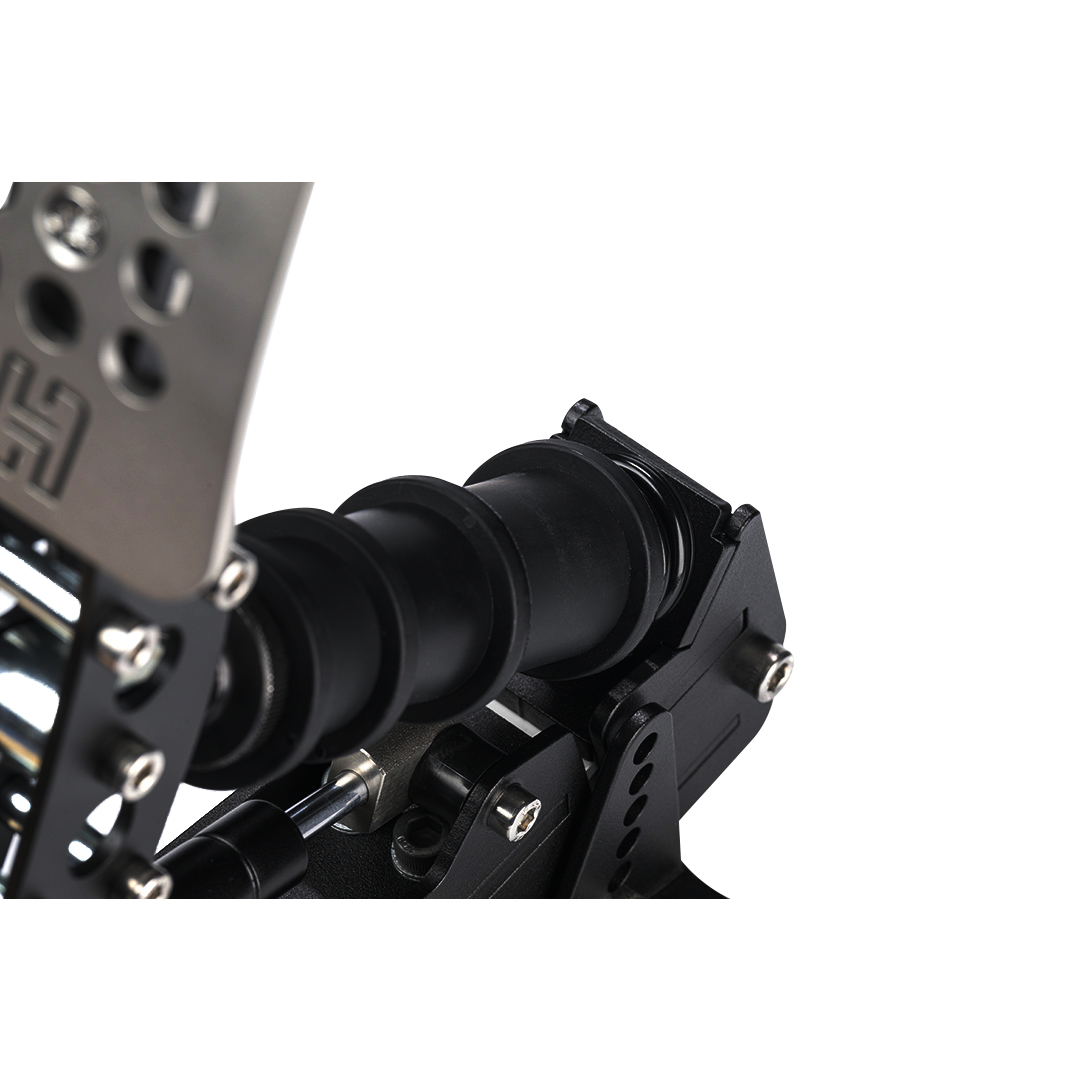

The brake uses a 200 kg load cell and reaches about 140 kg at the pedal plate, like GT3, LMP and formula cars. A dual-stage spring and elastomer system with nine stiffness settings runs from road-car softness to high-downforce firmness.

Hydraulic damping on every pedal – two-way on brake and clutch, one-way on throttle – smooths movement, while slide bearings, a 12-bit USB controller and stainless steel make it last over a million actuations.

Who the nexusPedal Ultimate+ 3-pedal set is for

Drivers who want the ultimate pedal feel:

• GT3, LMP and formula racers
• Esports pros
• Professional training simulators

Features in detail

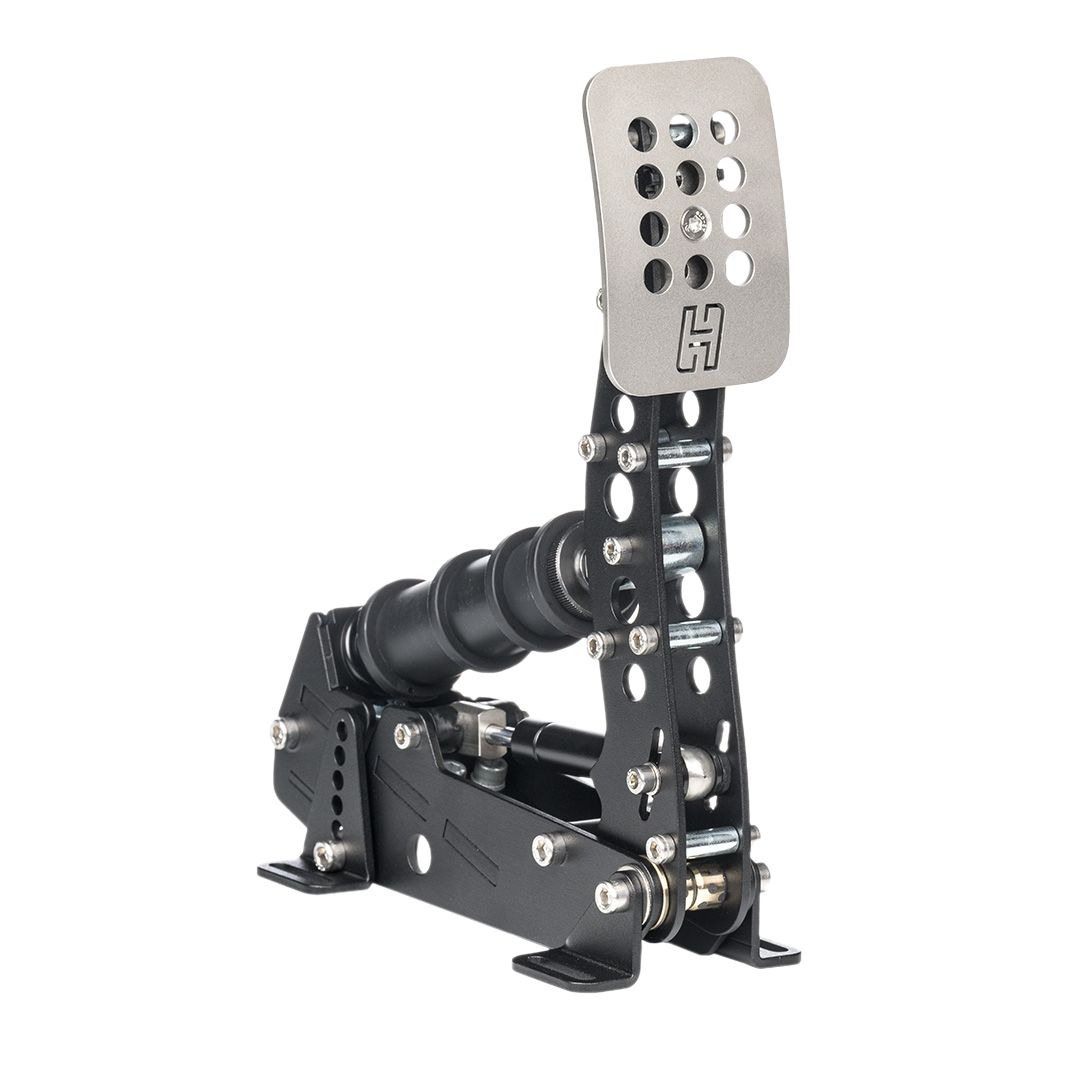

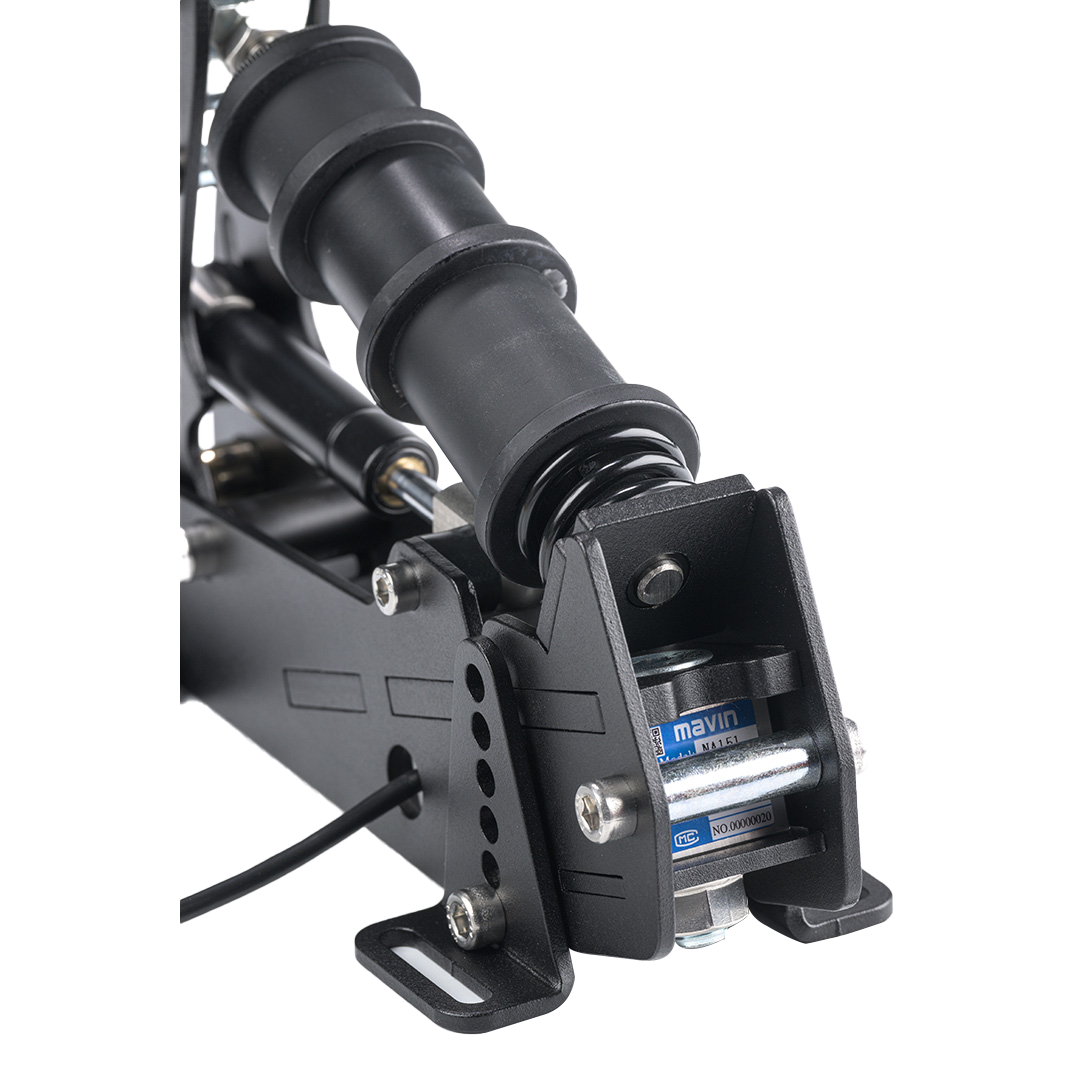

200 kg load cell brake

Up to about 140 kg at the pedal.

9 brake settings

Road car to high downforce.

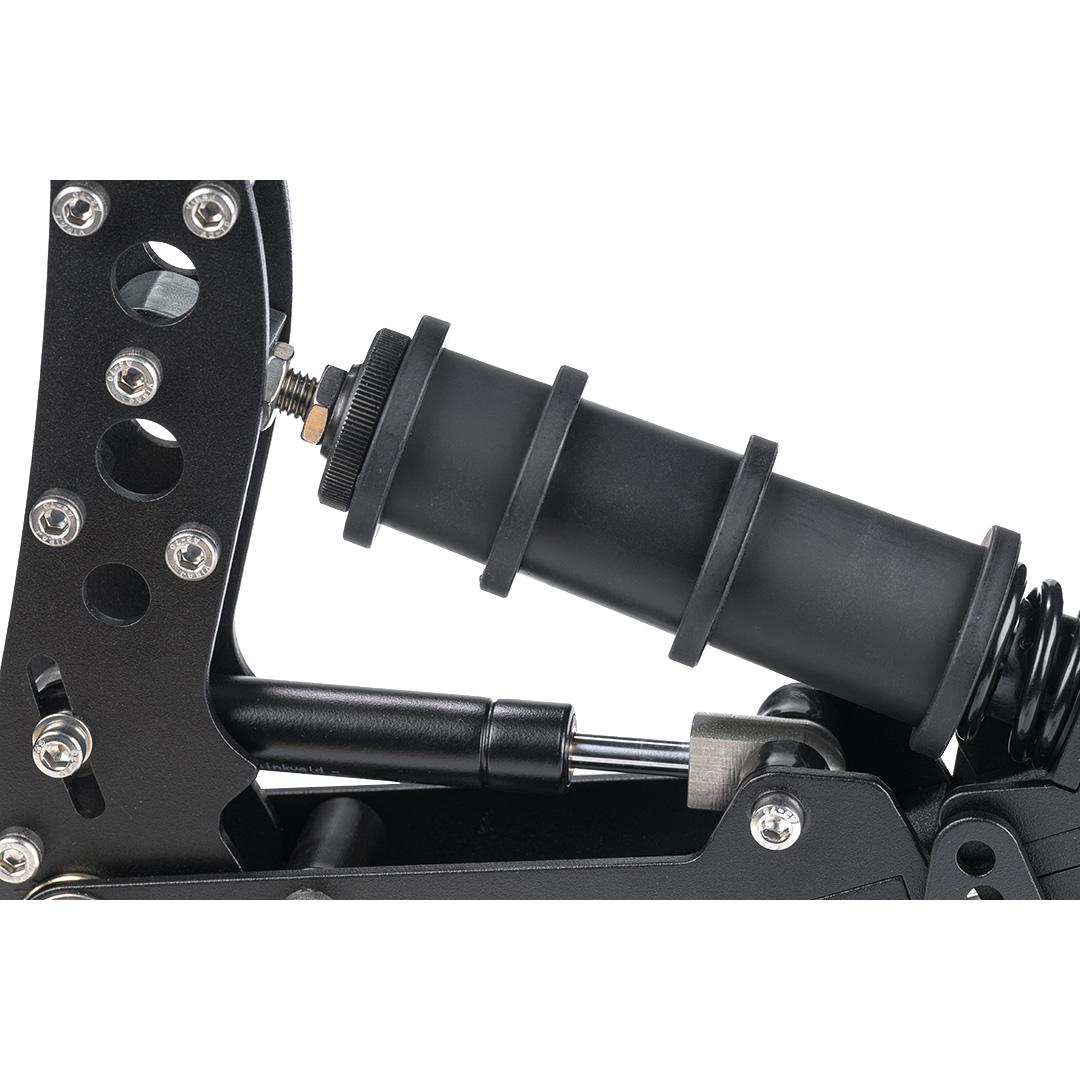

Hydraulic damping

2-way brake/clutch, 1-way throttle.

Full geometry

Angle, height, travel, preload, damping.

12-bit USB controller

High-resolution input.

Stainless steel

FEA-optimised, slide bearings, 1M+ cycles tested.

Compatibility

PC (Windows) via USB. Needs a solid rig or rigid pedal plate – recommended on our aluminium cockpits such as the NexusRig Fortress or Titan.

Building a sim racing or flight setup

Base, rim and pedals. In a modular setup the wheel base holds the force feedback motor, the rim clips on with a quick release and the pedals connect to the base or by USB. Rims and pedals must suit your base, and the base decides which platforms are supported.

Direct drive. Direct drive bases attach the rim straight to the motor for the most detailed and strongest feedback. They need a rigid cockpit or a strong desk mount.

Load cell pedals. A load cell brake measures pressure, not travel, like a real car. It is the single upgrade that improves lap-time consistency the most.

Setup and use

1. Bolt the pedals to a rigid pedal plate.
2. Set geometry, brake stiffness and damping.
3. Connect USB and tune curves in the software.

Care and maintenance

Check bolts regularly; keep hydraulic dampers clean.

Specifications

What's in the box

• Throttle pedal
• Brake pedal (load cell)
• Clutch pedal
• USB controller and cable
• Mounting hardware

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

How much brake force?

Up to about 140 kg.

Is it hydraulic?

It has hydraulic damping on all pedals.

Console compatible?

No, PC only.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
