NexusPedal Core LC – 200 kg Load Cell Brake & Throttle Pedals, CNC Aluminium, Carbon Heel Plate
Delivery expect 4-8 business days.
NexusPedal Core LC: overview

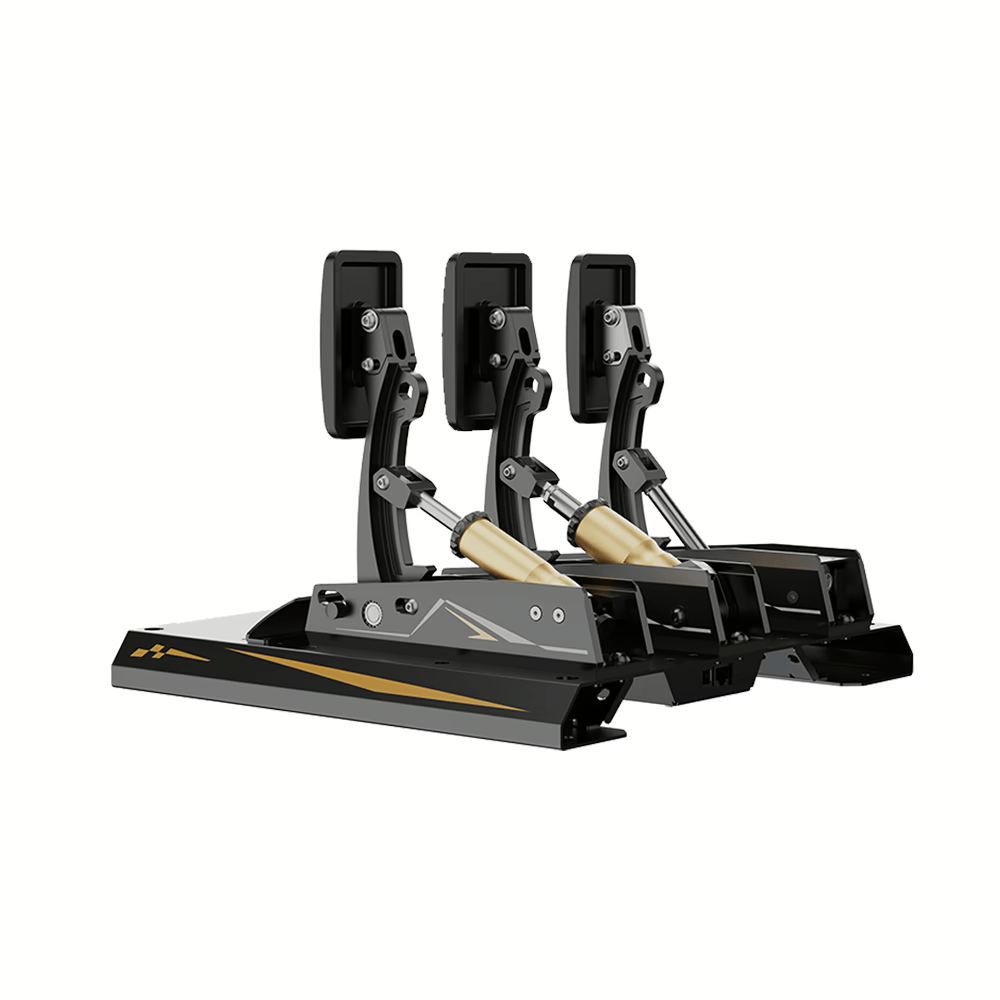

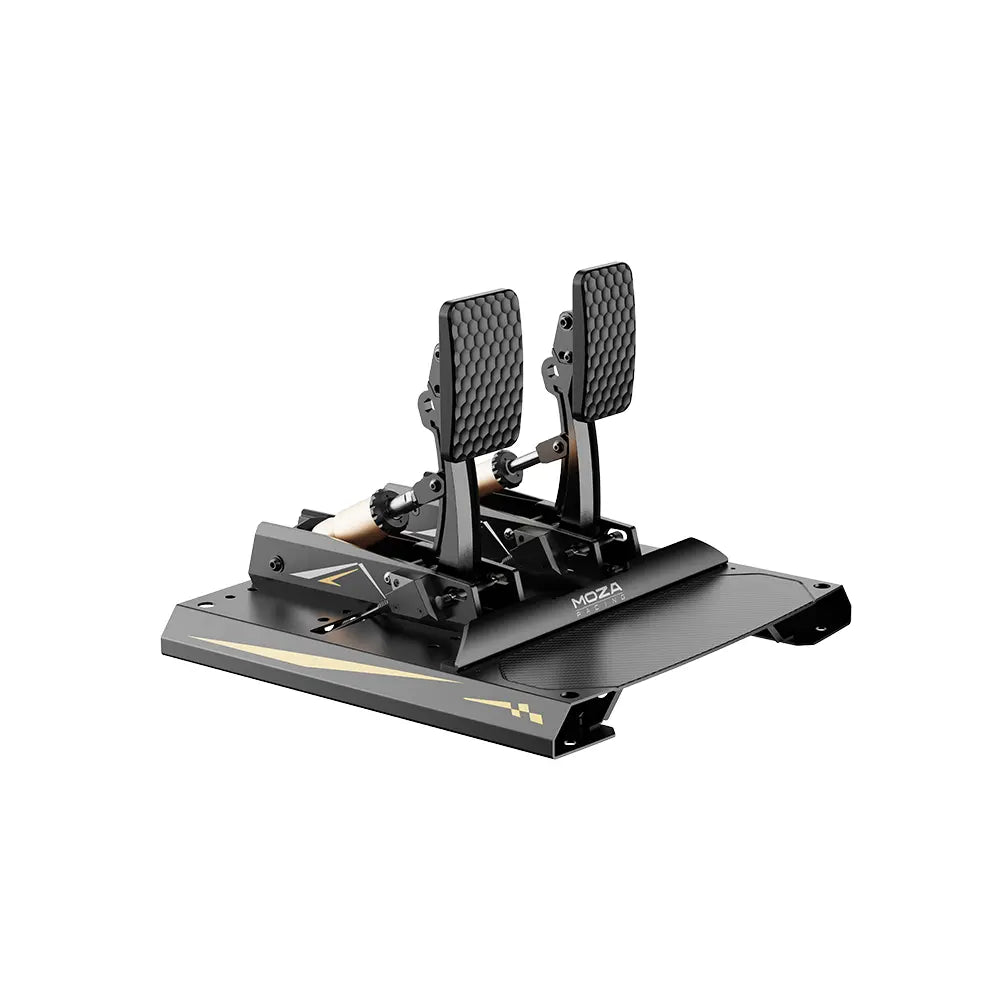

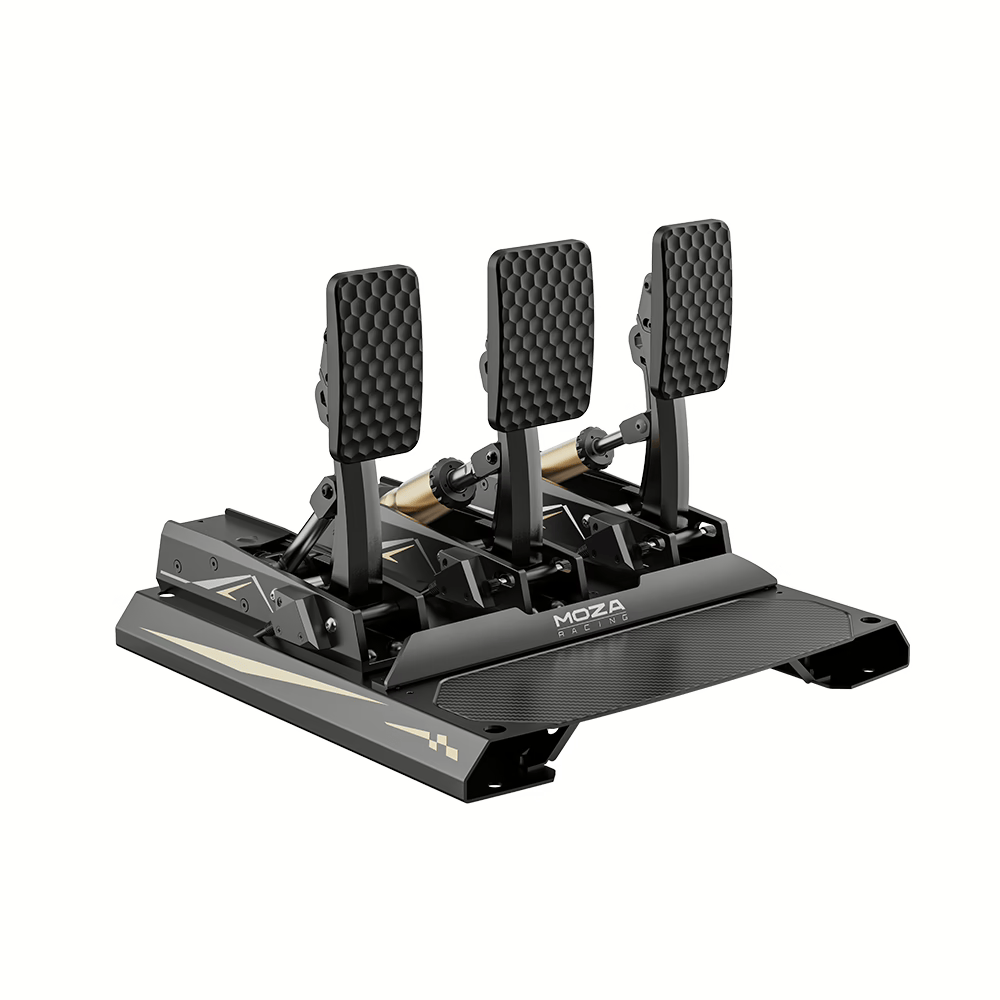

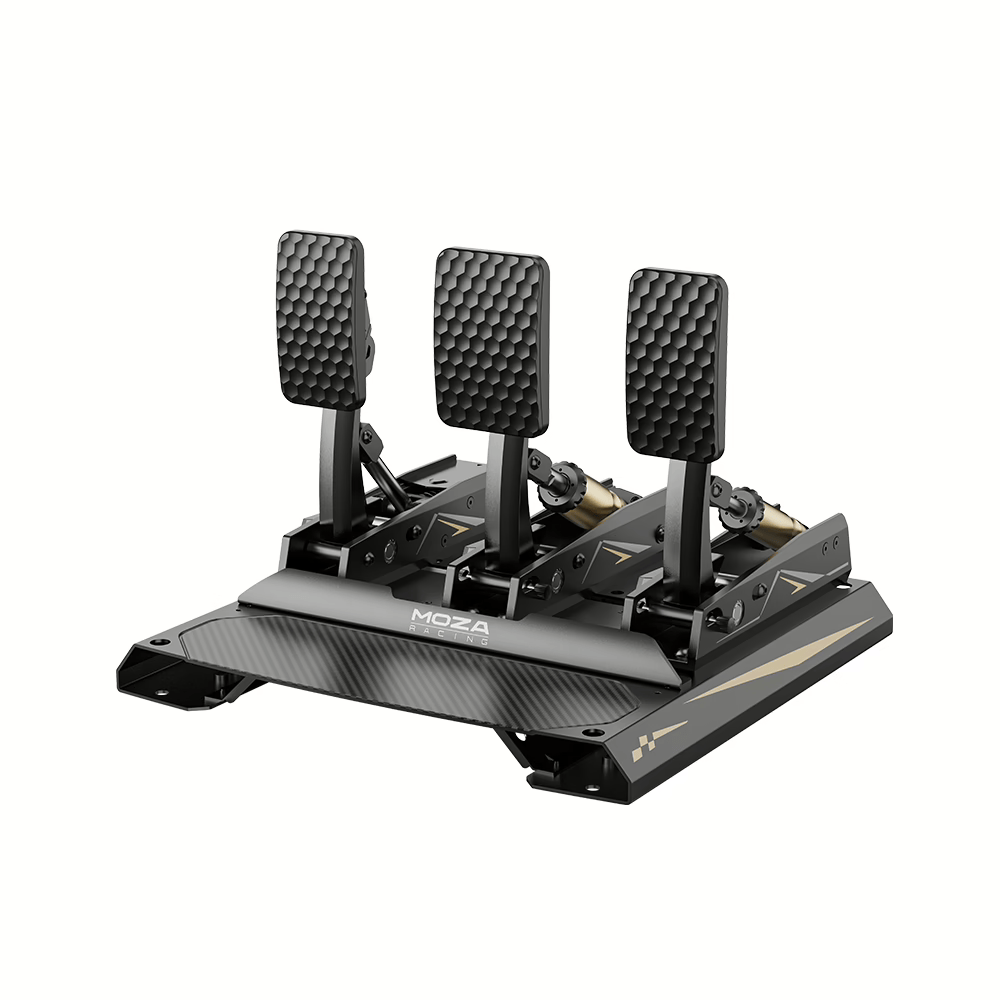

NexusPedal Core LC is a professional load cell pedal set (throttle and brake) machined from CNC aerospace-grade aluminium, with a 3K carbon heel plate on a steel base.
The brake pairs a 200 kg load cell with a 15-bit angle sensor, and its feel goes from road car to F1 with 115 standard and 1,764 optional configurations – tool-free.
Travel, face angle (0–15°), face height and footrest (30 mm each) adjust, the biomimetic curved pedal faces fit the foot, and smooth, quiet bearings make it built for endurance. An inversion kit is available.
Who the nexusPedal Core LC is for
Serious sim racers:
- Drivers who brake hard and want consistency
- GT, formula and prototype cars

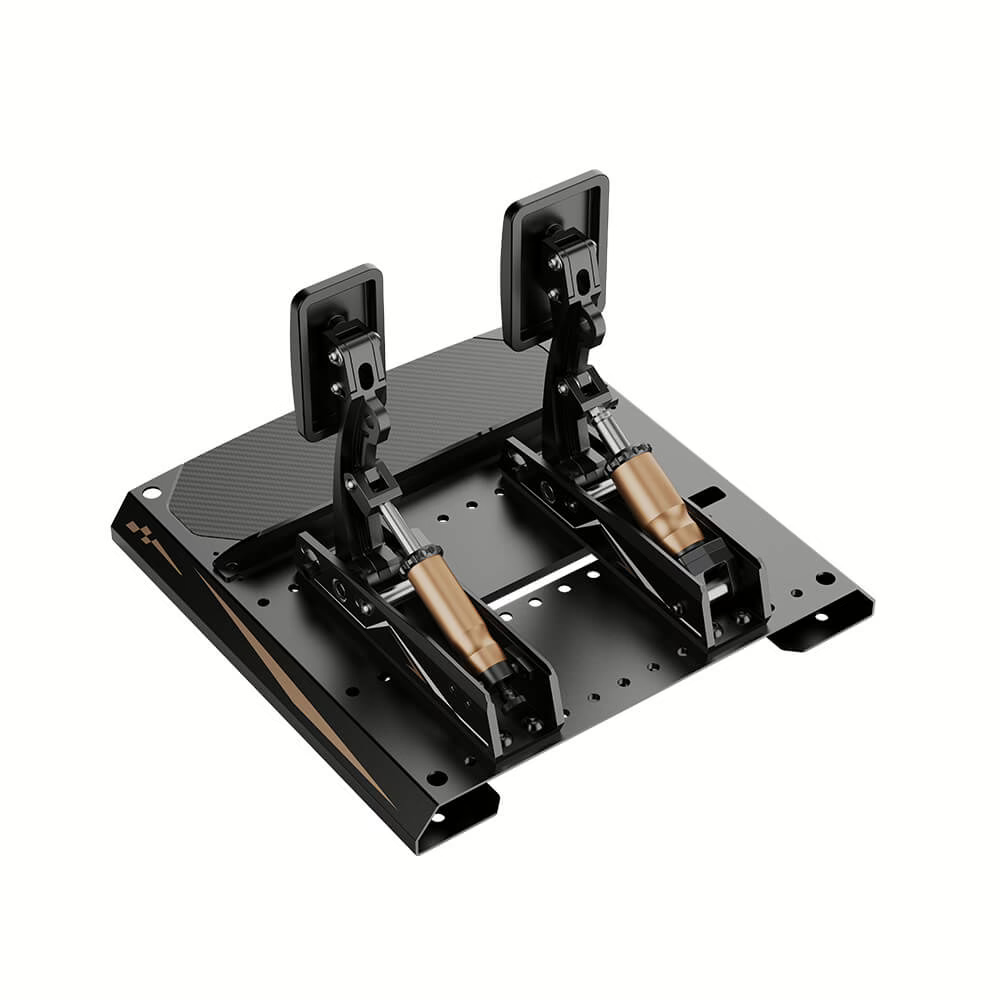

- Inverted pedal setups
Features in detail
200 kg load cell
Room for the hardest braking.
15-bit angle sensor fusion
Control in the first part of the travel.
1,764 brake setups
Road car to F1.
CNC aluminium + carbon
Rigid and premium.
Wide adjustment
Travel, angle, height, footrest.
Compatibility
Wheel bases: NexusDrive Core bases (pedal port), or by USB to any PC setup.
Add-ons: Core LC clutch, inversion kit, full-length throttle plate, brake performance kit, NexusPulse haptics.
Building a sim racing or flight setup
Base, rim and pedals. In a modular setup the wheel base holds the force feedback motor, the rim clips on with a quick release and the pedals connect to the base or by USB. Rims and pedals must suit your base, and the base decides which platforms are supported.
Direct drive. Direct drive bases attach the rim straight to the motor for the most detailed and strongest feedback. They need a rigid cockpit or a strong desk mount.
Load cell pedals. A load cell brake measures pressure, not travel, like a real car. It is the single upgrade that improves lap-time consistency the most.
Setup and use
- Bolt the pedals to your rig (or invert them with the kit).
- Connect to the base or by USB.
- Set travel, angle and brake feel.
- Tune curves and the brake engagement point in the configuration software for PC and the mobile app.
Care and maintenance
Keep the bearings and shafts clean; check bolts occasionally.
Specifications
| Brake sensor | 200 kg load cell + 15-bit angle sensor |
| Body | CNC aerospace aluminium |
| Heel plate | 3K twill carbon |
| Base | High-strength steel |
| Brake feel | 115 standard / 1,764 optional setups |
| Brake travel | 15–20° |
| Throttle travel | 15–23° |
| Pedal angle | 0–15° |
| Face height / footrest | Up to 30 mm each |
What's in the box
- NexusPedal Core LC (throttle + brake)
- Toolkit
Shipping, returns and warranty
Shipping
Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.
Returns
You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.
Warranty
Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.
Frequently asked questions
How strong is 200 kg?
More than most drivers ever use, so the sensor never limits you.
Can I invert them?
Yes, with the Core LC inversion kit.
Is a clutch included?
No, add the Core LC clutch.
How long does delivery take?
Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.
Can I return it if it is not right for me?
Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.
Is it covered by a warranty?
Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
See all our sim racing pedals or the Core LC clutch or the inversion kit, or browse the complete sim racing range to build your rig.
