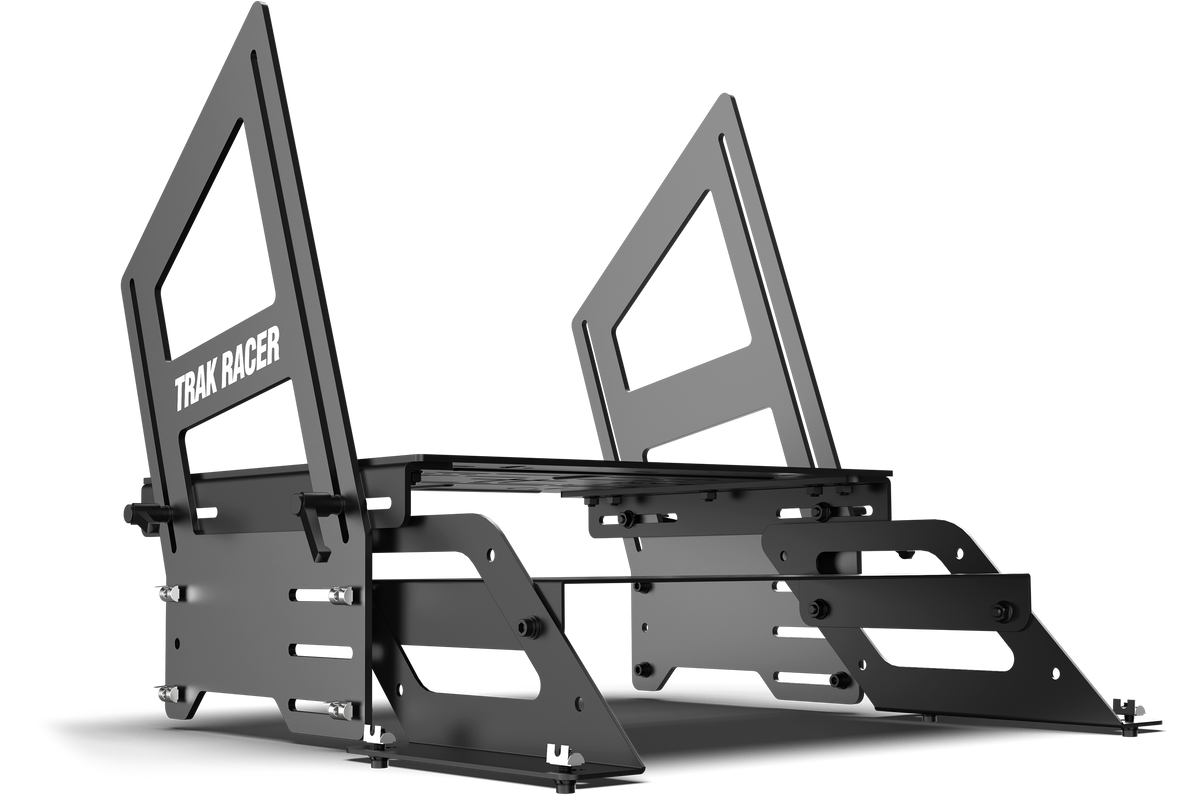

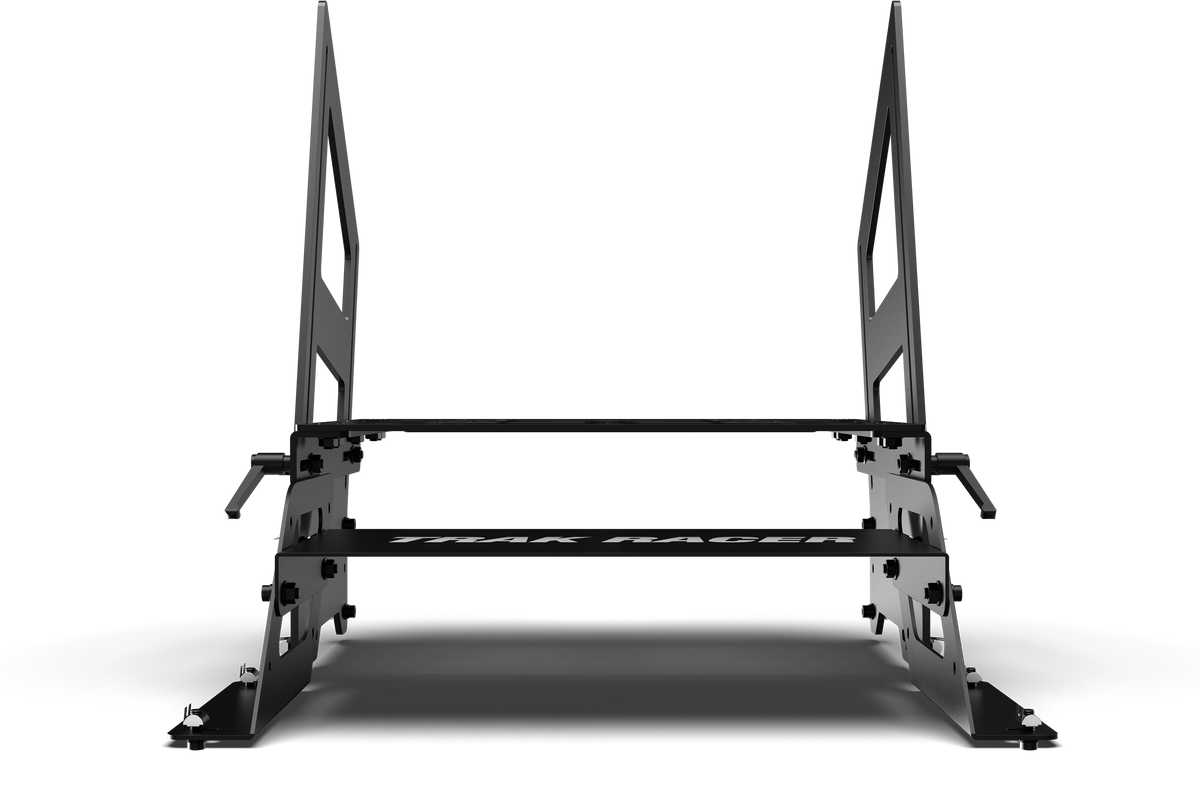

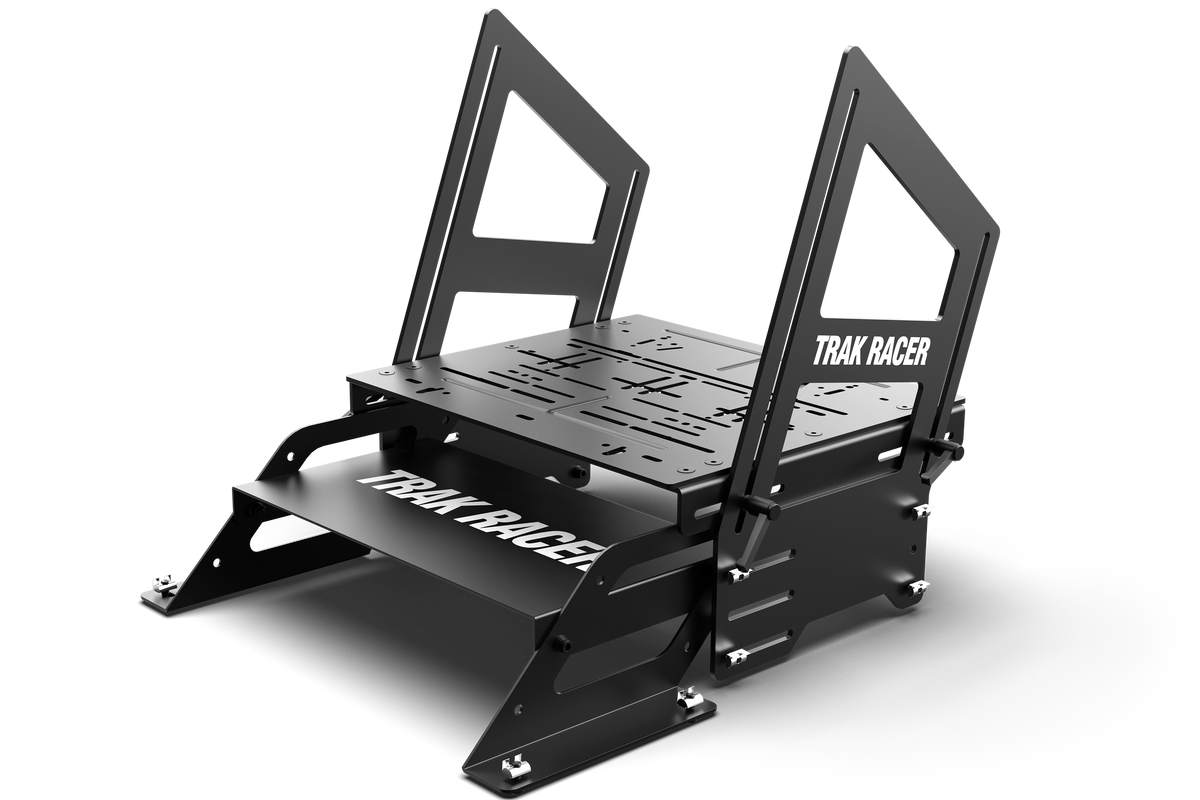

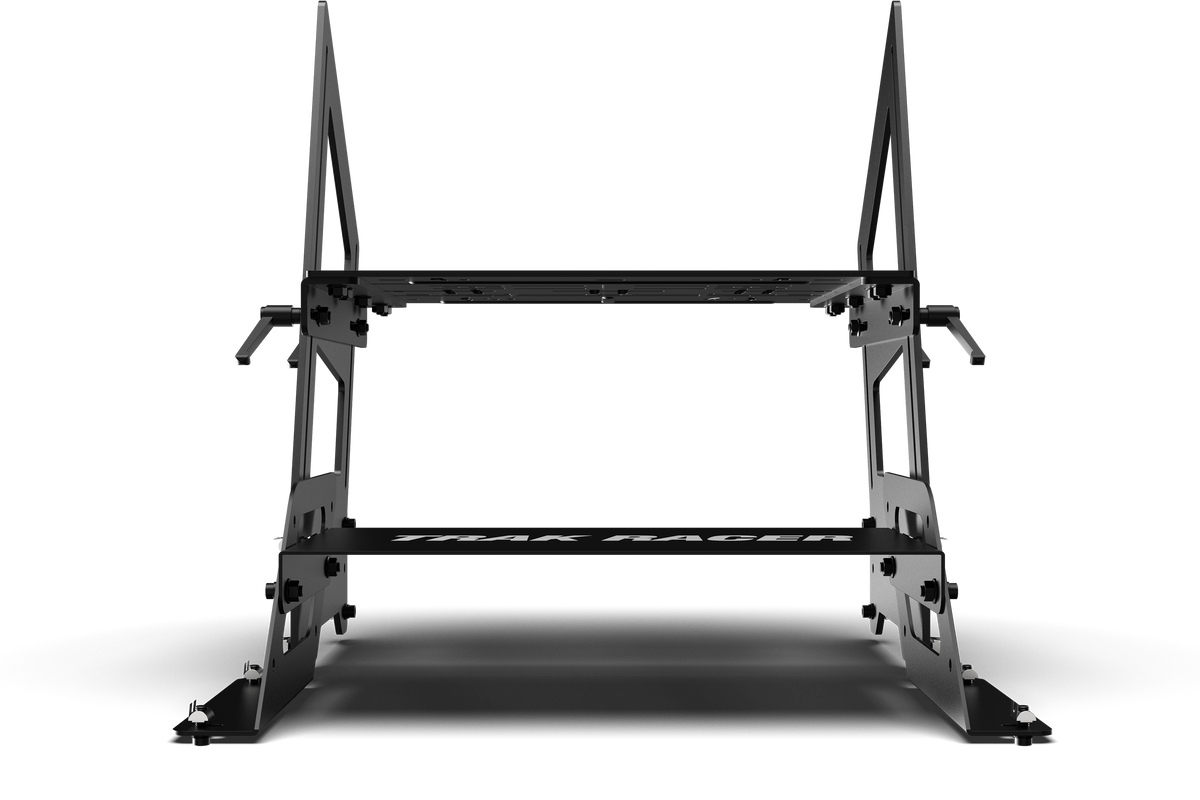

Inverted, Formula & GT Hybrid Pedal Mount System with Pedal Plate & Footrest – For 500 mm Profile Rigs

Inverted, formula and GT pedal mount system: overview

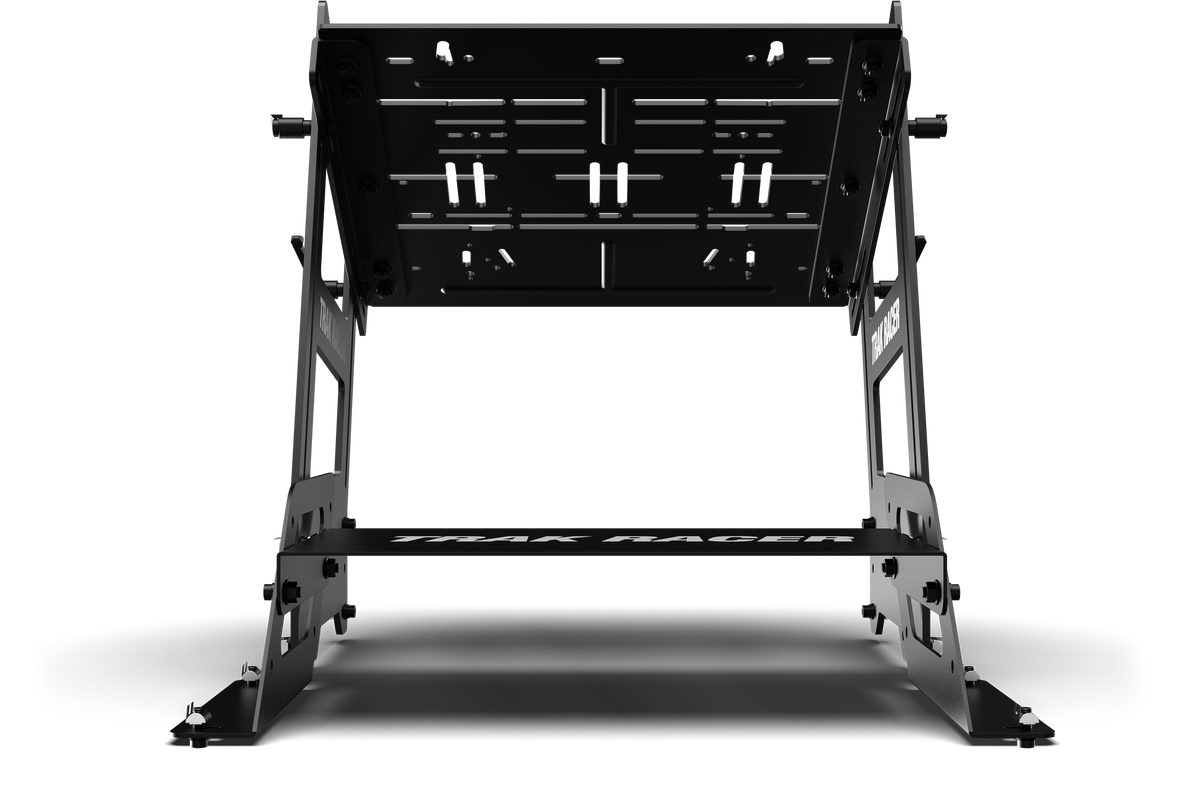

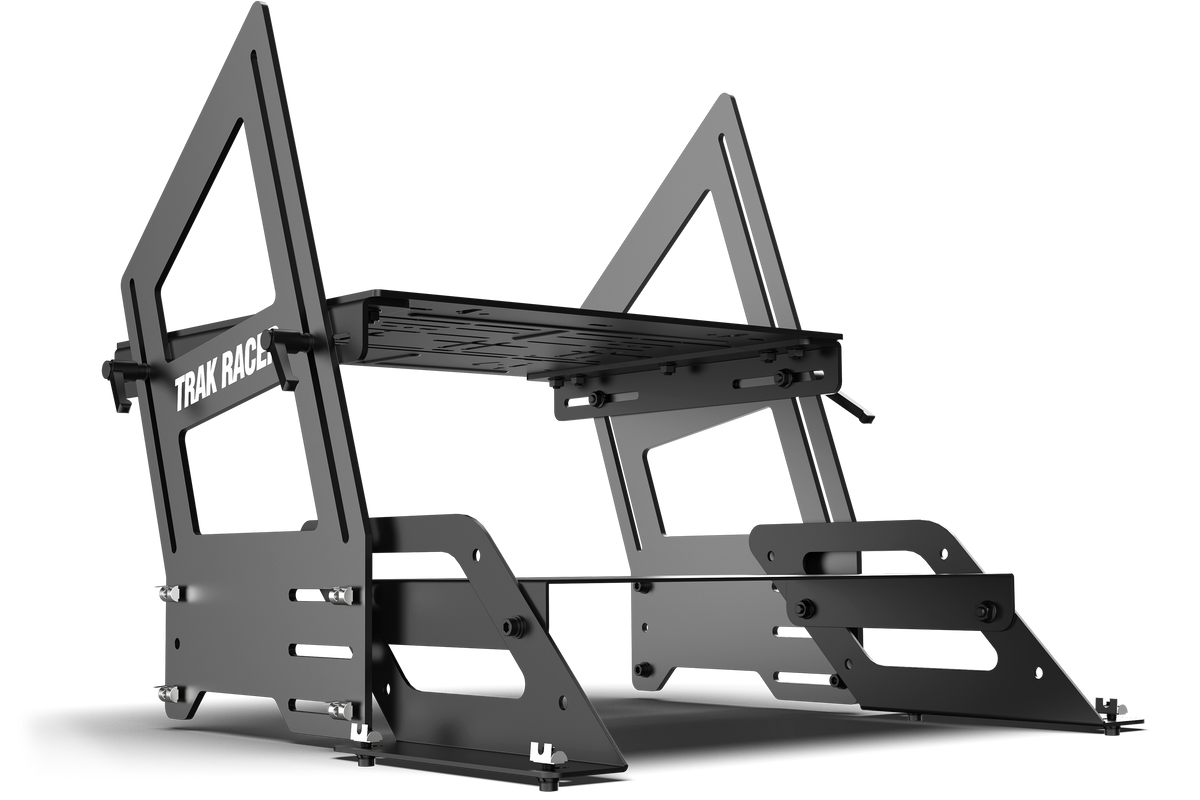

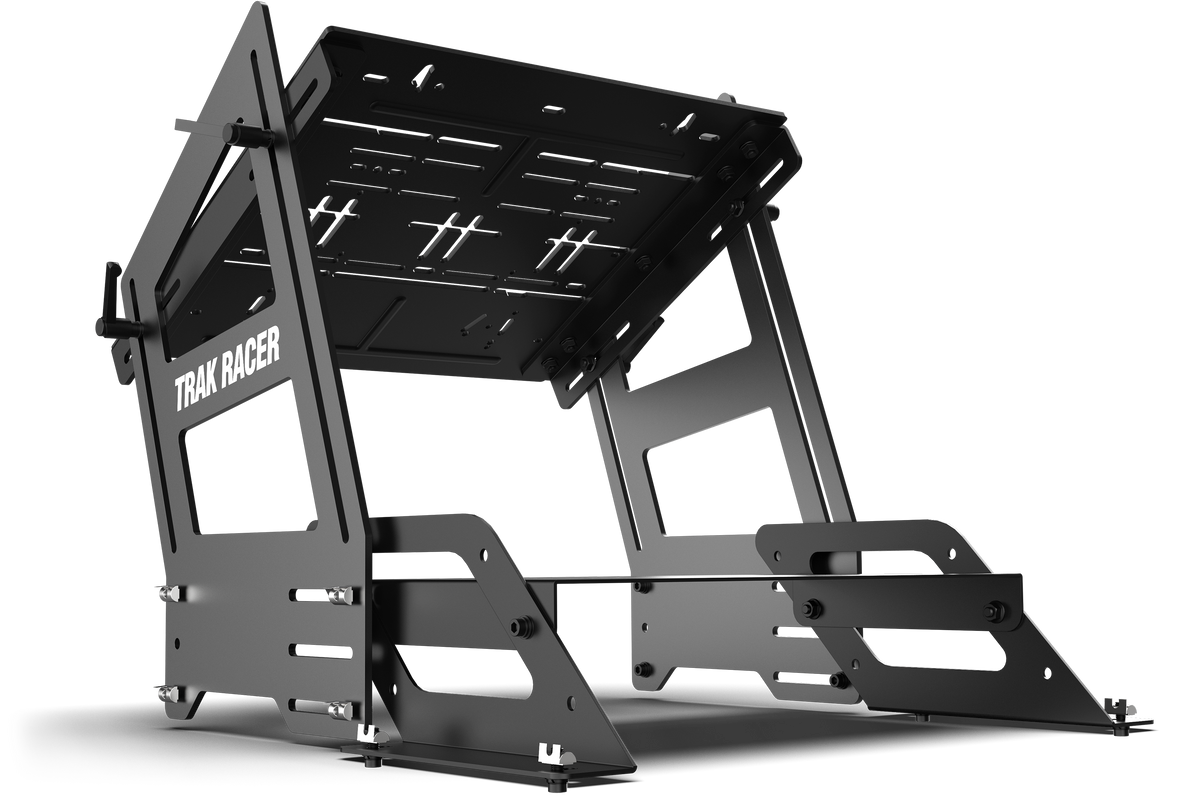

This pedal mount system holds your pedals inverted (hanging, like a real car), in formula position or in GT position, with one set of brackets.

Its side brackets mount inside the chassis for the widest range of height and angle, and they slide forward and back. Thick carbon steel means no flex under hard braking.

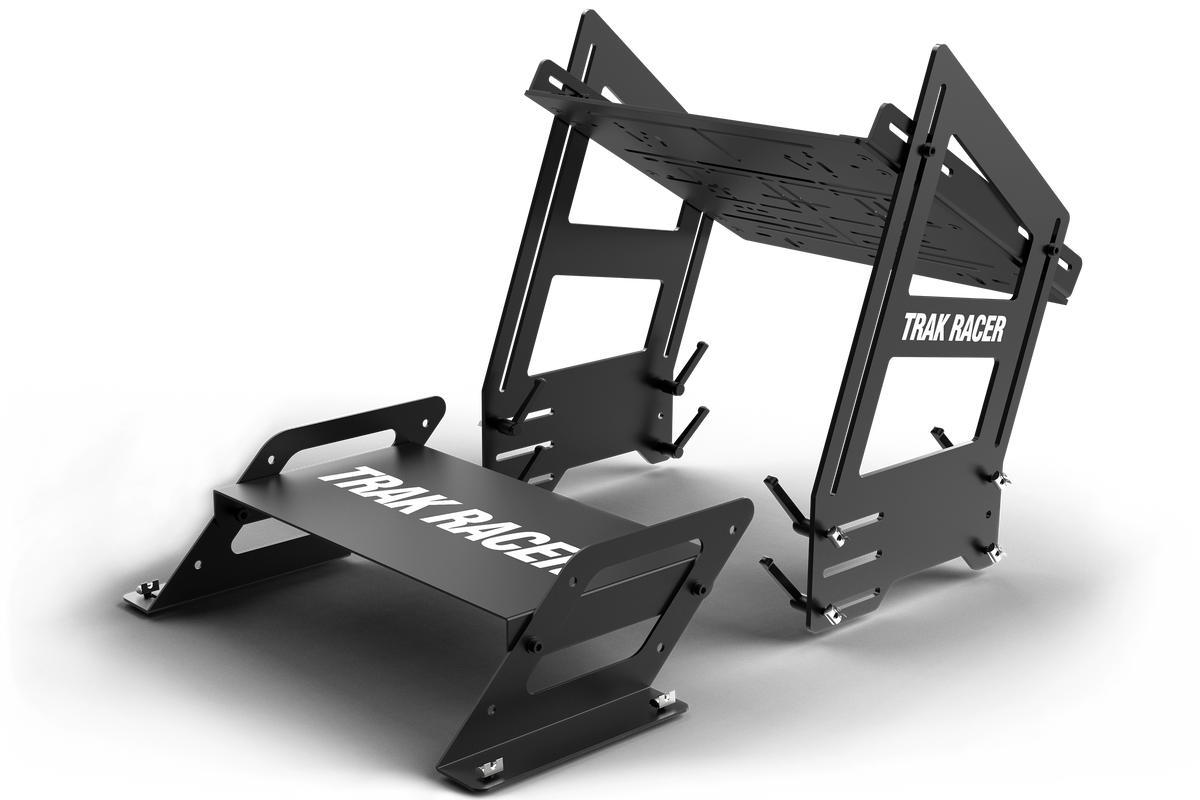

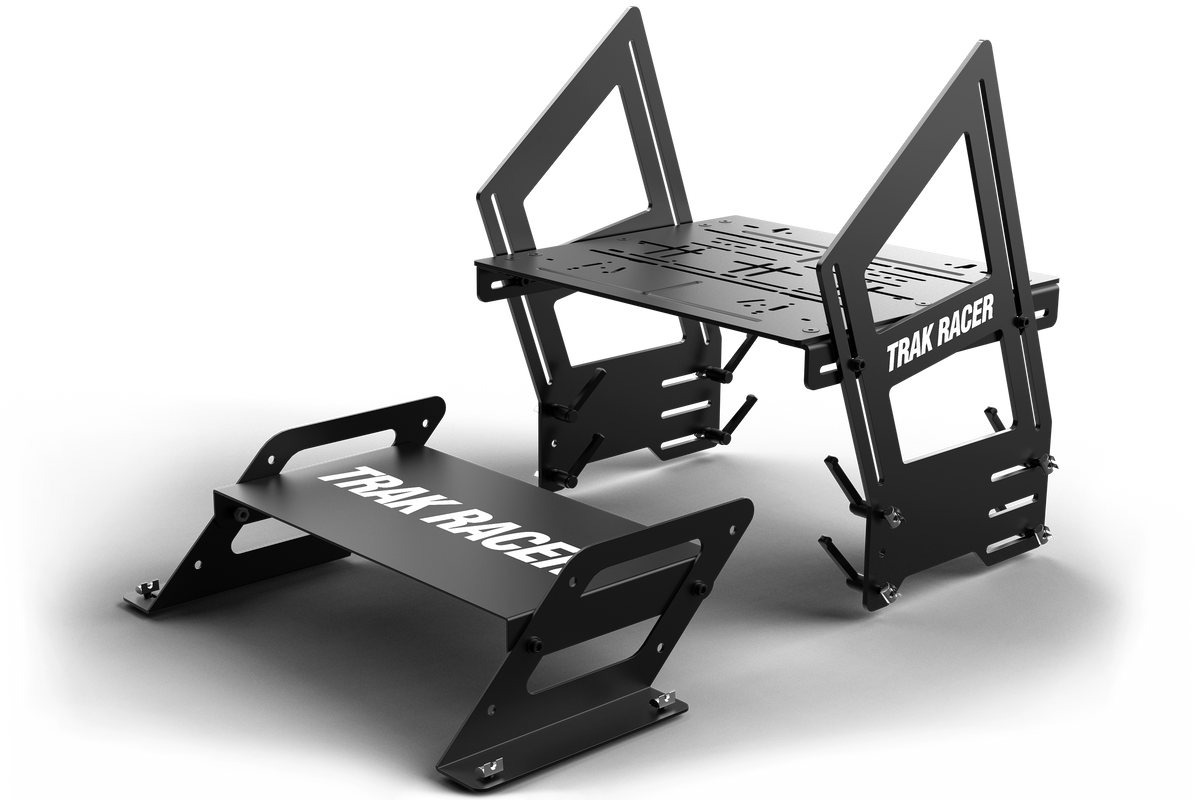

It includes the pedal plate, the footrest and all screws and T-nuts, and fits aluminium profile rigs with 500 mm between the inner chassis profiles.

Who the inverted, formula and GT pedal mount system is for

Drivers who want inverted pedals:

• Formula and GT drivers
• Load cell and hydraulic pedal owners
• Flight simmers with rudder pedals

Features in detail

Three positions

Inverted, formula or GT.

Inside-chassis mounting

Maximum height and angle range.

Full adjustment

Angle, height and slide.

Thick carbon steel

No flex.

Complete

Pedal plate, footrest, hardware.

Compatibility

Rigs: aluminium profile rigs with 500 mm internal spacing, including our NexusRig Fortress, Titan, Vanguard, Sprint, Rookie and NexusHaul Truck.

Pedals: Fanatec CSL, CSL Elite, ClubSport V1–V3 and Podium; Asetek Initium, La Prima, Forte and Invicta; BJ Sim Racing / BJ Steel; Cammus LC100; Conspit CPP.Lite and CPP-EVO; Cube Controls SP01/SP02; Heusinkveld Ultimate, Ultimate+, Sprint and One; Logitech G25–G923, G Pro and RS; Meca; NexusPedal Core LC, Core 2, Core Lite and Booster Active; Simagic P500, P700, P1000, P1000i and P2000; Sim-Lab XP1; Simforge; Simgrade; SimJack; Simnet; Simsonn; Simtrecs; Simucube ActivePedal and Co-Pedal; Thrustmaster T-LCM, T3PA, T3PM and T3PGT; Turtle Beach VelocityOne; Venym Atrax; VNM V1 and Lite; VRS DirectForce Pro; plus our NexusPedal range.

Flight: Logitech rudder pedals, Thrustmaster TPR and T.Flight Rudder, Virpil ACE, RUDDO+.

Mounting on aluminium profile rigs

The 8 mm slot standard. Most modern sim rigs use 40 mm-based aluminium extrusion (40x40, 40x80, 40x160) with 8 mm slots. Mounts fix with M8 bolts and T-nuts that slide into the slot, so they can be moved and re-angled at any time.

Rigidity and access. Mount heavy or high-force devices (handbrakes, shifters, wheel bases) as close to a vertical upright or cross member as possible. Leave room to get in and out of the seat.

Tools. A set of hex keys (mainly 6 mm for M8) covers nearly every mount. Snug every bolt, test, then do a final tightening once the position is right.

Setup and use

1. Check the inner spacing of your rig is 500 mm.

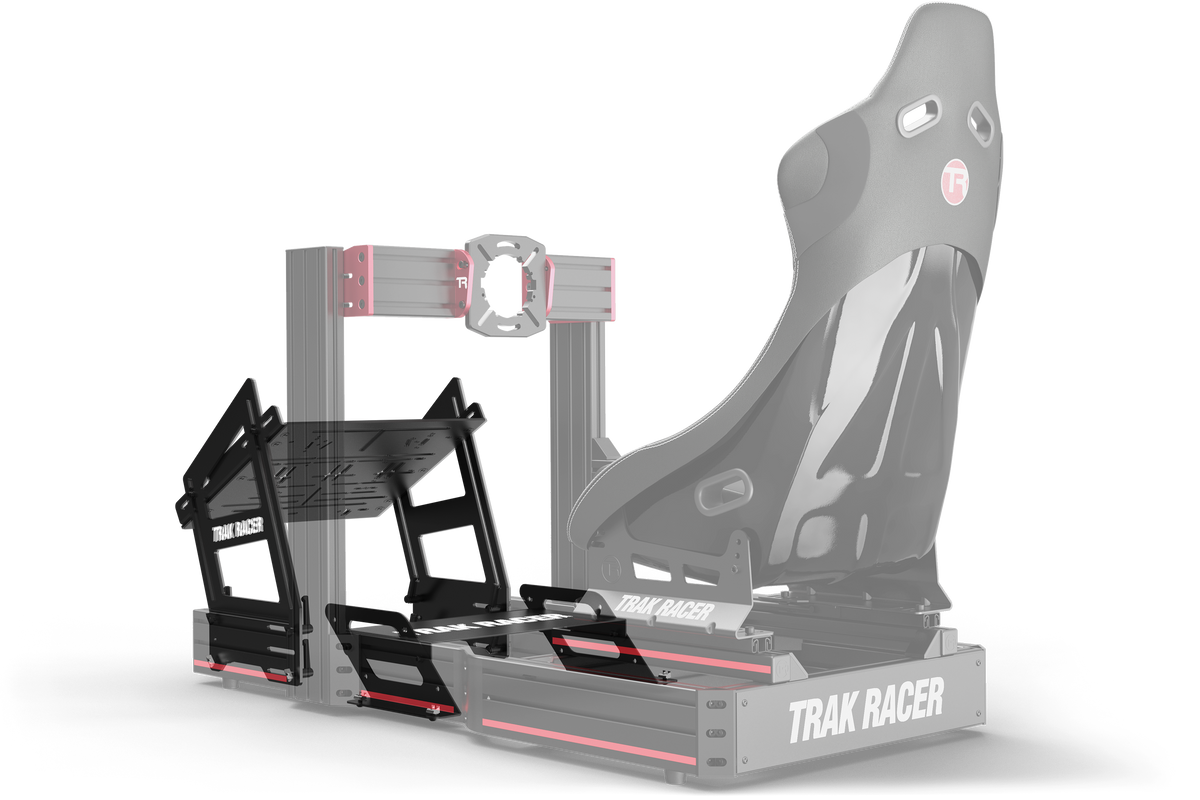

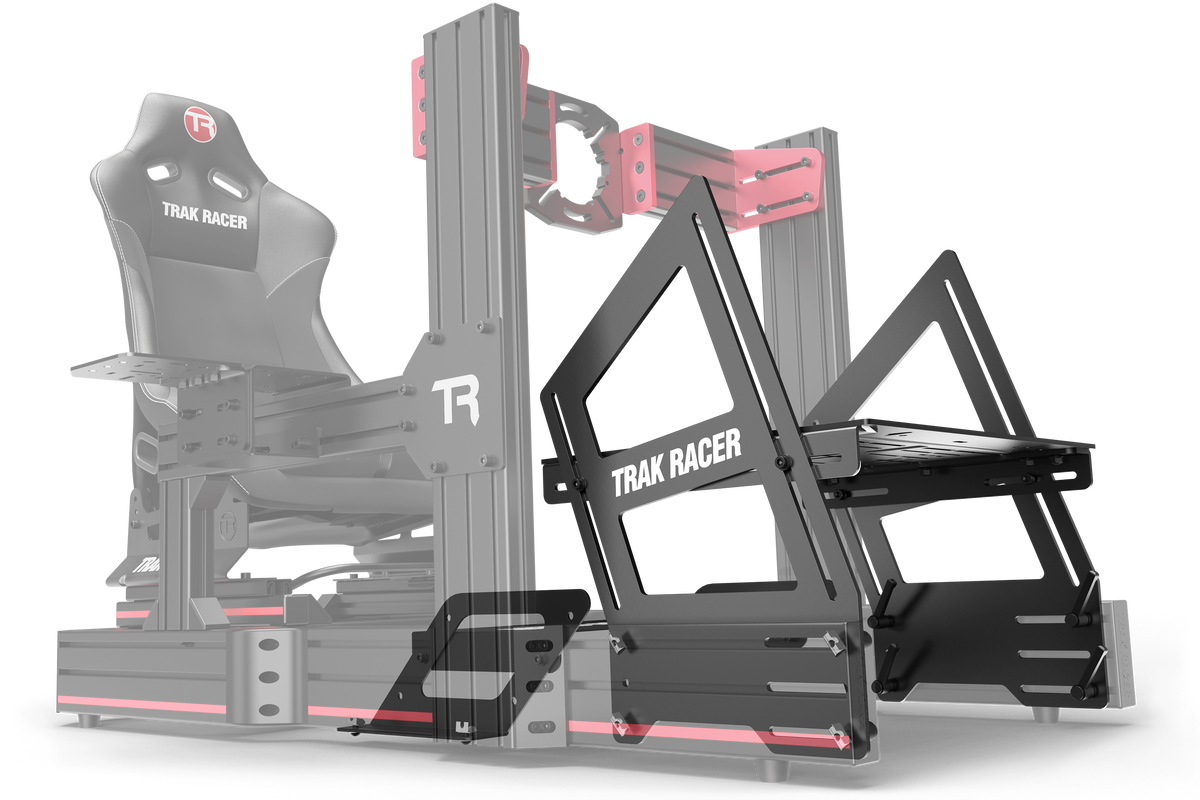

2. Fit the side brackets inside the chassis.
3. Fit the pedal plate and footrest.
4. Mount your pedals and set angle, height and slide.

Care and maintenance

Recheck bolts after the first sessions of hard braking.

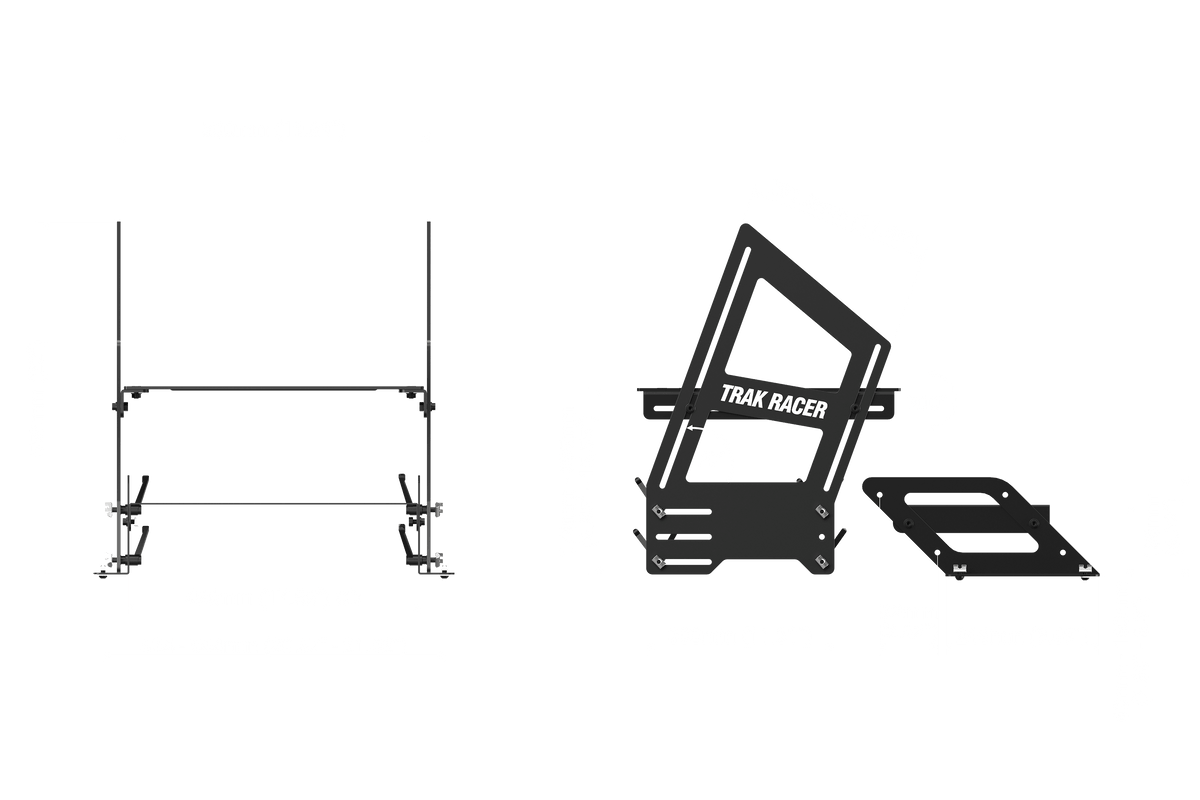

Specifications

What's in the box

• 2 side brackets
• Pedal plate
• Footrest
• Screws and T-nuts

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Will my pedals fit?

Most leading pedal sets fit; see the list.

What width does my rig need?

500 mm between the inner chassis profiles.

Can I run pedals upright?

Yes, formula and GT positions too.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
