Die-Cast Aluminium Corner Brackets 160 x 40 mm for Extrusion Sim Rigs – Set of 2

160 x 40 mm die-cast corner brackets: overview

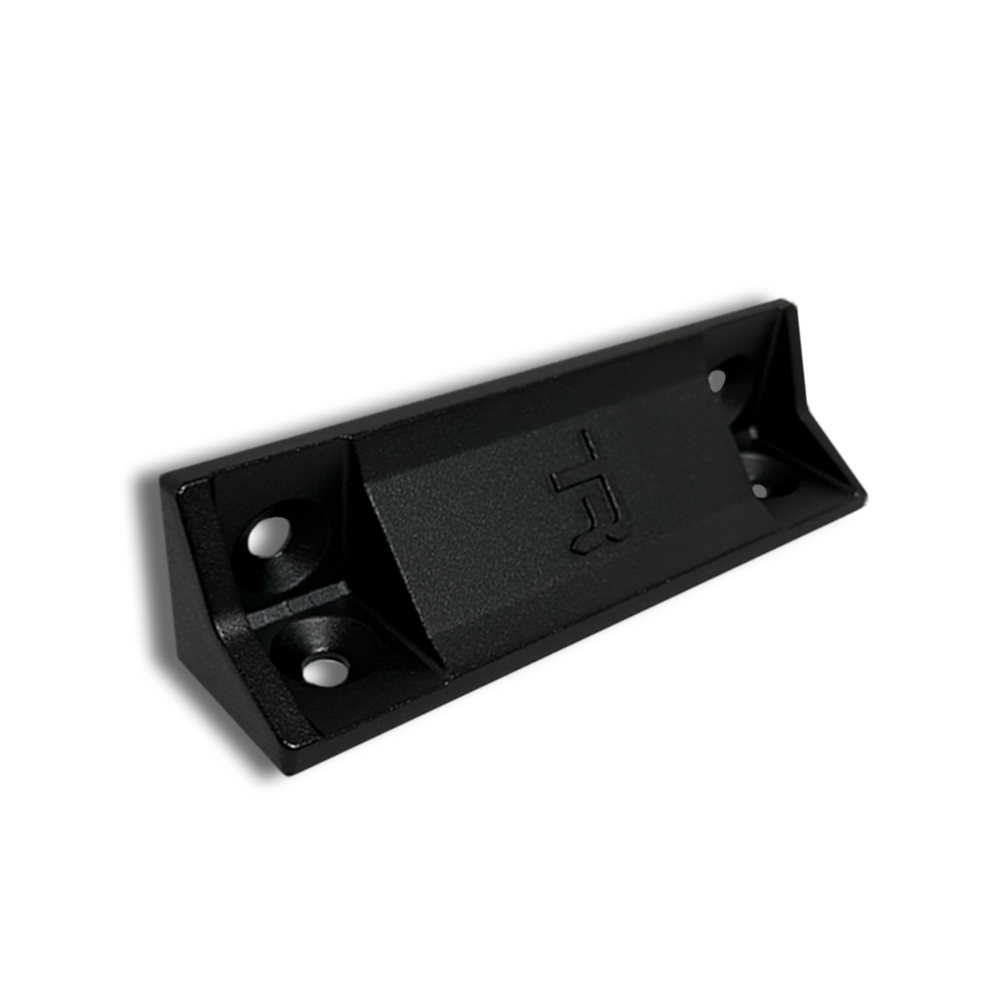

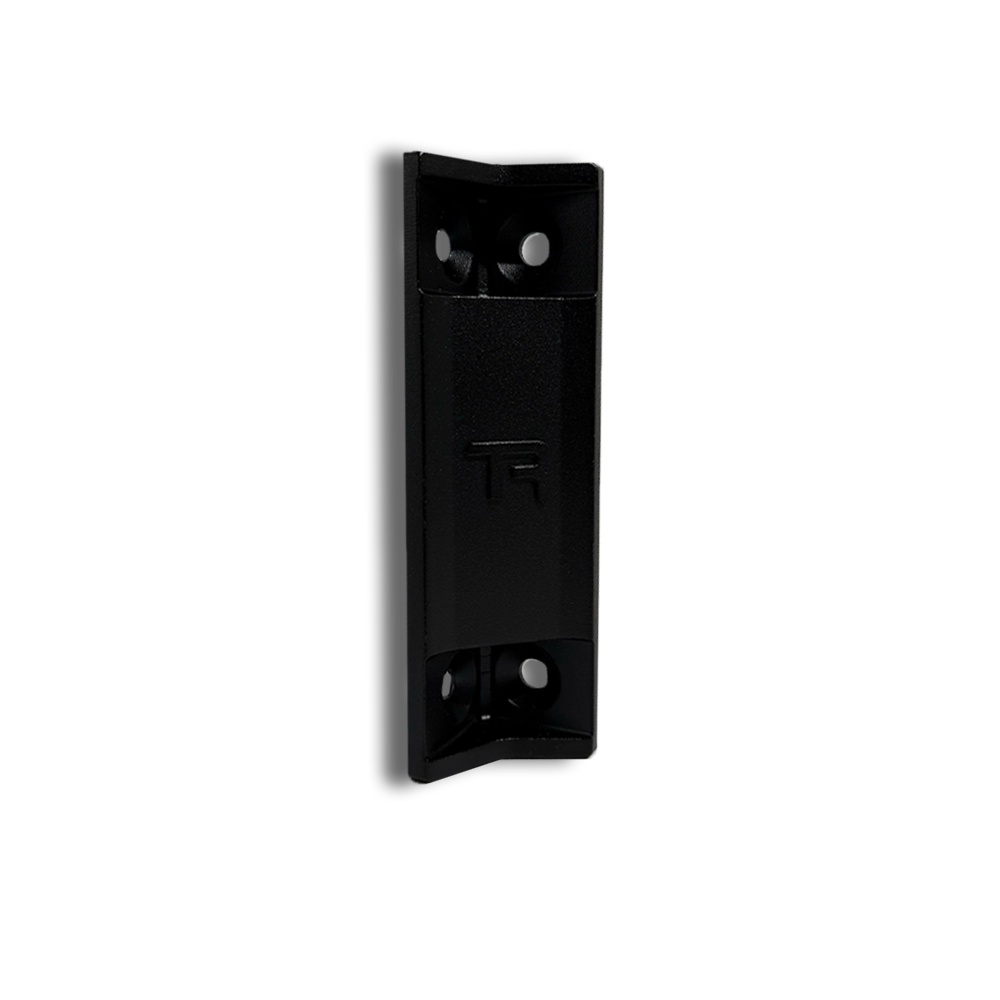

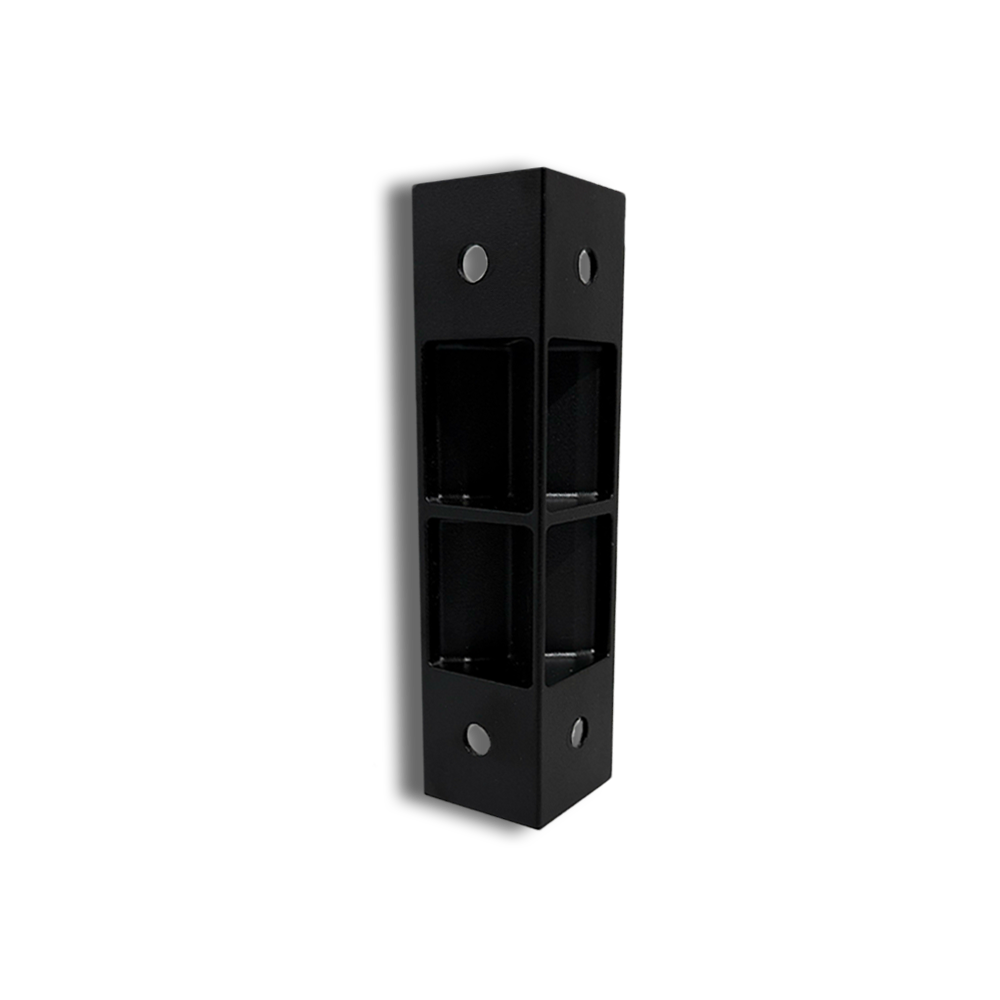

These die-cast aluminium corner brackets, 160 mm high and 40 mm wide, join and reinforce aluminium extrusion on sim racing and flight sim rigs.

Use them to add a cross member, strengthen a joint, build a side support or repair a rig. Die-cast aluminium is strong, rigid and clean-looking.

Sold as a matched pair.

Who the 160 x 40 mm die-cast corner brackets is for

Rig builders and maintainers:

• Reinforcing joints on profile rigs
• DIY cockpit and accessory builds

Features in detail

Die-cast aluminium

High strength and rigidity.

160 x 40 mm

Sized for joints on 160-high profile sections.

Matched pair

Two identical brackets.

Compatibility

For aluminium extrusion with 8 mm slots, typically 160x40 mm sections, as used on our NexusRig aluminium cockpits. Bolts and T-nuts are not included – check your profile size before ordering.

Mounting on aluminium profile rigs

The 8 mm slot standard. Most modern sim rigs use 40 mm-based aluminium extrusion (40x40, 40x80, 40x160) with 8 mm slots. Mounts fix with M8 bolts and T-nuts that slide into the slot, so they can be moved and re-angled at any time.

Rigidity and access. Mount heavy or high-force devices (handbrakes, shifters, wheel bases) as close to a vertical upright or cross member as possible. Leave room to get in and out of the seat.

Tools. A set of hex keys (mainly 6 mm for M8) covers nearly every mount. Snug every bolt, test, then do a final tightening once the position is right.

Setup and use

1. Slide M8 T-nuts into both profiles.
2. Fit the bracket across the joint and bolt it on.
3. Square the joint and tighten.

Care and maintenance

Check bolts occasionally on rigs with high torque or motion.

Specifications

What's in the box

• 2 x die-cast aluminium corner brackets (160 x 40 mm)

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Are bolts included?

No, use M8 bolts and T-nuts from our spare parts.

Which profile does it fit?

8 mm slot extrusion; the 160 mm height suits 160-high sections.

How many in a set?

Two.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.

See all our sim rig spare parts, or browse the complete sim racing range to build your rig.
