Adjustable Levelling Legs with Rubber Feet for Sim Rigs – Set of 4, 25–762 mm Height, 320 kg

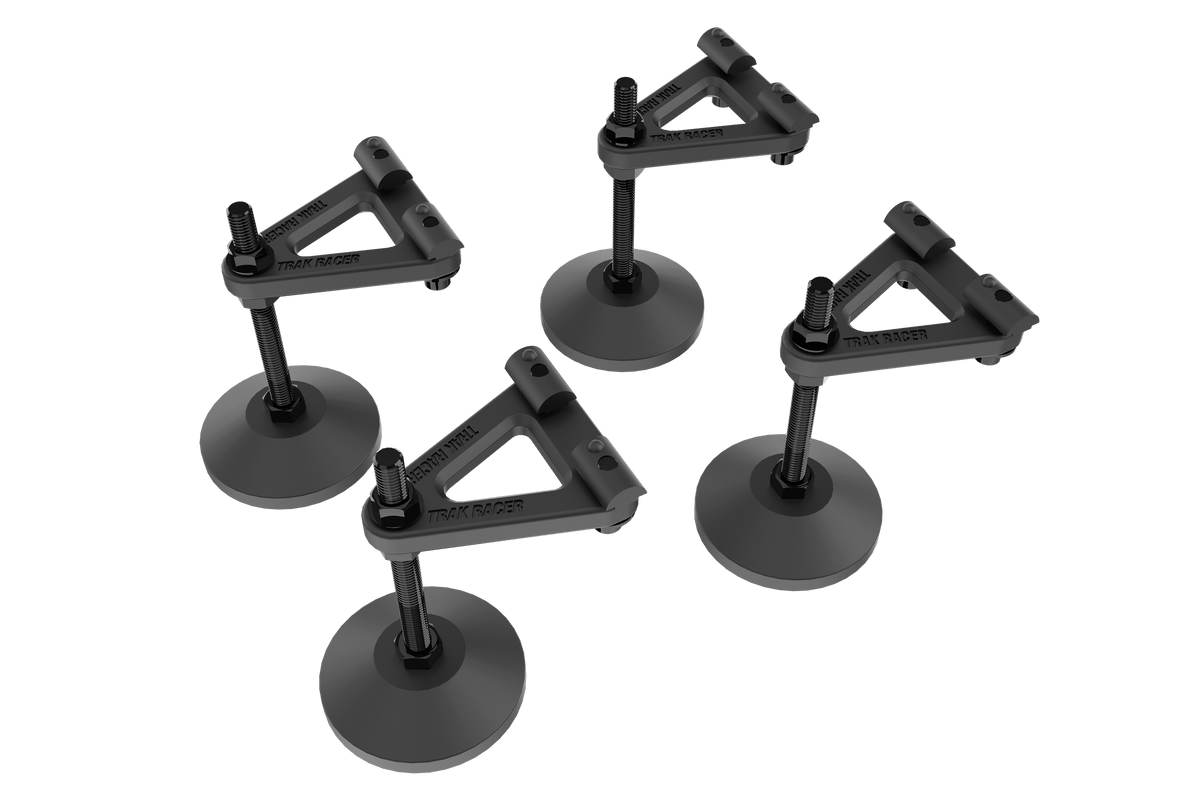

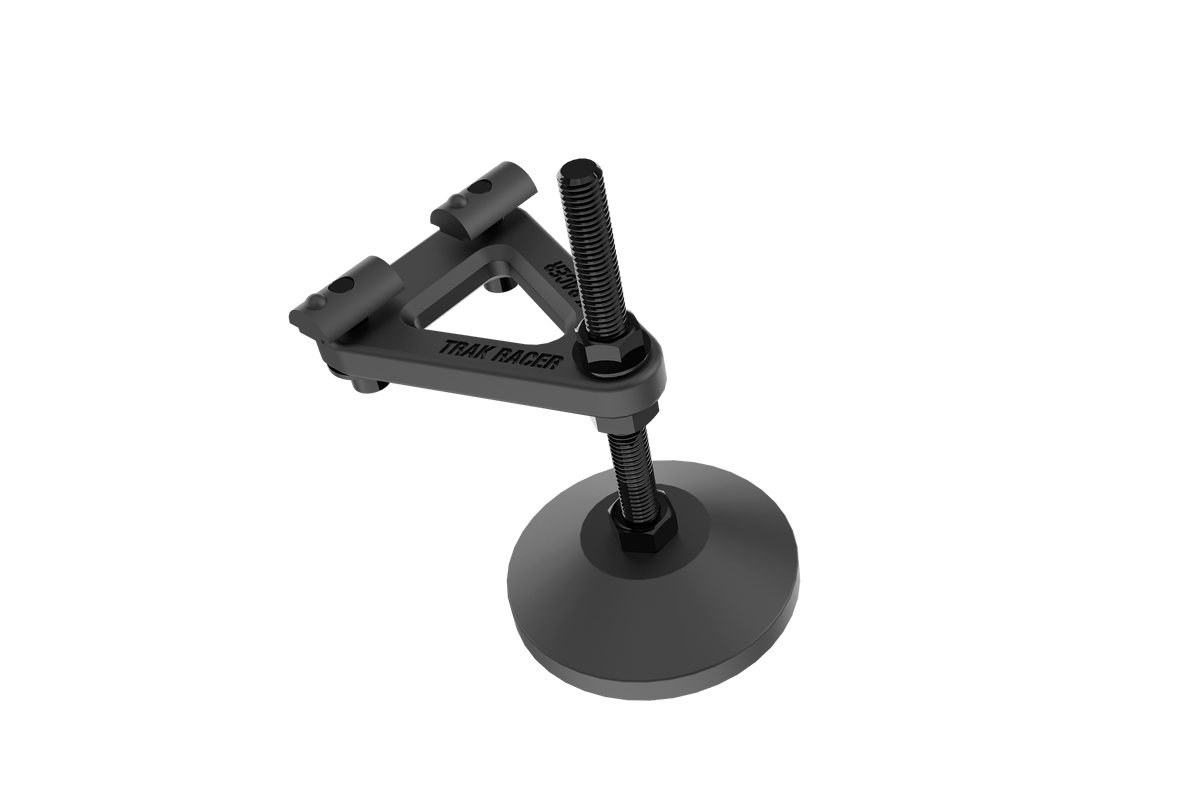

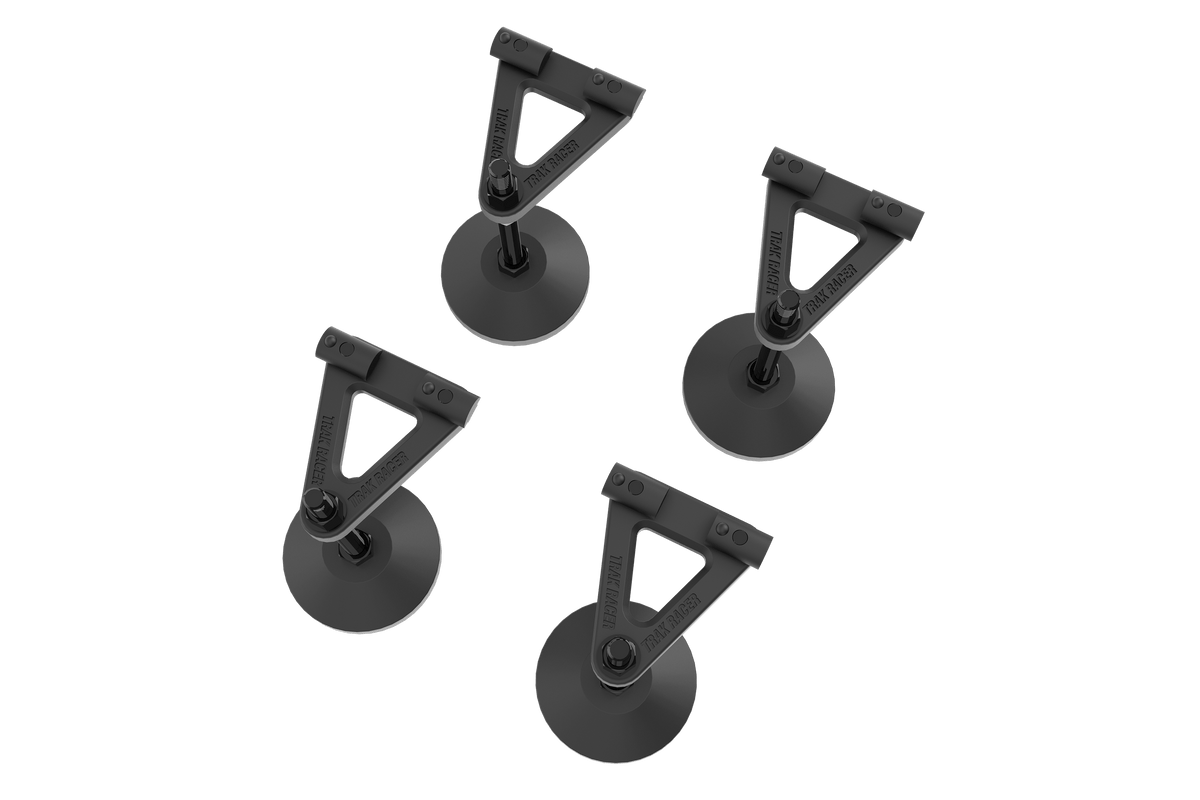

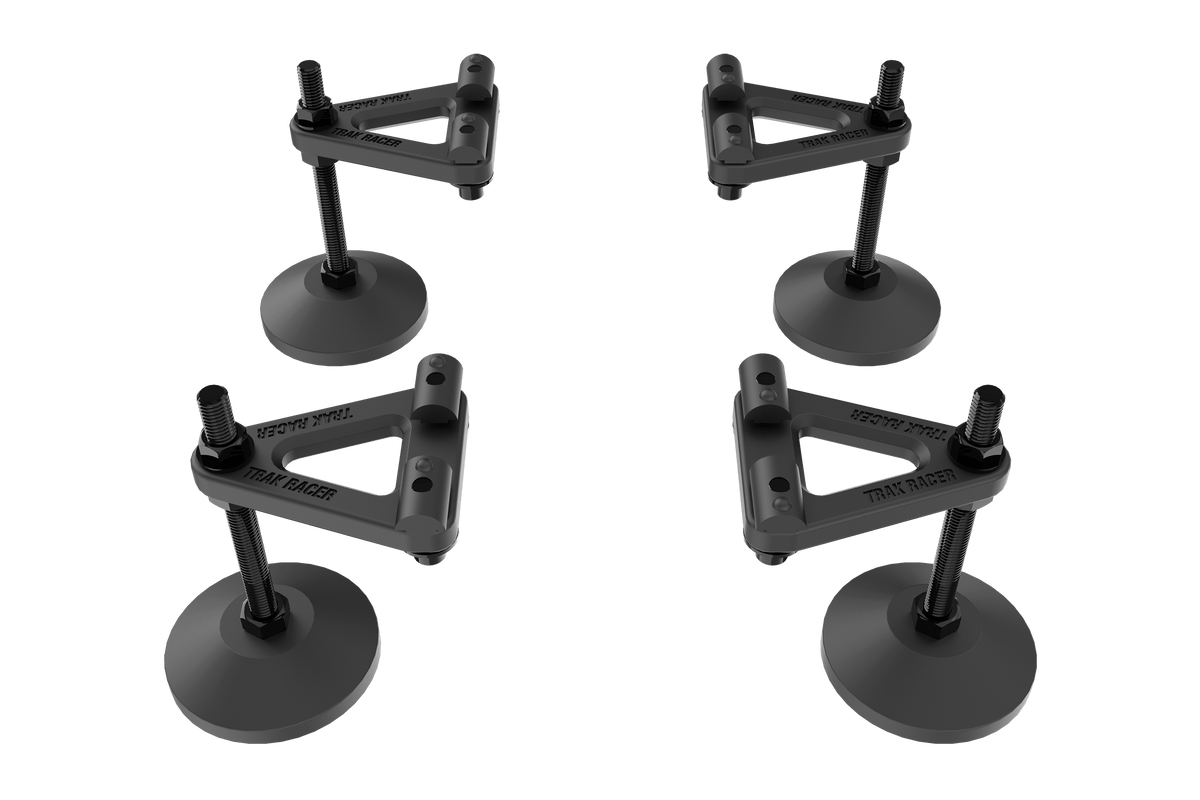

Adjustable levelling legs with rubber feet: overview

These levelling legs lift and level your aluminium profile cockpit on uneven floors, and the rubber feet protect the floor and grip it.

Each leg runs on an M10 threaded rod, so the chassis can sit anywhere from 25 mm to 762 mm above the floor, which also makes room for motion actuators, shakers or storage underneath.

The set of four carries up to 320 kg (80 kg per foot) and comes with mounting plates, screws and T-nuts.

Who the adjustable levelling legs with rubber feet is for

Profile rig owners:

• Uneven or delicate floors
• Rigs that need ground clearance
• Commercial setups

Features in detail

Wide height range

25–762 mm floor to chassis.

Rubber feet

Grip and floor protection.

High load

320 kg (80 kg per foot).

Complete set

Plates, screws, T-nuts.

Compatibility

Rigs: our aluminium profile cockpits (NexusRig Fortress, Formula Hybrid, Titan, Vanguard, Sprint, Rookie, NexusHaul Truck) and other 8 mm T-slot extrusion rigs.

Choosing and building a sim rig

Rigidity first. A cockpit exists so the force your wheel base produces goes into your hands, not into a flexing frame. Direct drive bases need a stiff front mount; aluminium profile rigs (40 mm and 80 mm extrusion with 8 mm slots) are the stiffest and most adjustable, while steel tube rigs are lighter and quicker to assemble.

Driving position. GT position puts you upright with the pedals low; formula position reclines the seat and raises the pedals. Check whether the cockpit, seat bracket and pedal mount allow the position you want.

Plan the extras. Monitor stands, shifter and handbrake mounts, keyboard trays and PC shelves bolt onto most profile rigs. Planning them up front avoids drilling or re-assembling later.

Setup and use

1. Bolt a mounting plate to each corner of the chassis.
2. Screw in the feet.
3. Level the rig and lock the rods.

Care and maintenance

Recheck the level and lock nuts after moving the rig.

Specifications

What's in the box

• 4 mounting plates
• 4 rubber feet on M10 rods
• 8 M8 screws
• 8 M8 T-nuts

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Will it level my rig on an uneven floor?

Yes, each foot adjusts on its own.

How much weight can it hold?

320 kg in total.

Do they reduce vibration?

Partly; for isolation see our anti-vibration feet.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
