4-Channel Bass Shaker Amplifier Kit with 2 Compact Shakers – Pedal, Shifter & Handbrake Haptics
€398.00
Delivery expect 4-8 business days.

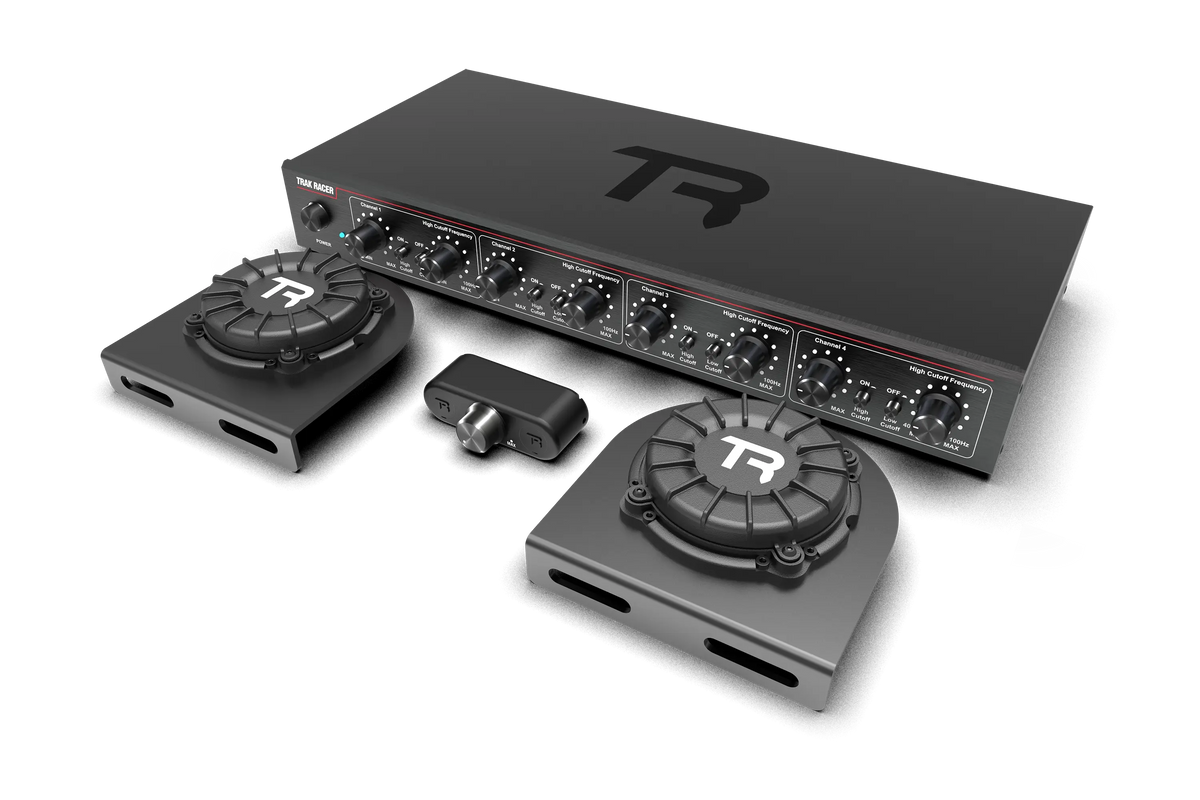

4-channel bass shaker amplifier kit: overview
This bass shaker amplifier kit puts tactile feedback exactly where your hands and feet meet the car. Mount the two compact shakers on your pedals, shifter or handbrake and you feel ABS pulses, wheel lock-ups, wheelspin, kerbs and road texture right at the control – not as a general rumble through the seat.
The 4-channel Class-D amplifier drives each shaker independently with clean, precise vibration, and has two spare channels so you can add more shakers later.
Beyond racing, it brings engine rumble, runway vibration, turbulence, recoil and deep bass to flight sims, shooters and music.
Who the 4-channel bass shaker amplifier kit is for
Drivers who want to feel grip:
- Sim racers upgrading beyond seat-only haptics
- GT, formula, rally and drift drivers
- Drivers with load cell pedals who want ABS feedback
- Flight and FPS players who want tactile effects
Features in detail
Feedback through your feet
Pedal shakers deliver ABS activation, lock-ups, threshold braking cues, traction loss and road texture where you need them.
Living shifter
On a shifter, a shaker adds mechanical engagement, drivetrain vibration and engine feel to each change.
Handbrake feel
On a handbrake, it gives rear slip and surface feedback for rally and drift.

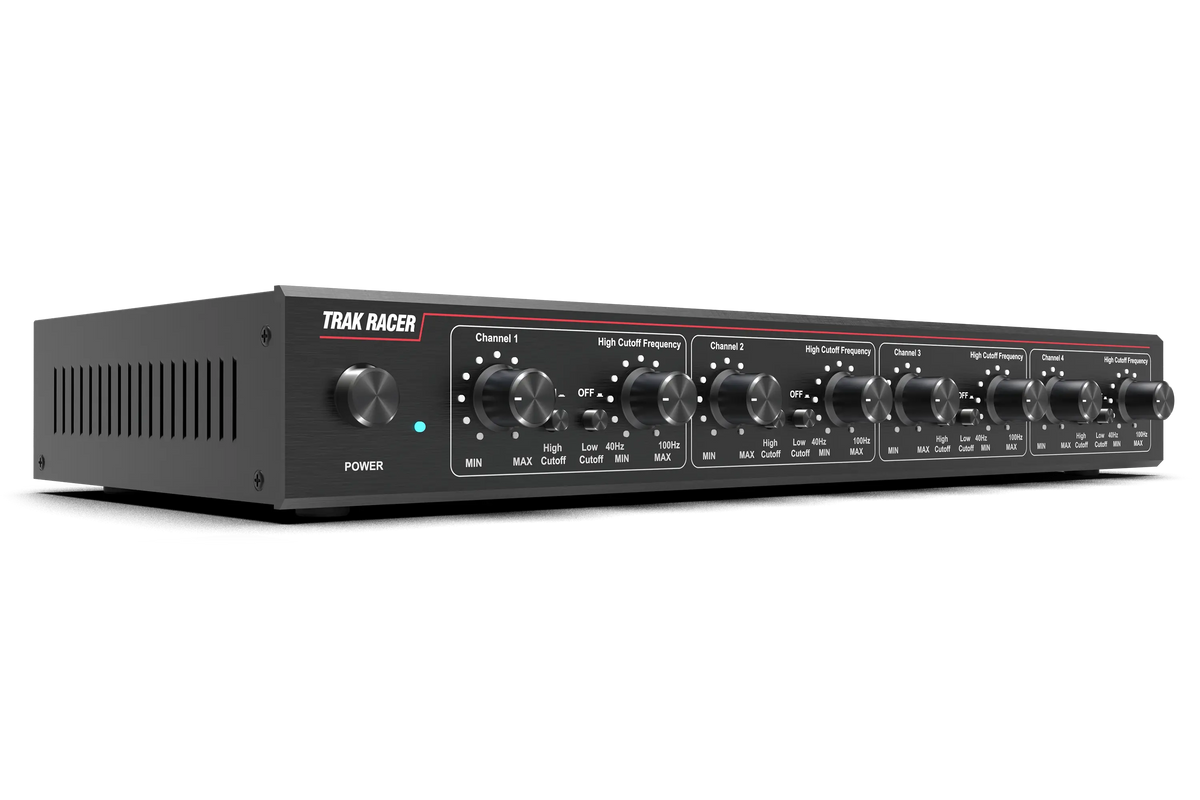

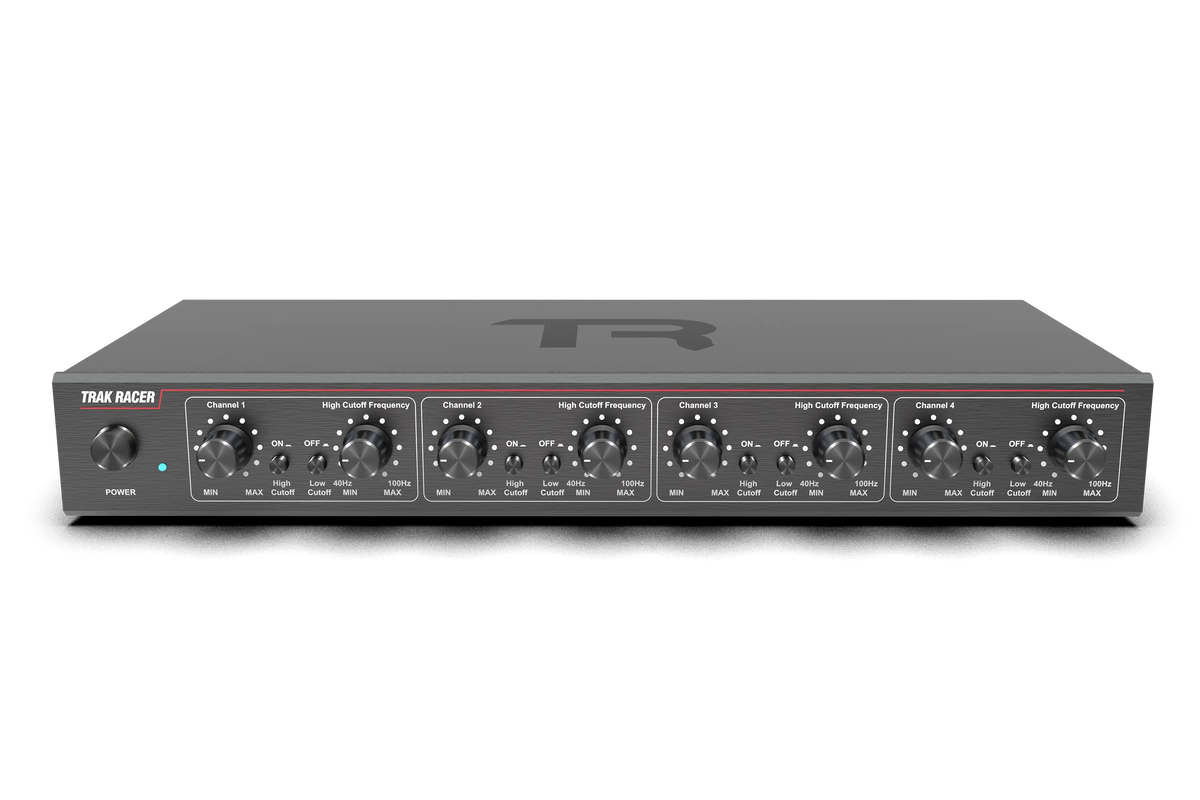

4-channel Class-D amplifier
10 W RMS per channel (20 W peak) at 8 Ω, adjustable low-pass from 40 to 100 Hz.

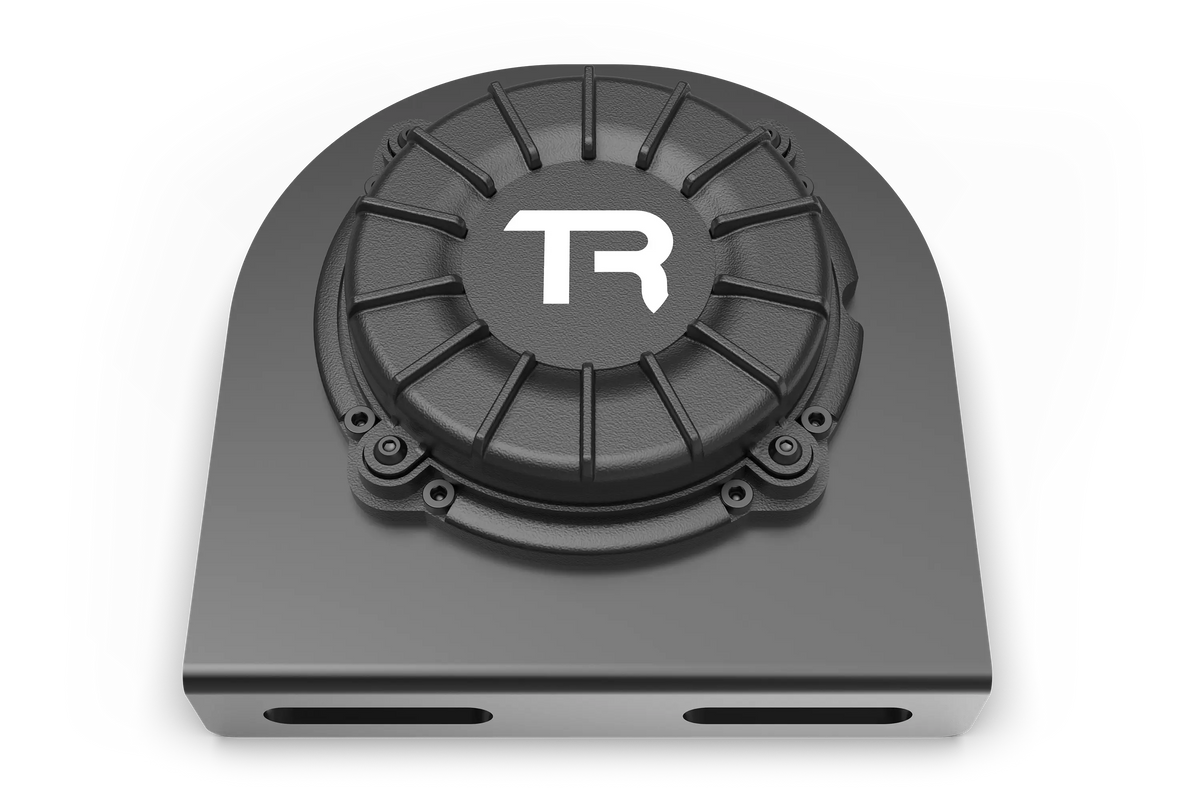

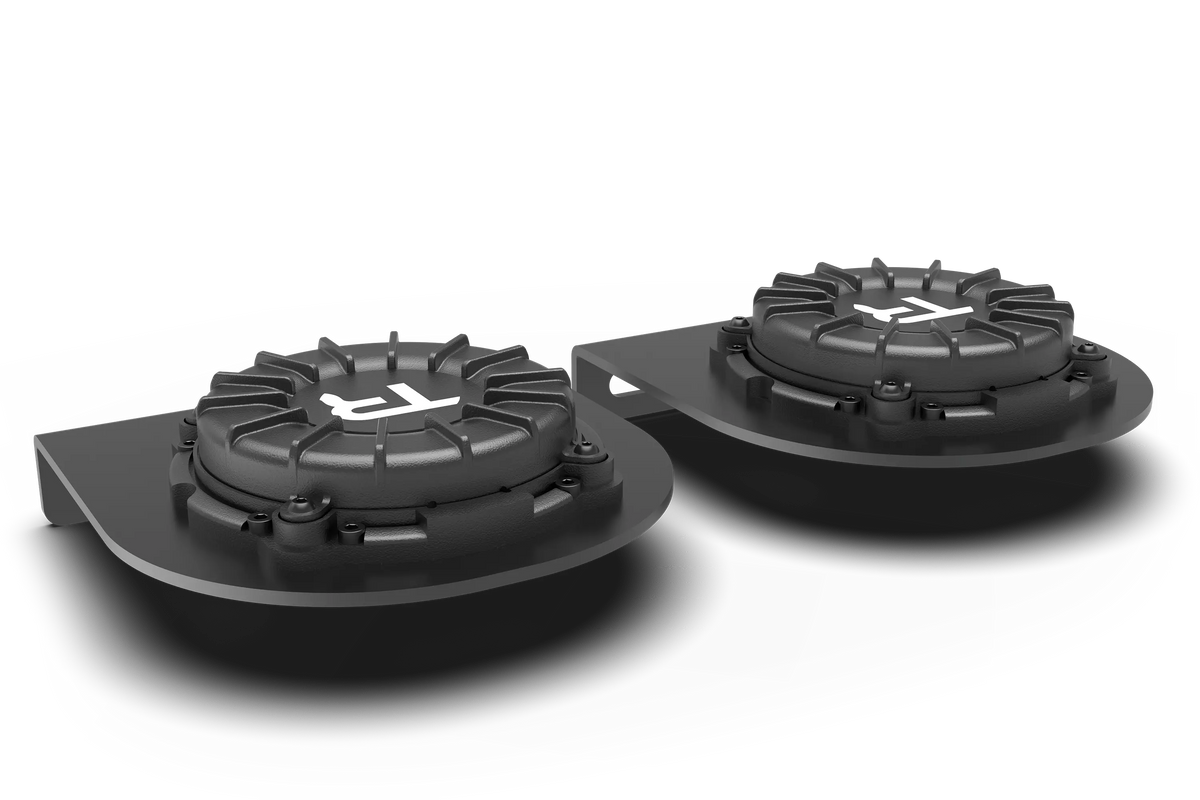

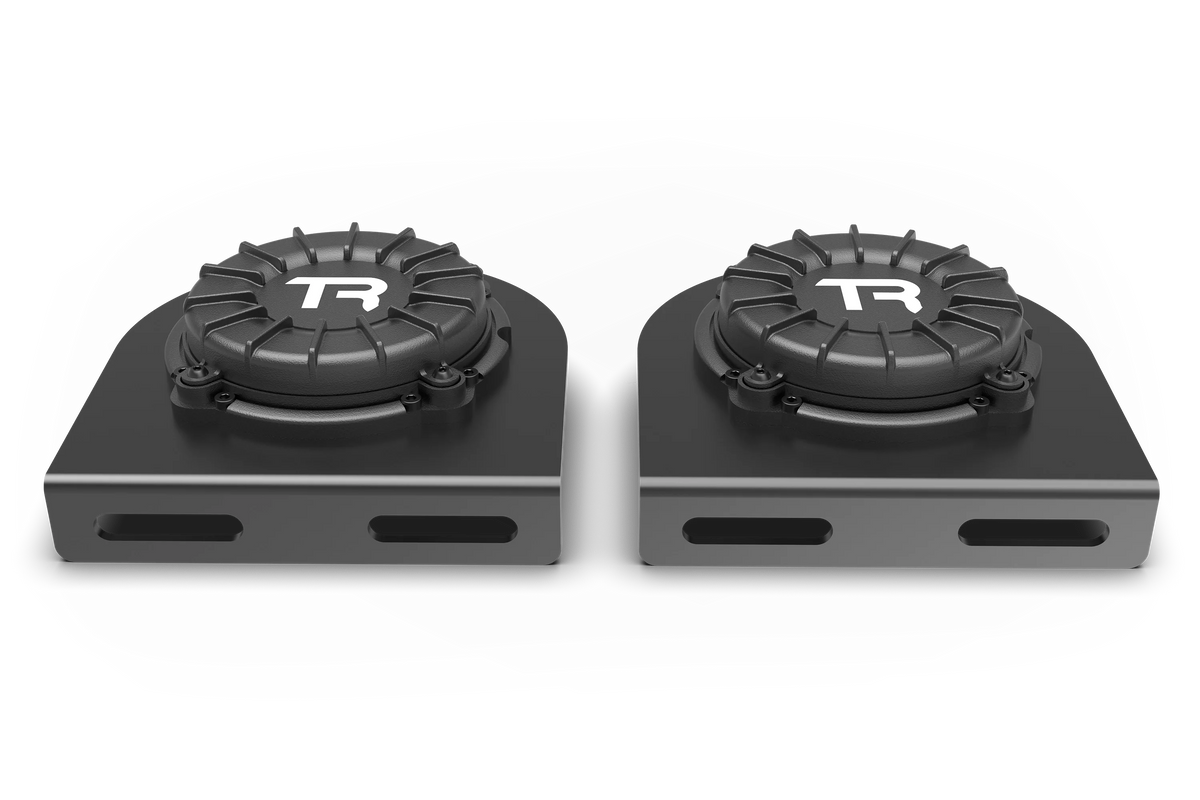

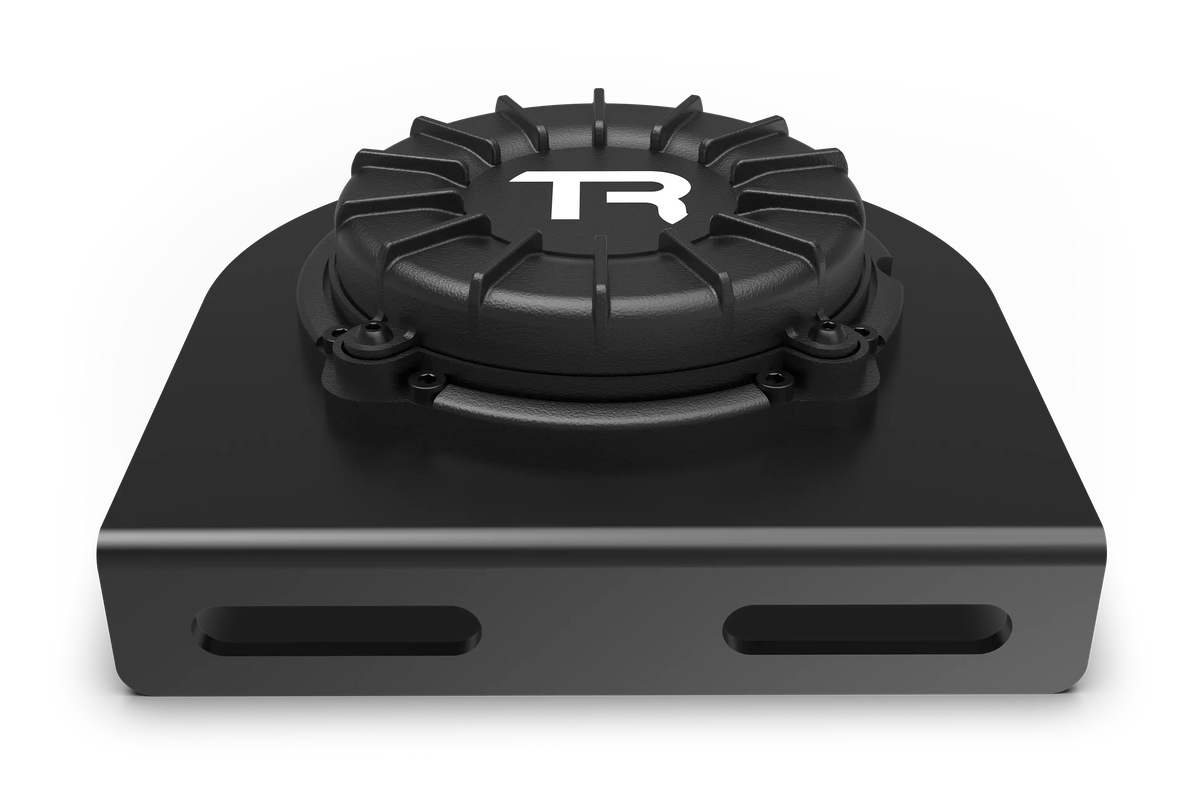

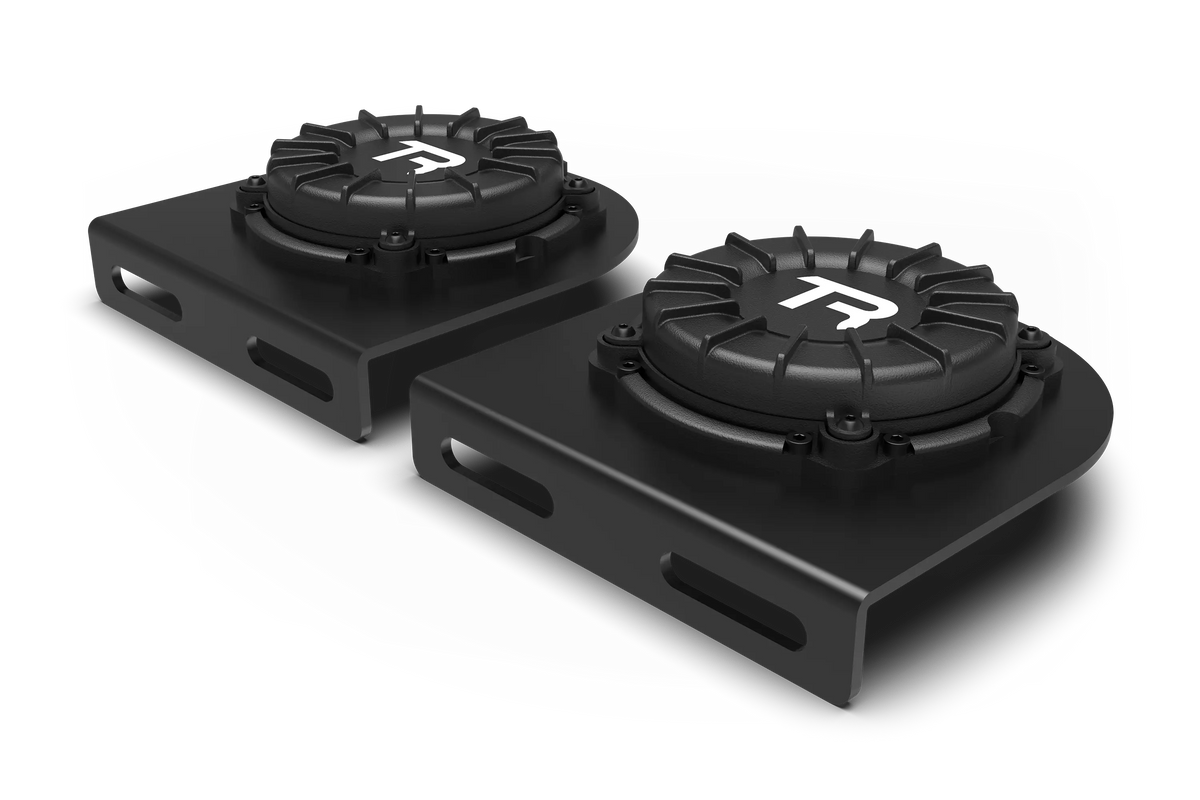

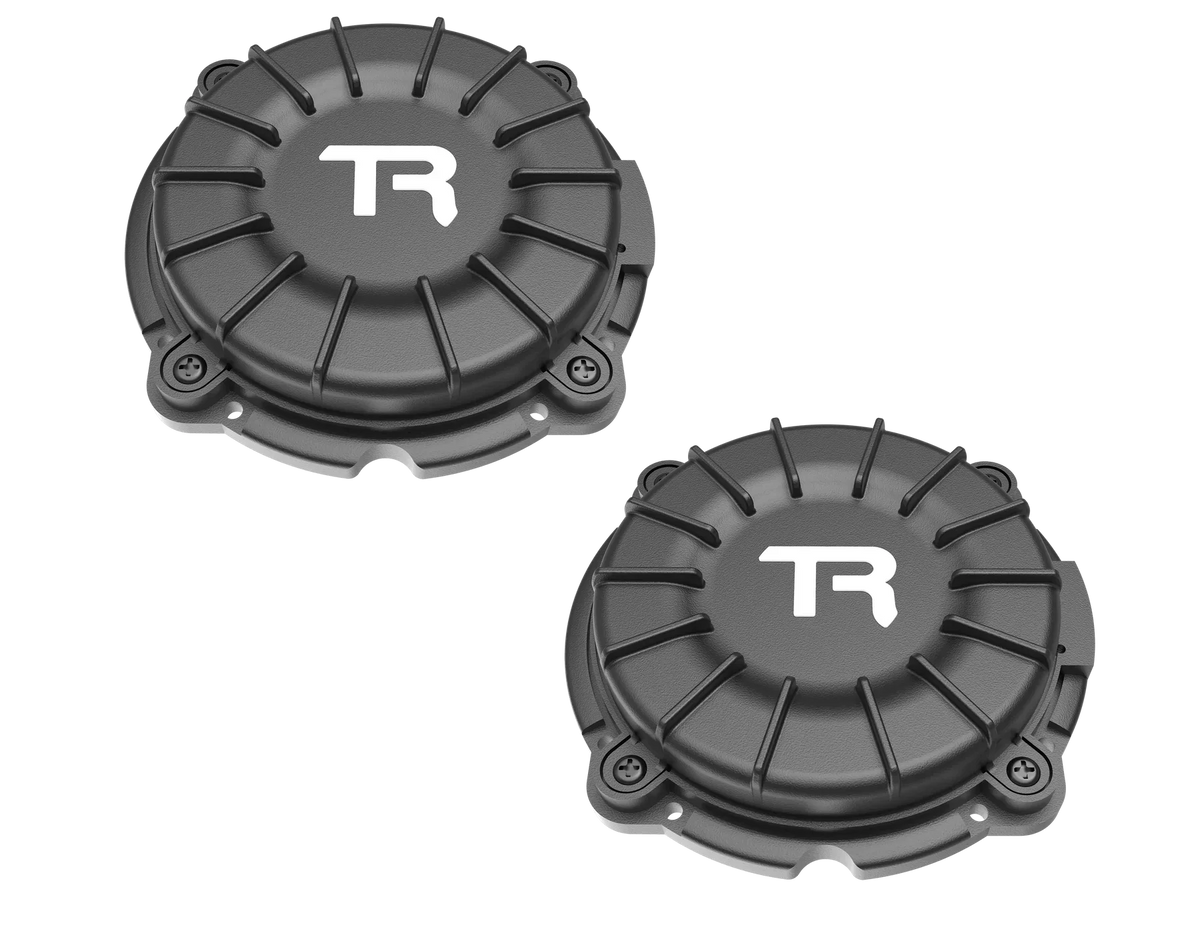

Compact shakers
98 x 98 x 31 mm and 0.35 kg each, easy to mount on controls.
Expandable
Two free channels for extra shakers.
Compatibility

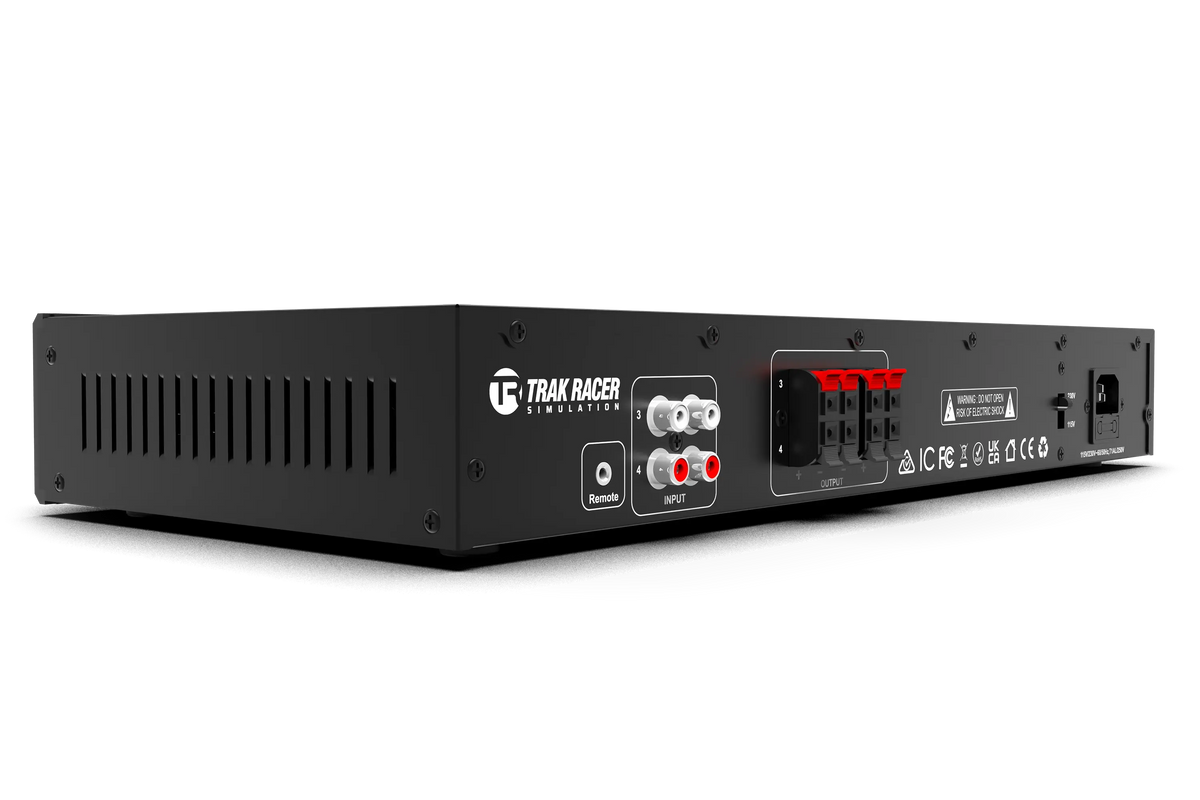

Driven by audio or telemetry software such as SimHub on PC. Inputs: 4 x RCA. Power: 115–240 V AC.
Shakers mount to pedals, shifters and handbrakes on any rig; mounting position depends on your hardware.
Adding motion and haptics to a rig
Haptics vs motion. Bass shakers turn engine, road and kerb effects into vibration you feel through the seat and pedals. Motion actuators physically move the rig to simulate pitch, roll and heave. Both add information that helps you feel grip.
Power and software. Shakers need an amplifier and a telemetry app such as SimHub; motion systems come with their own controller and software profiles for each game.
Isolation. Keep screens on a freestanding stand and use isolation feet so vibration and motion stay in the rig and not in the floor or the monitors.
Setup and use
- Fix the shakers firmly to the pedal, shifter or handbrake you want to bring to life.
- Connect the shakers to the amplifier outputs and the amplifier inputs to your PC's audio output.
- Configure effects (ABS, slip, RPM, gear shift) in SimHub and assign them to channels.
- Adjust the low-pass filter and gain until the effects are clear but not overpowering.
Care and maintenance
Check shaker mounting screws after the first sessions, as vibration can loosen them. Keep the amplifier ventilated and away from liquids.
Specifications
| Amplifier | 4-channel Class-D |
| Inputs | 4 x RCA |
| Output | 10 W RMS / channel (20 W peak) @ 8 Ω |
| Input sensitivity | 350 mV |
| Frequency response | 30–100 Hz ±3 dB |
| Low-pass | 40–100 Hz adjustable |
| THD / SNR | 0.05% / 95 dB |
| Power | 115–240 V AC, 80 W max |
| Shakers | 2 x compact shakers, 98 × 98 × 31 mm, 0.35 kg |
| Shaker impedance | 8 Ω ±10% |
| Shaker range | 20–200 Hz, resonance 33 Hz |
| Shaker power | 10 W nominal, 20 W max |

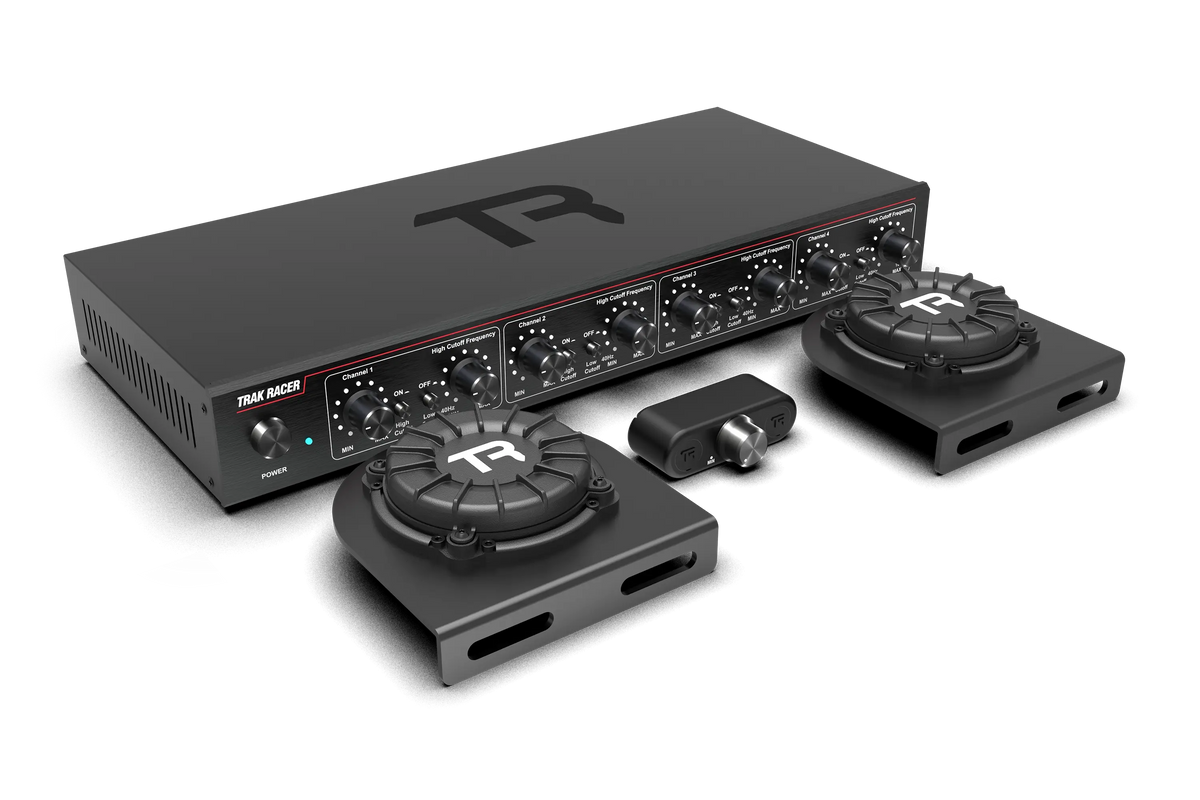

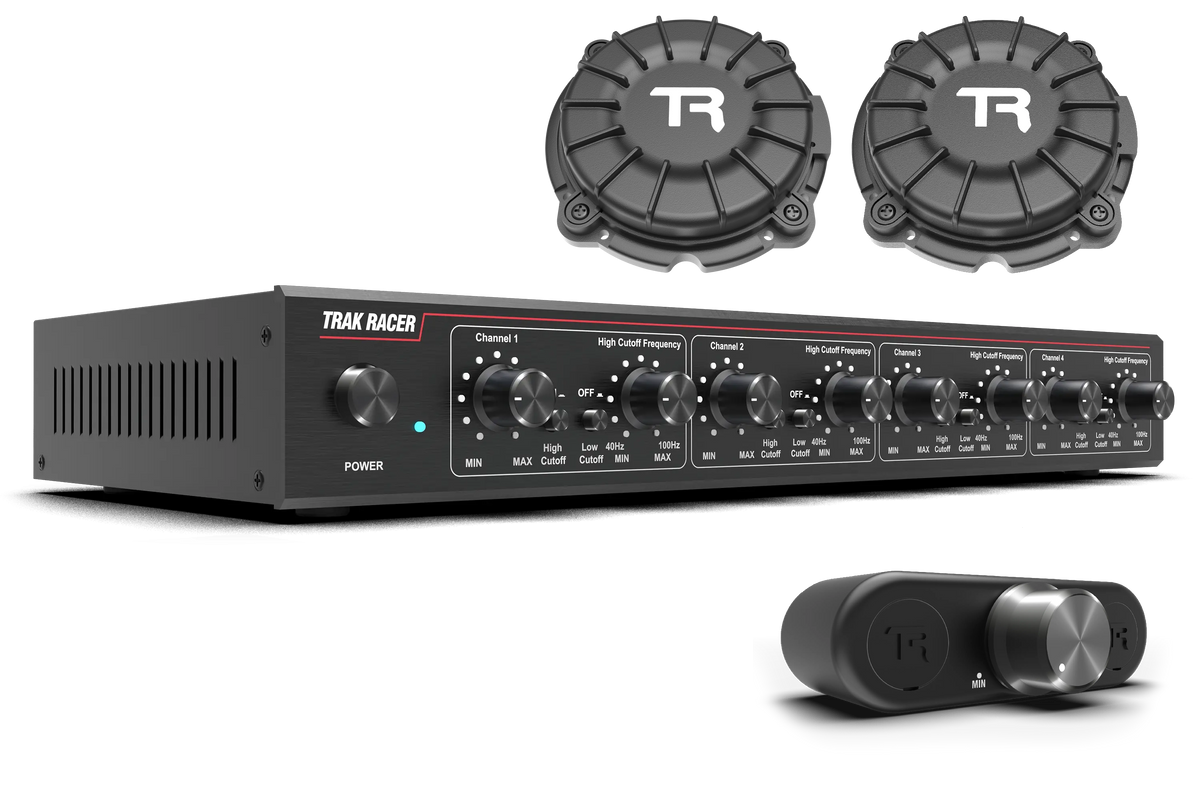

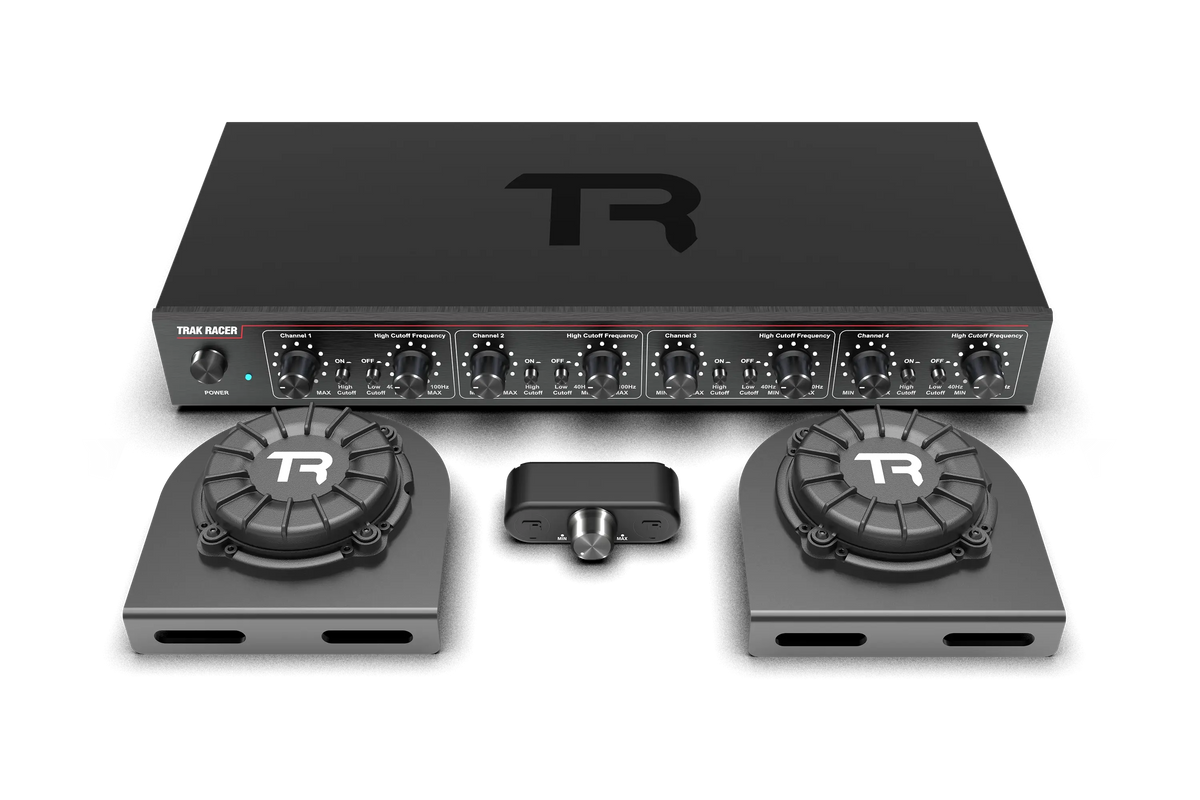

What's in the box
- 1 x 4-channel Class-D amplifier
- 2 x compact bass shakers
- Cables and mounting accessories as supplied
Shipping, returns and warranty
Shipping
Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.
Returns
You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.
Warranty
Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.
Frequently asked questions
Where should I mount the shakers?
On the brake and throttle pedals for ABS and slip, or on the shifter and handbrake.
What software do I need?
SimHub (PC) is the usual choice for telemetry-based effects.
Can I add more shakers?
Yes, the amplifier has four channels; two are free.
Is this a seat shaker?
No, these compact shakers are for controls. For seat-mounted haptics, see our 100 W shakers.
How long does delivery take?
Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.
Can I return it if it is not right for me?
Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.
Is it covered by a warranty?
Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
