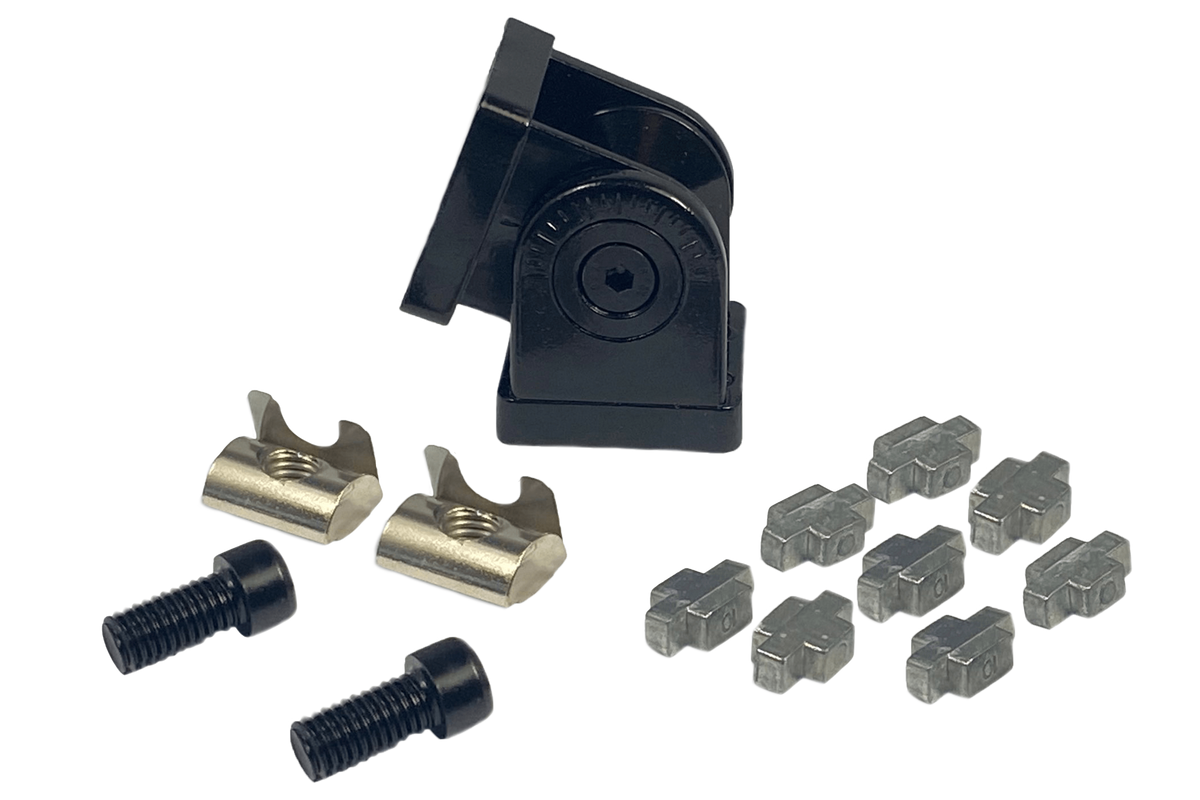

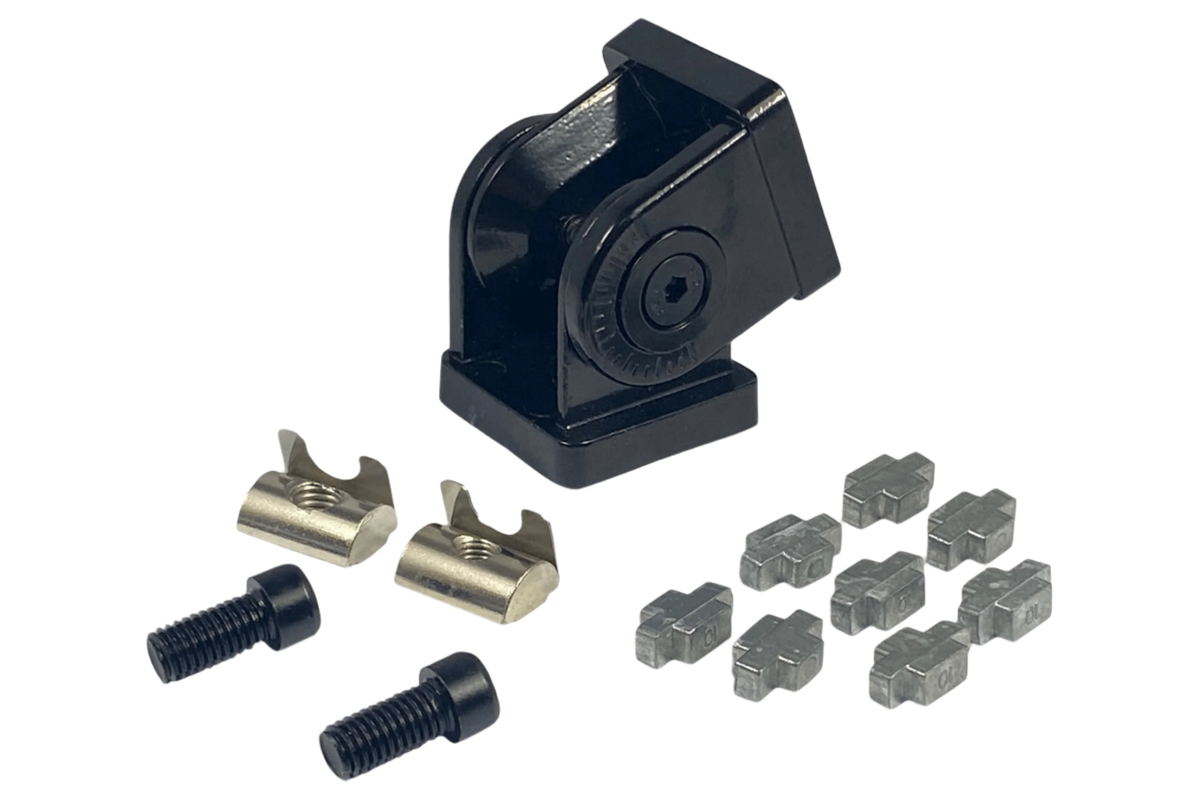

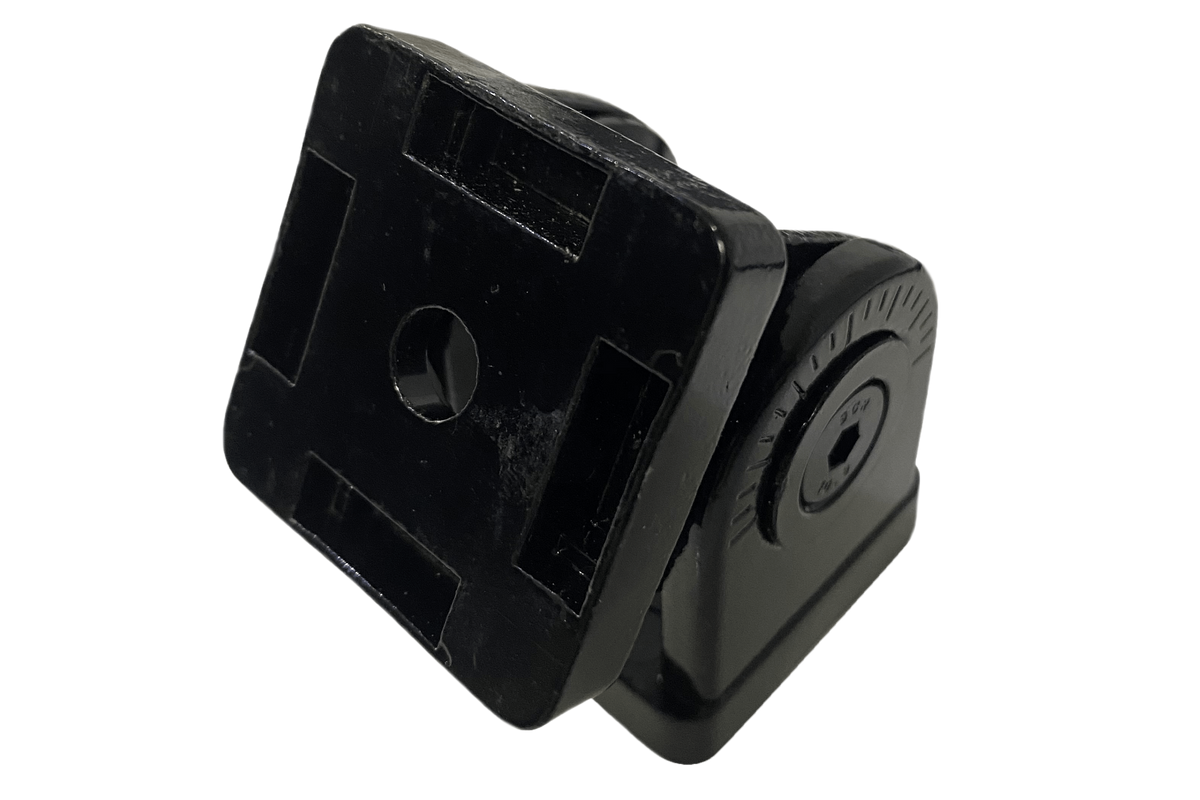

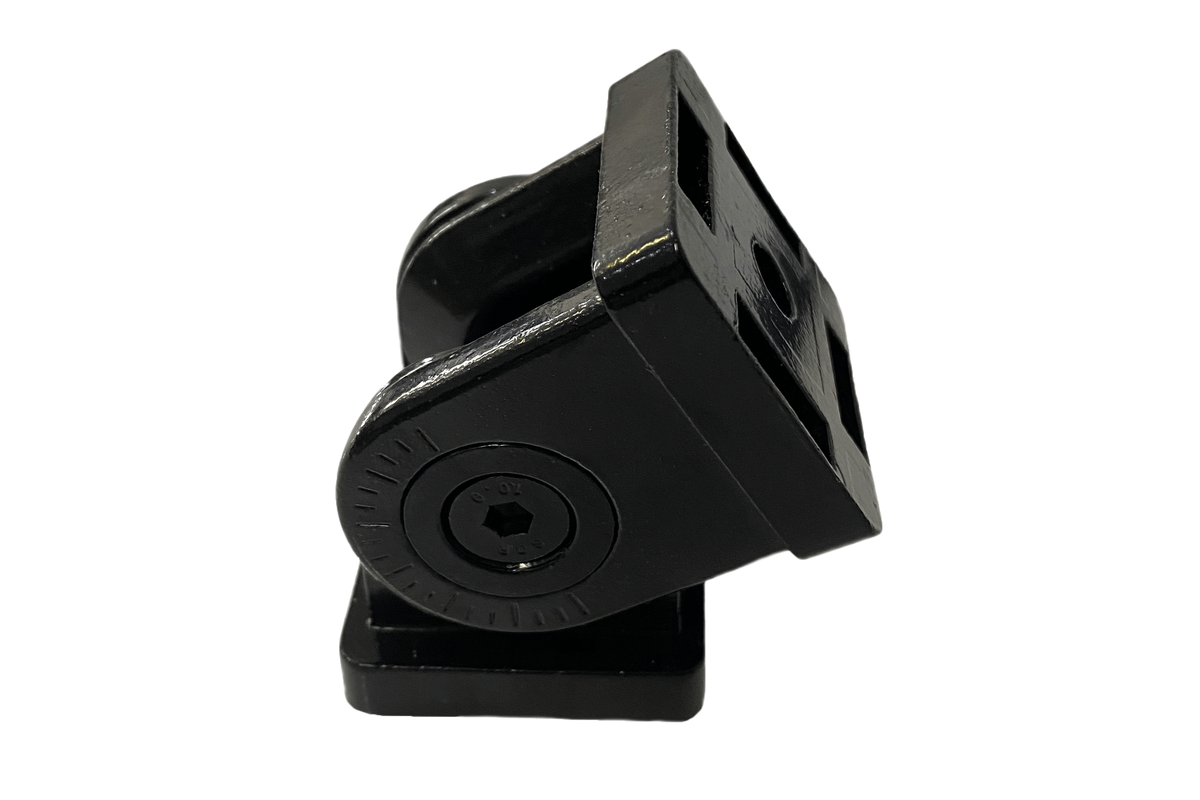

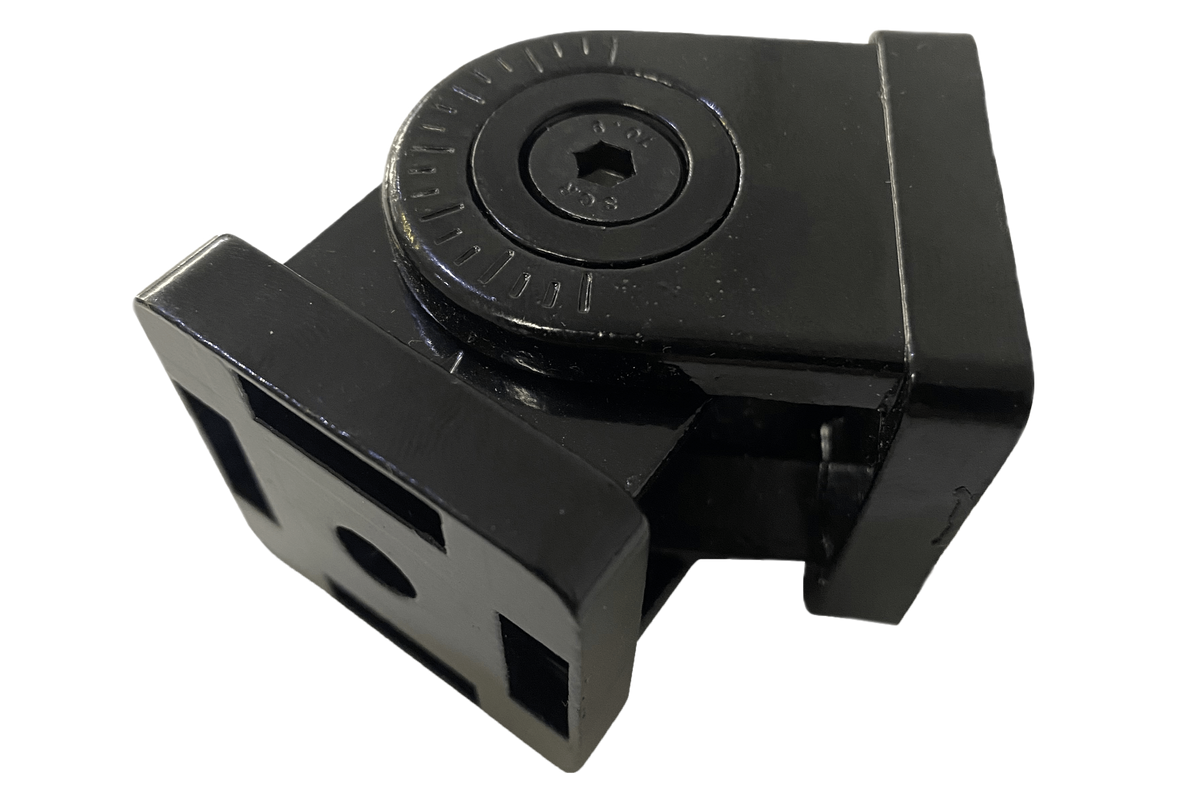

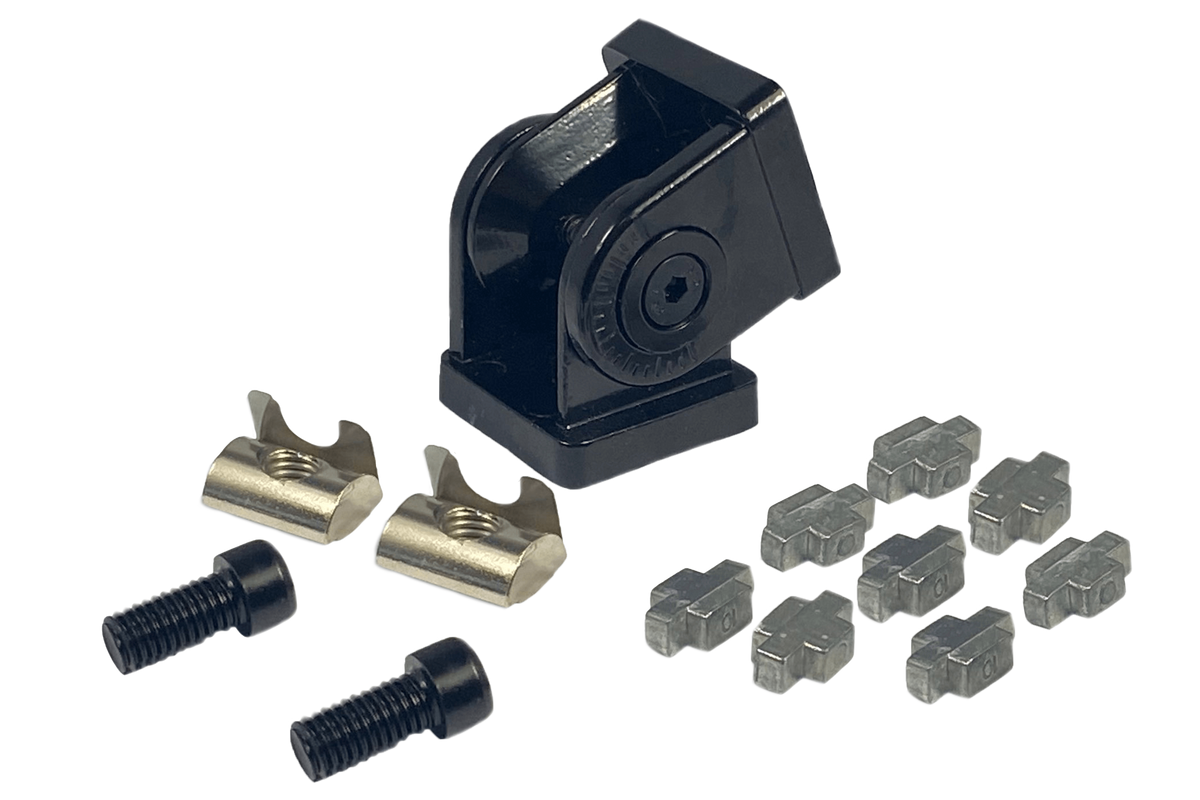

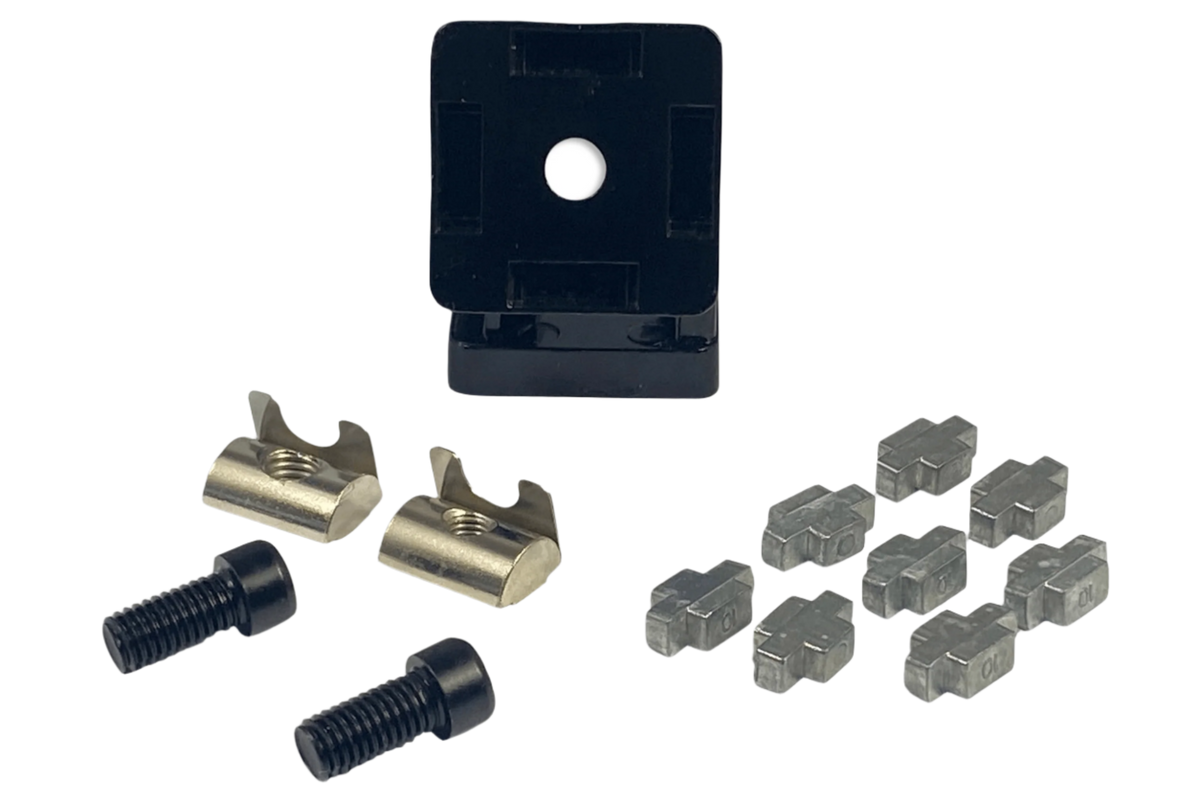

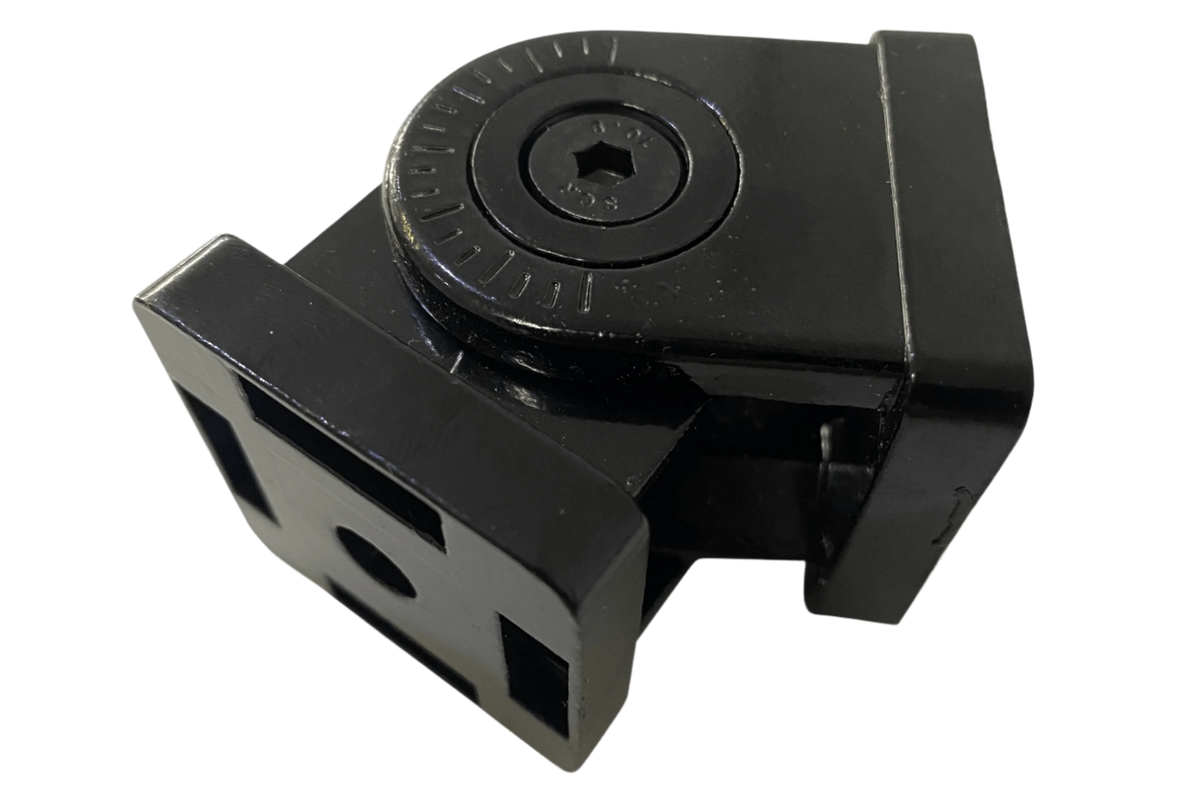

40x40 Pivot Joint Connector for 8 mm Slot Aluminium Profile – 180° Hinge, Zinc Alloy

40x40 pivot joint connector: overview

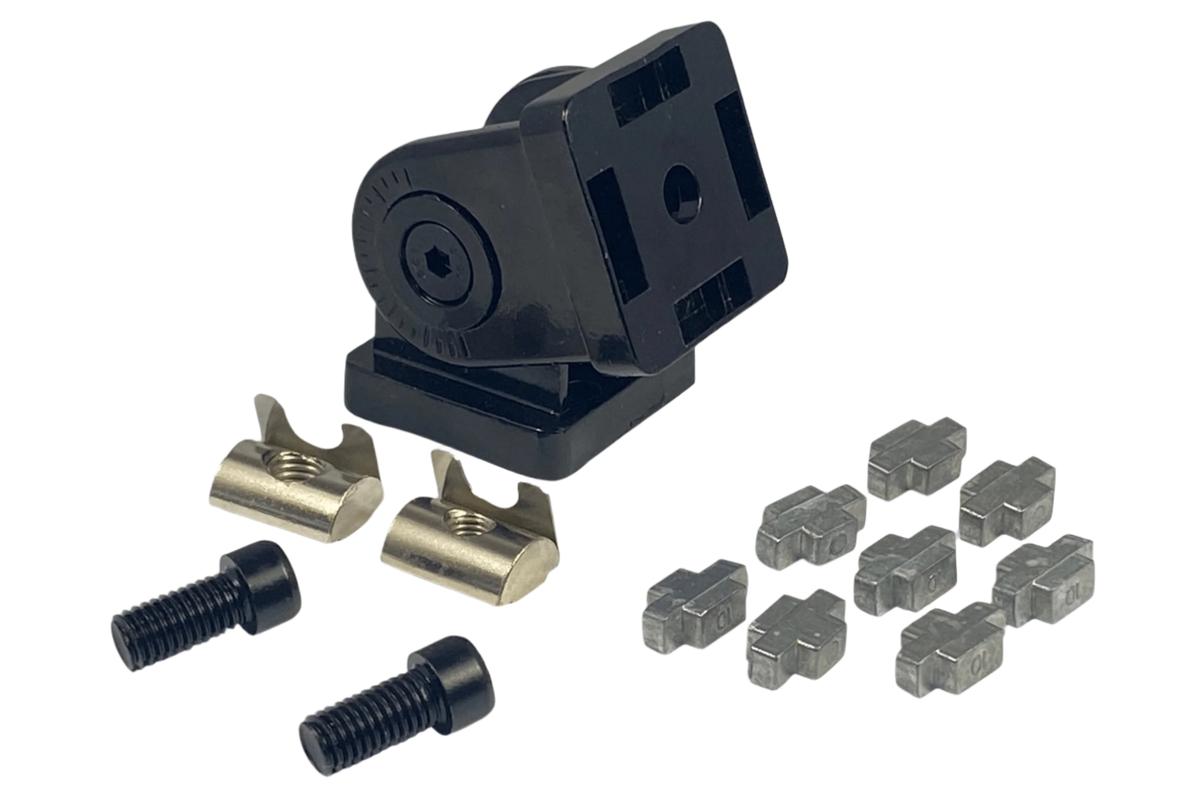

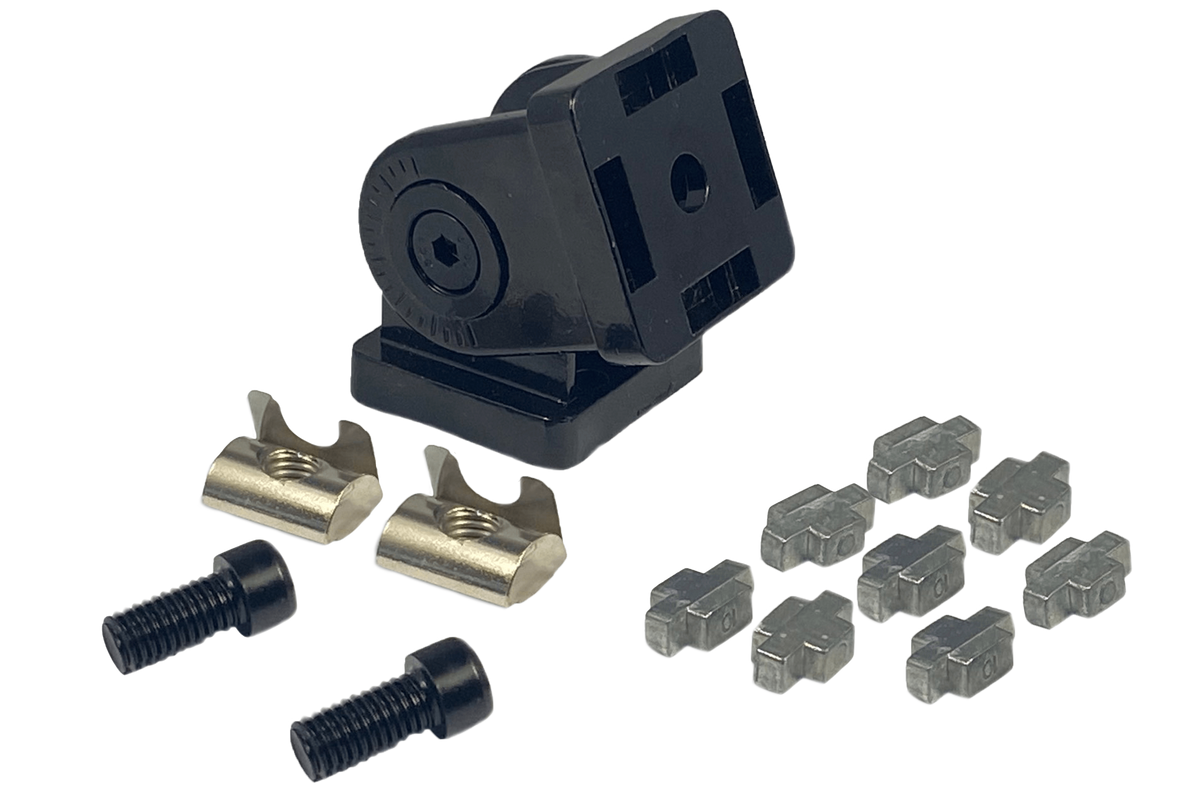

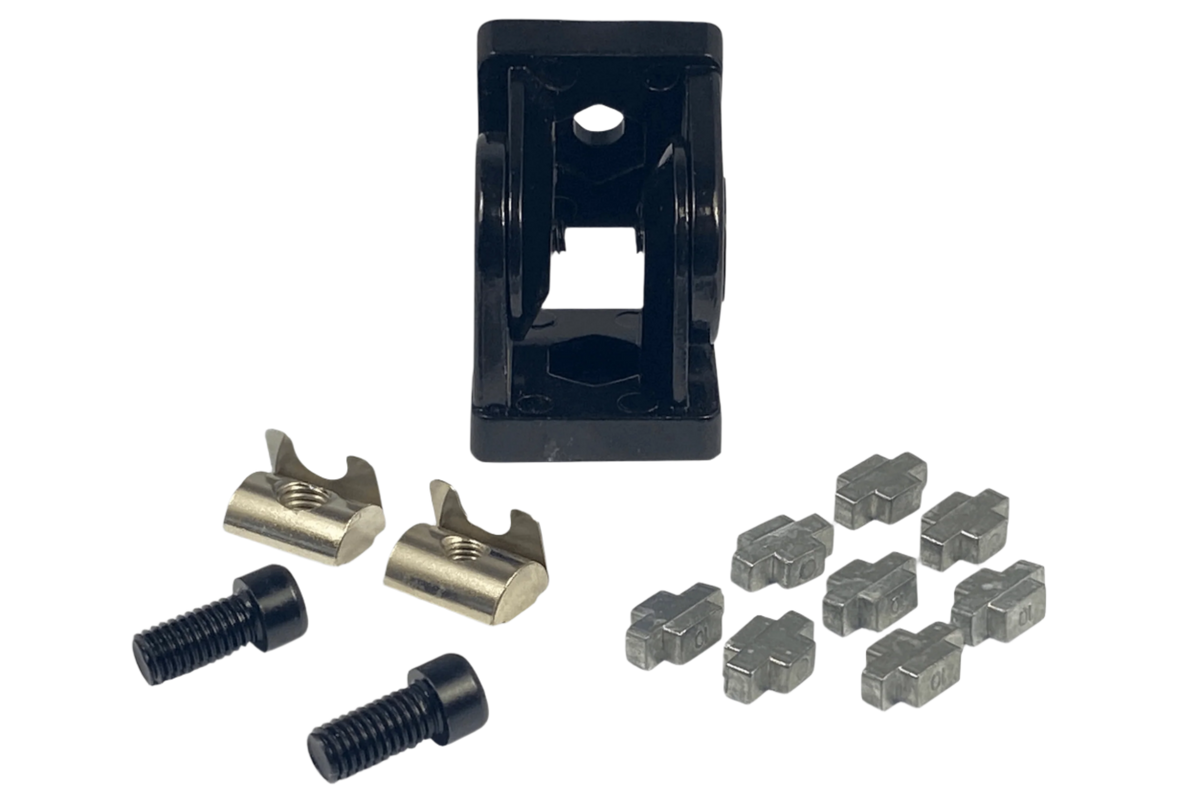

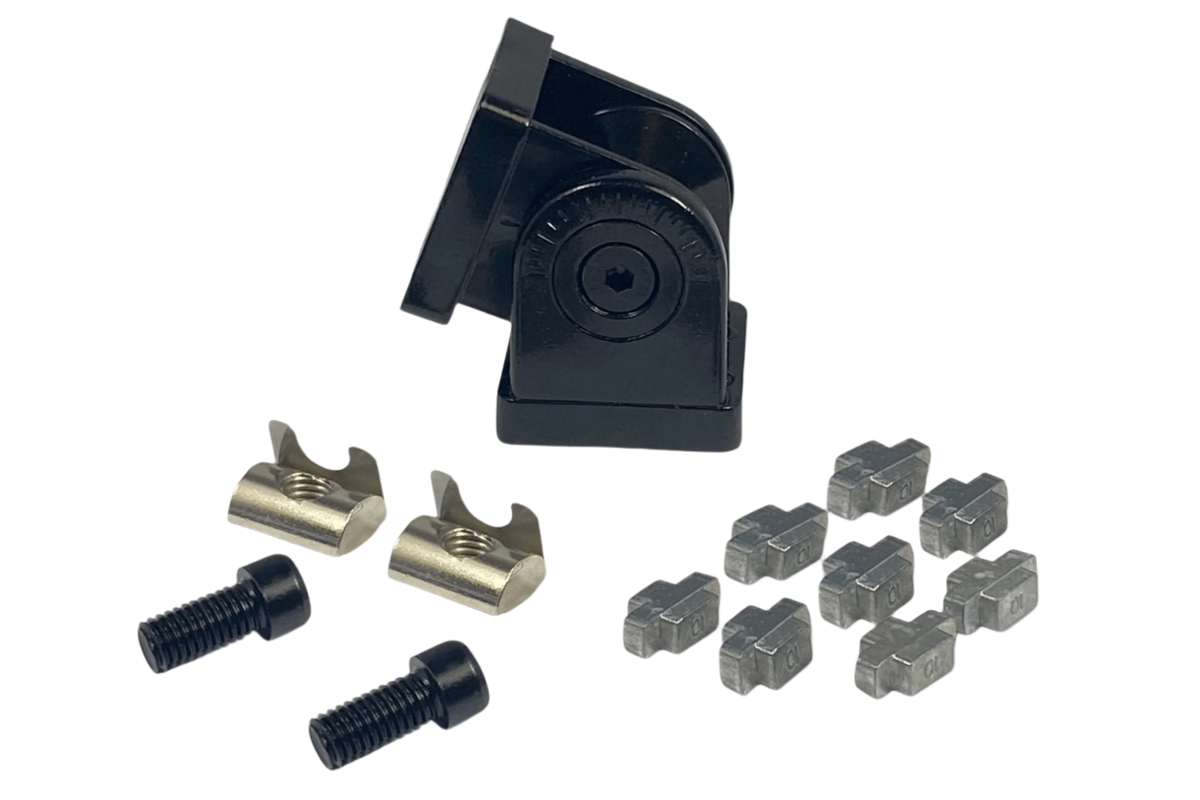

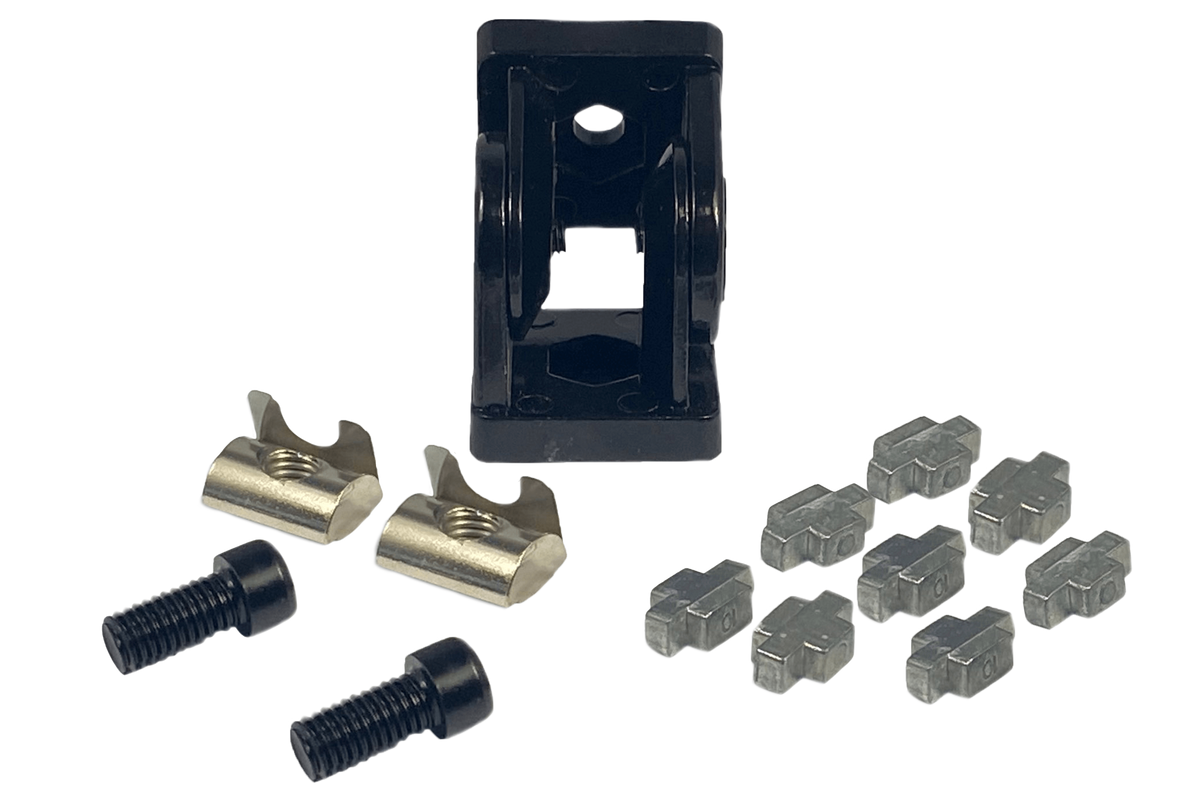

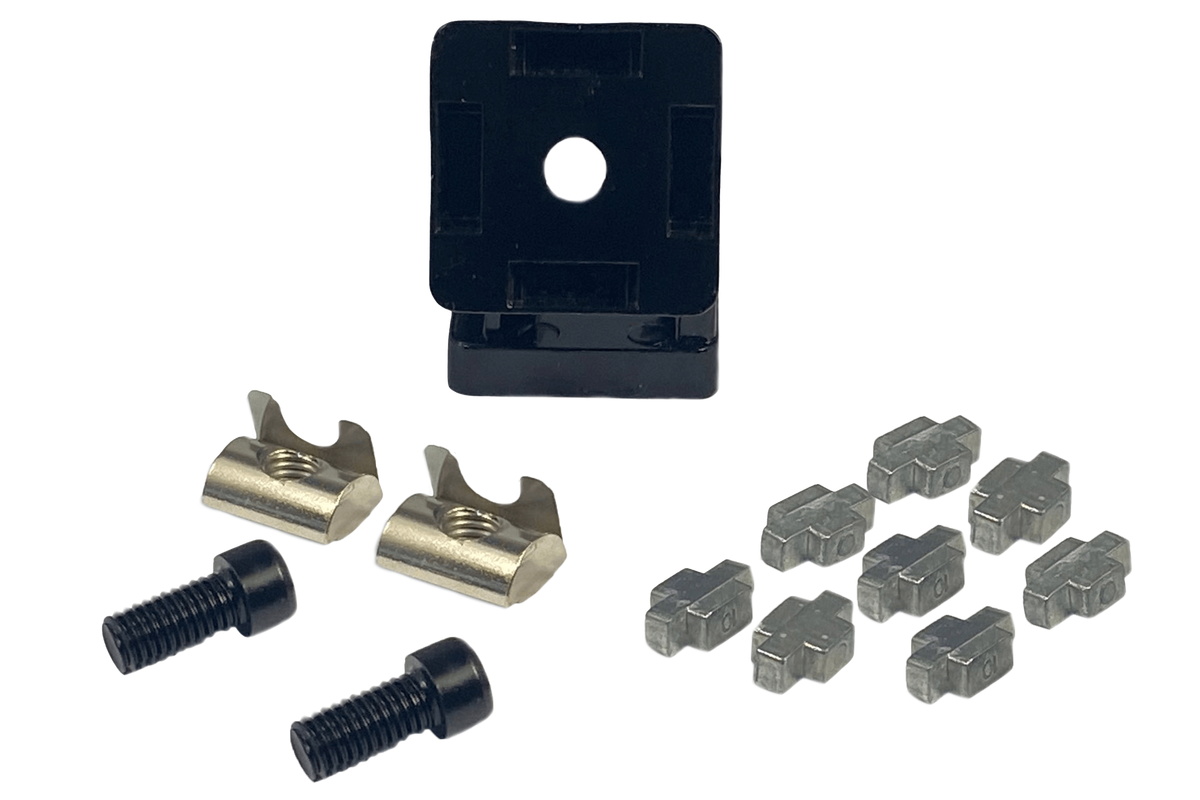

This pivot joint connector joins two 40-series aluminium profiles at any angle through 180 degrees, so you can build angled braces, screen arms and custom mounts.

It is made of durable zinc alloy and fits 4040 profile with an 8 mm slot.

Use it to repair, extend or customise our profile cockpits and other extrusion rigs.

Who the 40x40 pivot joint connector is for

DIY builders:

• Profile rig owners adding angled parts
• Custom monitor and accessory mounts

Features in detail

180° hinge

Any angle.

Zinc alloy

Durable.

4040, 8 mm slot

Standard fit.

Compatibility

Rigs: our aluminium profile cockpits (NexusRig Fortress, Formula Hybrid, Titan, Vanguard, Sprint, Rookie, NexusHaul Truck) and other 8 mm T-slot extrusion rigs.

Mounting on aluminium profile rigs

The 8 mm slot standard. Most modern sim rigs use 40 mm-based aluminium extrusion (40x40, 40x80, 40x160) with 8 mm slots. Mounts fix with M8 bolts and T-nuts that slide into the slot, so they can be moved and re-angled at any time.

Rigidity and access. Mount heavy or high-force devices (handbrakes, shifters, wheel bases) as close to a vertical upright or cross member as possible. Leave room to get in and out of the seat.

Tools. A set of hex keys (mainly 6 mm for M8) covers nearly every mount. Snug every bolt, test, then do a final tightening once the position is right.

Setup and use

1. Fit the joint halves to each profile with T-nuts.
2. Set the angle.
3. Tighten the pivot bolt.

Care and maintenance

Retighten the pivot after adjusting.

Specifications

What's in the box

• Pivot joint connector

Shipping, returns and warranty

Shipping

Shipping is free on orders worldwide. Orders are prepared and dispatched within 1–3 business days and typically arrive within 4–8 business days in total, with tracking sent by email. Large items such as cockpits, seats and monitor stands can ship in several boxes, customs or public holidays can occasionally add a few days, and some items ship directly from our supplier.

Returns

You have 14 days from delivery to return the product for a refund, for any reason. It must be new, unused and in its original packaging with all accessories and documents. Contact us at metanexusxr@gmail.com with your order number to start the return.

Warranty

Products bought from our store are covered by a 2-year limited warranty against manufacturing defects. If anything goes wrong, email us your order number and a short description or photo and we will handle the claim with you.

Frequently asked questions

Does it fit 80x40?

Yes, on any 40 mm face with an 8 mm slot.

Does it lock?

Yes, tighten the pivot bolt.

Are T-nuts included?

Check the photos; extra T-nuts are in our spare parts.

How long does delivery take?

Shipping is free worldwide. Orders are dispatched within 1–3 business days and usually arrive within 4–8 business days in total, with tracking by email.

Can I return it if it is not right for me?

Yes, within 14 days of delivery, as long as it is new, unused and in its original packaging. Email metanexusxr@gmail.com with your order number to start a return.

Is it covered by a warranty?

Yes, a 2-year limited warranty against manufacturing defects on products bought from our store.
